Signage Display Mount Vision VFM-VW6X4/2

Name: Signage Display Mount Vision VFM-VW6X4/2 VFM-VW6X4/2
Brand: VISION
SKU: 4976296
Price: 195.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Signage Display Mount Vision VFM-VW6X4/2 2.18 m Black 70 kg

Signage Display Mount Vision VFM-VW6X4/2 Photo 1

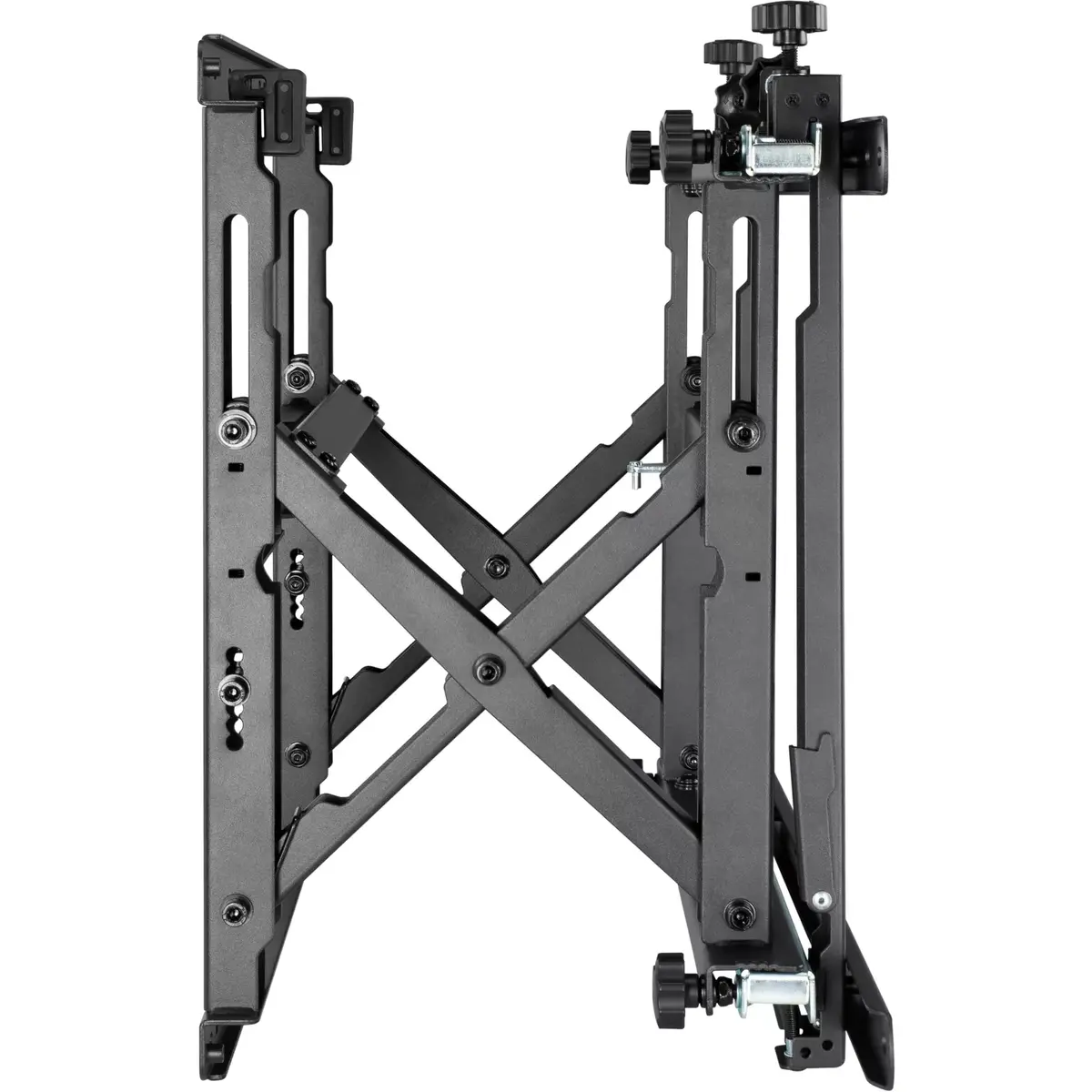

Signage Display Mount Vision VFM-VW6X4/2 Photo 2

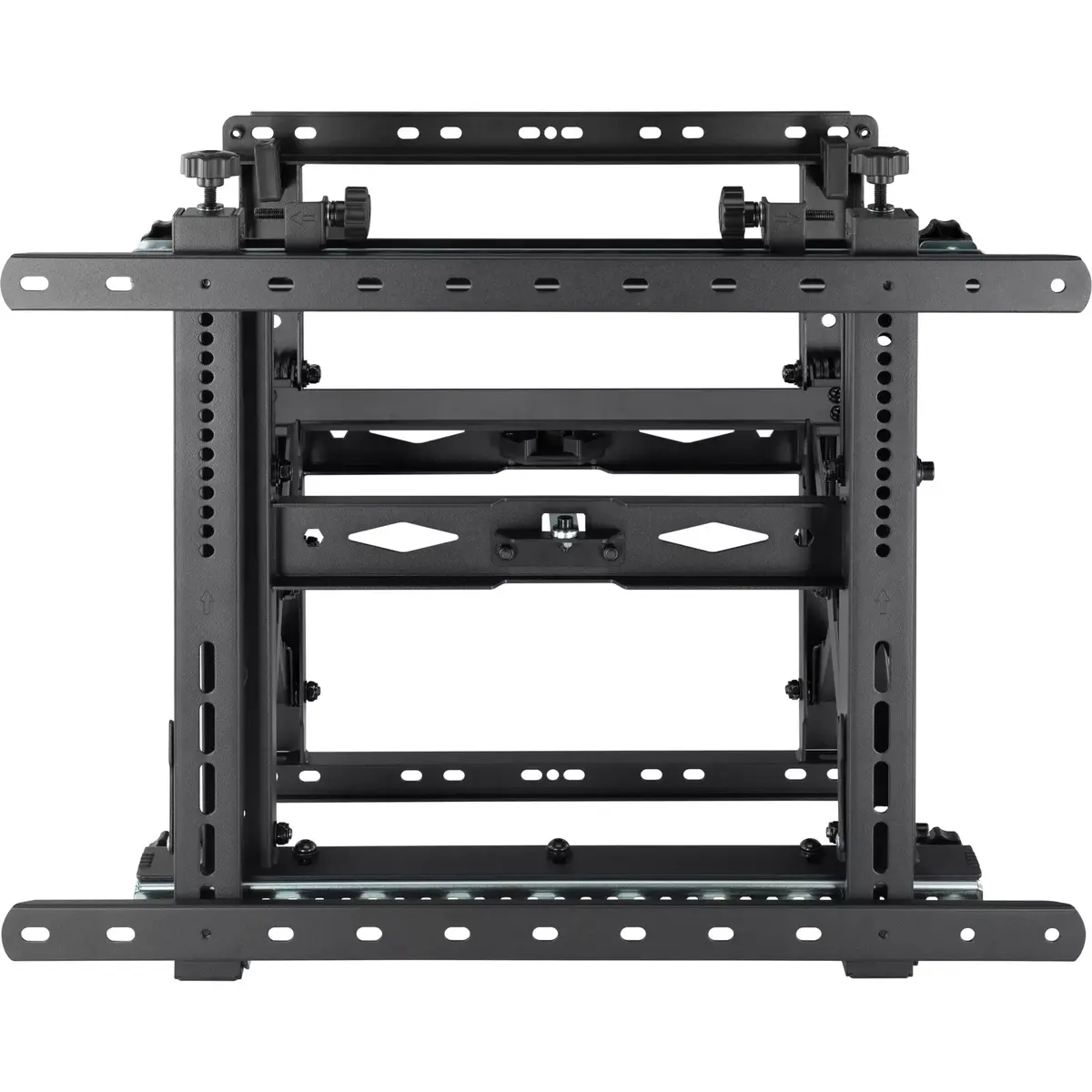

Signage Display Mount Vision VFM-VW6X4/2 Photo 3

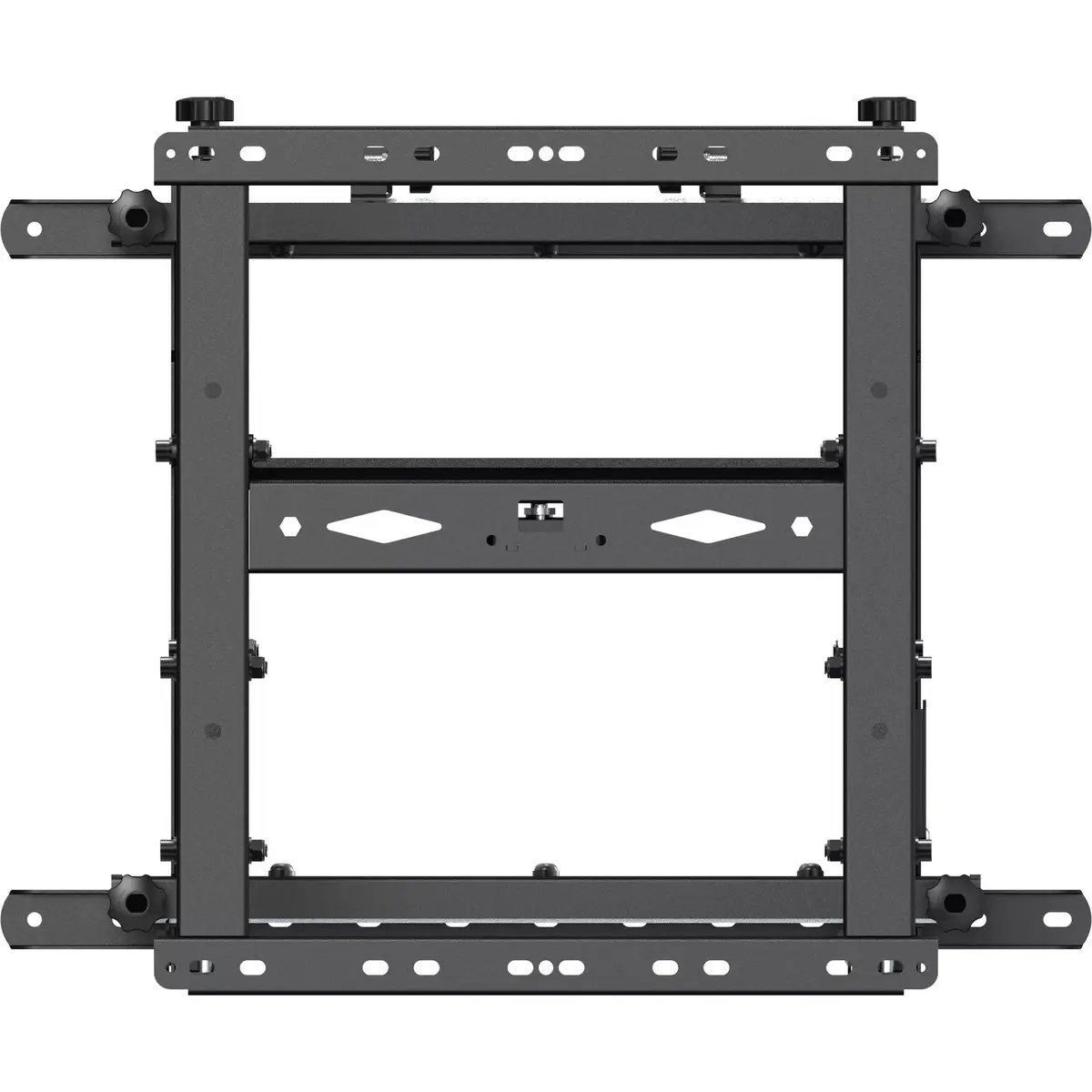

Signage Display Mount Vision VFM-VW6X4/2 Photo 4

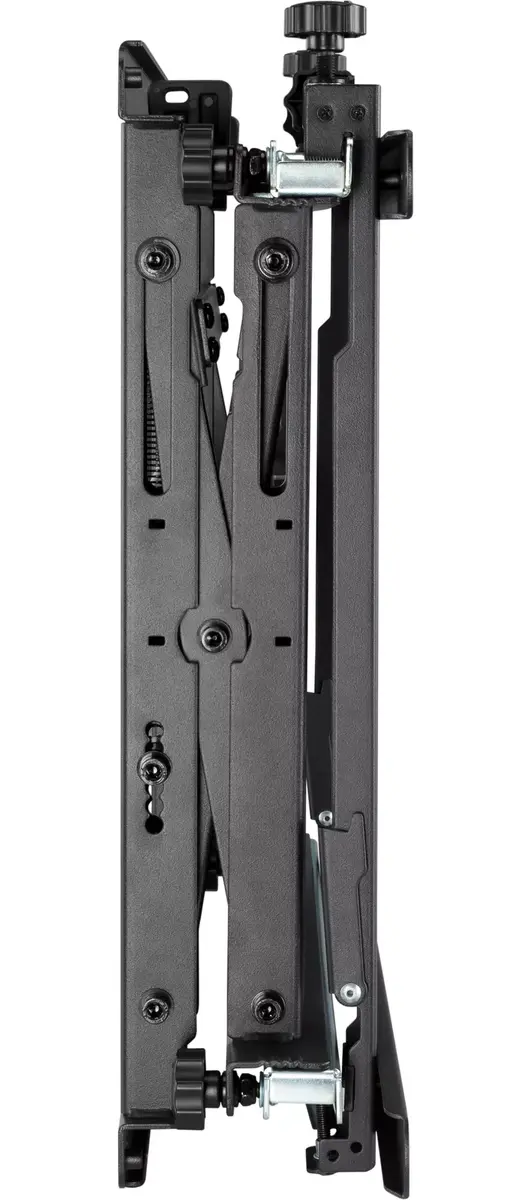

Signage Display Mount Vision VFM-VW6X4/2 Photo 5

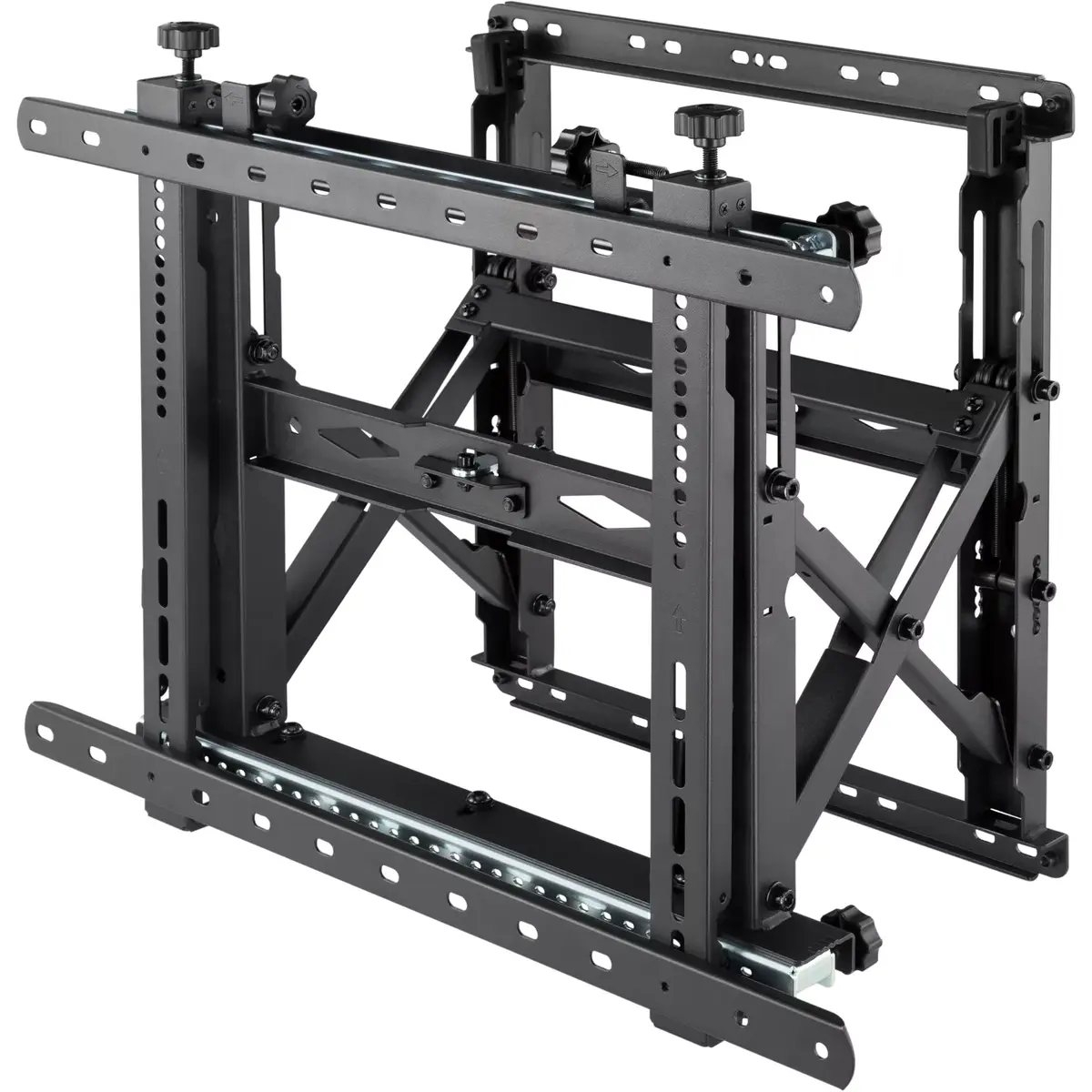

Signage Display Mount Vision VFM-VW6X4/2 Photo 6

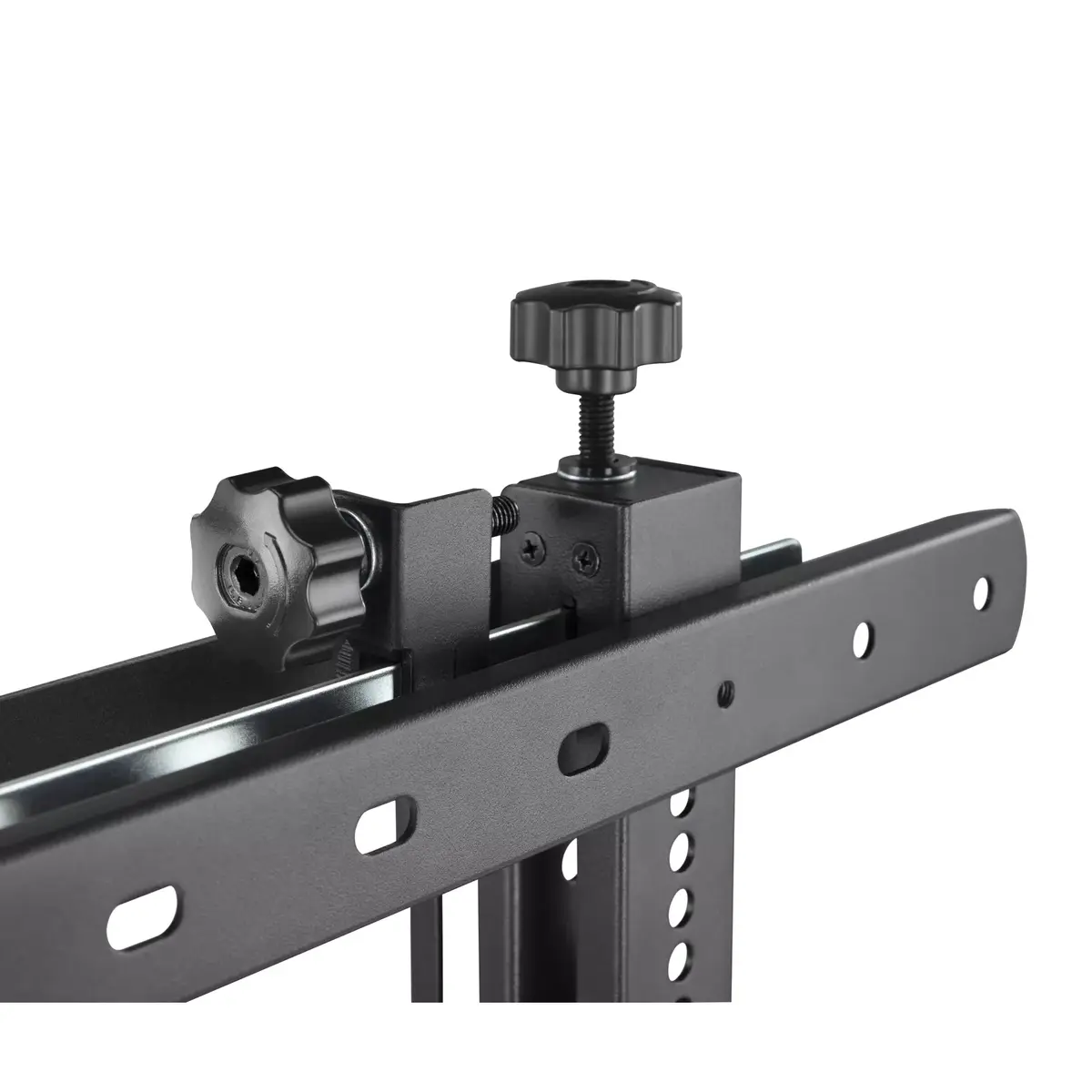

Signage Display Mount Vision VFM-VW6X4/2 Photo 7

Signage Display Mount Vision VFM-VW6X4/2 Photo 8

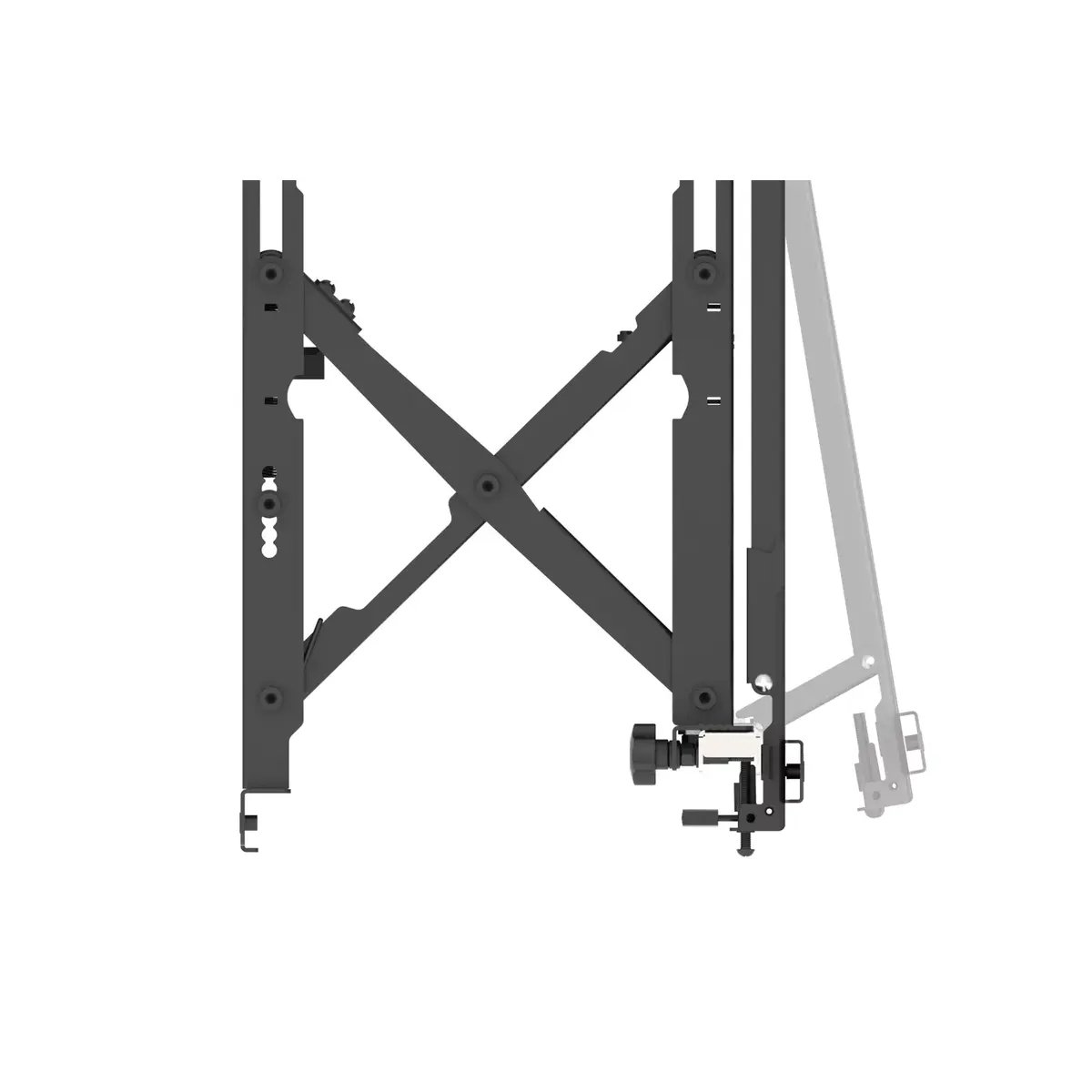

Signage Display Mount Vision VFM-VW6X4/2 Photo 9

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Vision VFM-VW6X4/2 signage display mount supports screens from 45" to 86" with a maximum weight capacity of 70 kg. It features a tilt angle range of -2 to 3° and accommodates VESA mounts from 200 x 200 mm to 600 x 400 mm. The sleek black design makes it suitable for various environments.

Available at price 195.49 €: 108 pcs.

Total available for order: 216 pcs.

Warranty: 2 Years

SKU: 4976296

Manufacturer: VISION

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

22.07.2026 {{selectedOffer.courierDeliveryString}}

From 11.92 € (Weight: 14.90 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Locker LV / Latvijas Pasts nodaļa

22.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Vision VFM-VW6X4/2 signage display mount is designed for fast, precise installation and easy ongoing service of video wall screens. It supports flat-panel LCD or LED displays from 45" to 86" with rear mounting holes up to 600 x 400 mm and a maximum load of 70 kg. The mount provides tool-free micro adjustment and rear access for maintenance.

Advantages

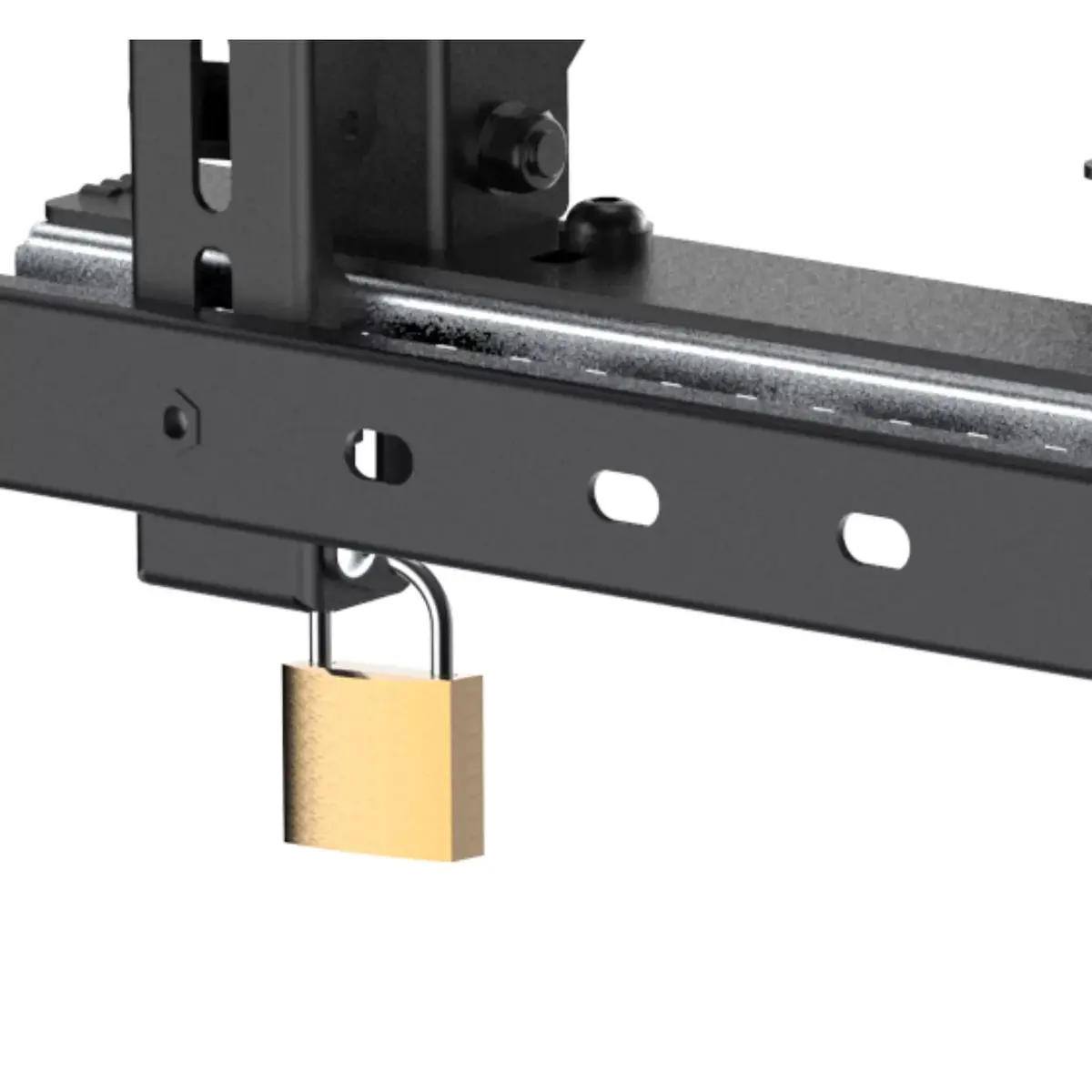

The mount includes a pop-out quick-release that pushes the display forward for simple removal and servicing, and plastic safety tongues to prevent accidental pop-outs when panels are returned to position. A built-in kickstand holds the display at a 10° angle when pulled out to give clear access to cable ports. Hand-turnable adjustment dials and thumbscrews reduce the need for tools and speed up alignment; adjustments can also be driven with a hex bit in a power drill for faster setup. The unit latches and can be secured with a padlock (not included) for extra security. Vision supplies a wide range of display fixing screws to fit different panels.

Suitable for

Commercial video walls in retail, hospitality, or control-room environments
Corporate signage and digital menu boards
Situations requiring frequent access to rear ports for maintenance or cabling

Key specifications

Model: Vision VFM-VW6X4/2
Supported screen size: 45"–86"
Maximum VESA: 600 x 400 mm (supports 200 x 200 mm and other sizes within this range)
Maximum load capacity: 70 kg
Tilt adjustment: -3° to 2° (hand-adjustable)
Portrait compatibility: allowed if display width > 650 mm and VESA ≤ 400 x 400 mm
Installed depth (minimum): 120 mm; pop-out depth: 325 mm
Product weight: 13.2 kg
Colour: Black

How to use

Mount the bracket to the wall following the VESA and weight guidelines, attach the display using the supplied selection of fixing screws, then hang the display on the mount. Use the hand-adjustable dials and thumbscrews to fine-tune height, rotation, depth and tilt; adjustments can also be turned with a hex bit for speed. To service the rear of a panel, press the display to release the scissor pop-out mechanism and pull the display forward; engage the kickstand to hold it at approximately 10° while you work. After service, place the plastic safety tongues to prevent accidental pop-outs and lock the latch with a padlock if needed.

Usage recommendations

Check the display's VESA pattern and weight before installation, use the supplied screws that match your display's mounting holes, and secure the mount with appropriate wall fixings for the substrate. Avoid exceeding the 70 kg load limit and follow local regulations for permanent installations.

Specifications

Maximum VESA mount:: 600 x 400
Maximum weight capacity:: 70 kg
Weight:: 13.2 kg
Maximum screen size:: 86 "
Product colour:: Black

All features

Features

Product colour:: Black
Tilt angle range:: -2 - 3

Mounting

Maximum weight capacity:: 70 kg
Panel mounting interface:: 200 x 400, 500 x 400, 400 x 300, 400 x 400, 400 x 200, 300 x 300, 300 x 400, 300 x 200, 200 x 200
Mounting type:: Wall
Minimum screen size:: 45 "
Maximum screen size:: 86 "
Minimum VESA mount:: 200 x 200
Maximum VESA mount:: 600 x 400

Technical details

Orientation:: Landscape/Portrait
Quantity per pack:: 1 pc(s)
Compliance certificates:: RoHS, REACH

Ergonomics

On/off switch:: No

Weight & dimensions

Weight:: 13.2 kg
Height:: 640 mm
Width:: 544 mm
Depth:: 120 mm
Height adjustment:: Yes

Packaging data

Package weight:: 15100 g
Package depth:: 135 mm
Package height:: 585 mm
Package width:: 566 mm

Design

Housing material:: Steel
