Vogel's TVM 3845 TV Mount 55-100 inch 55 kg Black

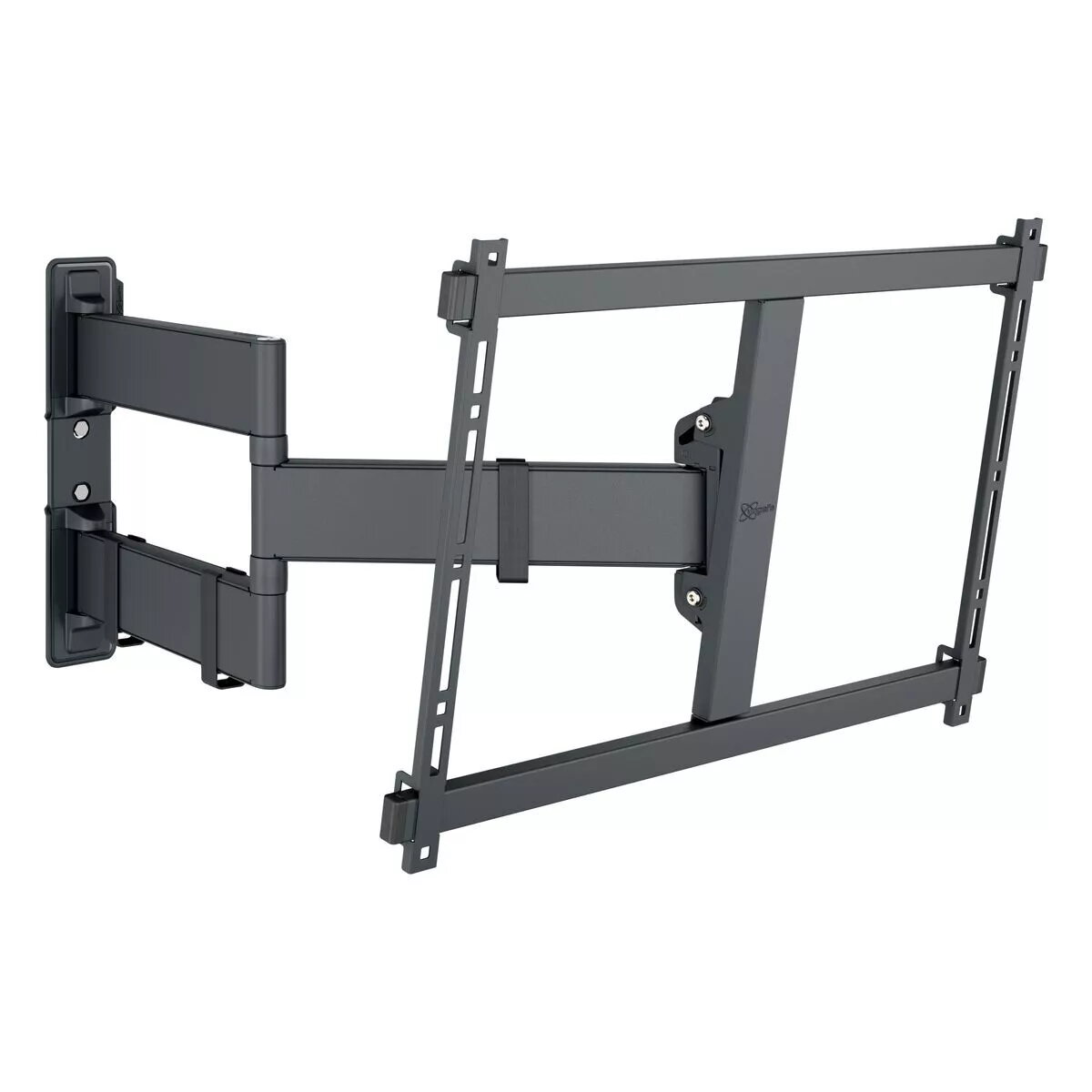

The Vogel's TVM 3845 Full-Motion+ TV wall mount is designed for flat-panel TVs from 55 to 100 inches and supports up to 55 kg. The mount provides a wide swivel range (up to 180° depending on TV size) and tilt of up to 10° to optimise viewing angles. With ultra-long arms the screen can extend to 66.9 cm from the wall and retract to 6 cm. The product is TÜV tested, passes endurance tests and comes with a 10-year guarantee. The mount is supplied with installation accessories including screws, fischer® DuoPower plugs, a drilling template, cable clips, a spirit level, and soft protective patches, plus digital guidance in the form of a Quick Installation Guide and the DrillRight app.

Advantages

The mount features Vogel's One-Finger™ Movement for smooth single-finger adjustment via special bearings and axles, ultra-long arms for a wide turning angle, and an adjustable distance from the wall between 6 cm and 66.9 cm. TÜV certification and endurance testing (including 5,000 full turns) ensure reliable and safe mounting up to the specified 55 kg capacity. A 10-year guarantee and included installation kit reduce the need for extra purchases.

Suitable for

• Flat-panel TVs with screen sizes from 55" to 100"
• TVs with a maximum weight of 55 kg
• VESA mounting patterns from 100 x 100 mm to 600 x 400 mm

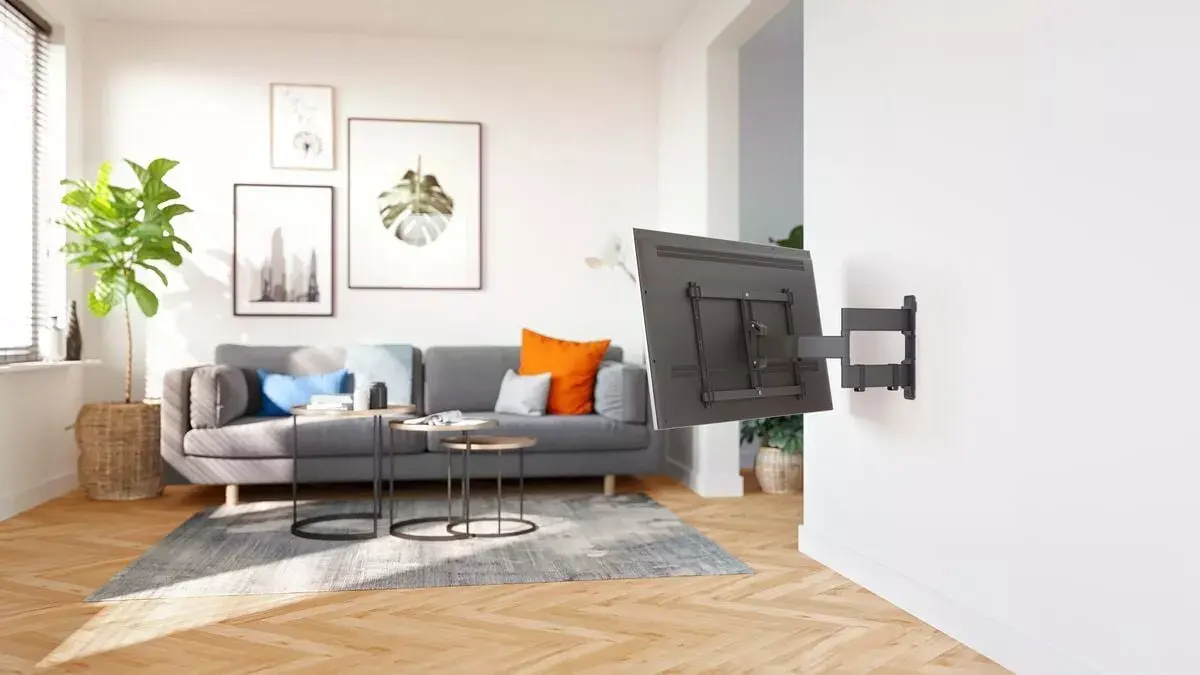

• Rooms where wide swivel and flexible viewing angles are required (living rooms, media rooms)

Key specifications

• Model: Vogel's TVM 3845 (MPN 3838450, EAN 8712285363375)
• Screen size compatibility: 55–100 inches
• Maximum load: 55 kg
• Swivel range: up to 180° (depends on TV size)
• Tilt range: up to 10°
• Wall distance: 6 cm (retracted) to 66.9 cm (fully extended)
• VESA compatibility: 100 x 100 mm to 600 x 400 mm
• Certification: TÜV tested; endurance tested for 5,000 full turns

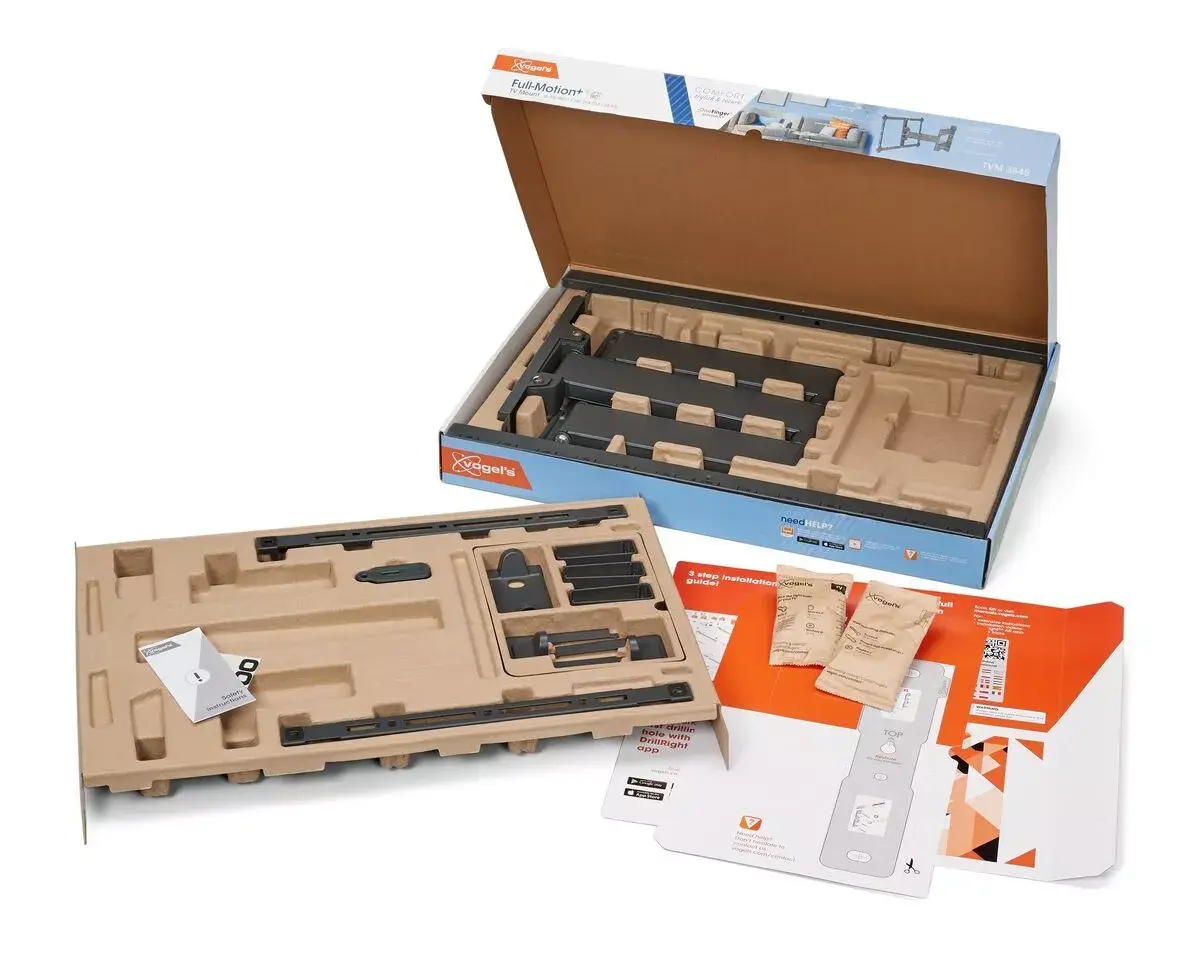

• Included: screws, fischer® DuoPower plugs, drilling template, cable clips, spirit level, soft protective patches, Quick Installation Guide, DrillRight app guidance
• Guarantee: 10 years

How to use

Attach the wall plate to a suitable load-bearing wall following the Quick Installation Guide and using the included drilling template and fischer® DuoPower plugs. Fix the mounting arms to the TV using the appropriate VESA holes and screws supplied. Use the DrillRight app or spirit level to mark and align drill points, then hang the TV on the wall plate and secure it. Adjust tilt and swivel to the desired viewing angle using One-Finger™ Movement and fine-tune horizontal alignment with the built-in adjustment mechanism. Protect the TV back with the supplied soft patches during installation.

Usage recommendations

Mount only on solid walls or suitably reinforced studs and ensure the combined weight of TV plus accessories does not exceed 55 kg. Follow the supplied instructions and safety warnings. For installations in apartment blocks or older buildings consult a professional if wall structure or load-bearing capacity is uncertain.
