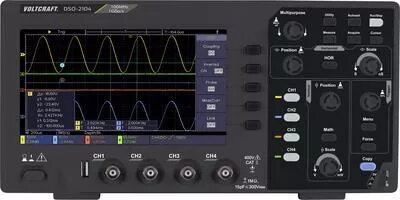

Digital Oscilloscope Voltcraft DSO-2104 — 100 MHz bandwidth, 4 channels

Voltcraft DSO-2104 is a digital oscilloscope with 100 MHz bandwidth and four input channels. It is intended for observing, measuring and comparing electrical signals in electronics development, repair and education. The instrument captures multi-channel waveforms, displays signal timing and voltage levels, and supports routine diagnostics with a familiar digital storage oscilloscope interface.

Advantages

The oscilloscope offers 100 MHz analog bandwidth, four independent channels and a 1 GSa/s sample rate (single-channel equivalent) for clear waveform capture. With 80 kpts memory depth and 8-bit resolution it enables detailed signal viewing and basic analysis. Compact tabletop design and straightforward controls allow efficient use in labs, workshops and classrooms.

Suitable for

• Electronics development and prototyping
• Device repair and fault diagnosis
• Educational laboratories and practical training
• Signal observation and timing measurements

Key specifications

• Bandwidth: 100 MHz
• Channels: 4
• Sample rate: 1 GSa/s (single-channel equivalent)
• Memory depth: 80 kpts
• ADC resolution: 8 bit
• Manufacturer: Voltcraft
• MPN: VC-11539895
• EAN: 4064161155227

How to use

Connect probe(s) to the input channel(s) and attach ground clips to the circuit reference. Adjust vertical scale and timebase to fit the waveform on screen, then set trigger level and mode to capture the desired event. Use autoset or manual controls for sensitivity and coupling, and capture multi-channel traces for comparison. Store or export waveforms as required for documentation or further analysis.

Usage recommendations

For safe and accurate measurements, use properly rated probes, observe grounding practices and avoid exceeding the instrument’s input limits. When measuring high-speed signals, choose appropriate probe compensation and sampling settings to preserve waveform integrity.
