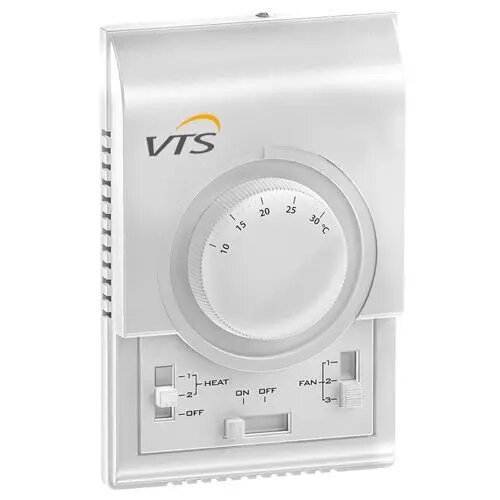

Wall controller VTS Wing/Volcano 1-4-0101-0438 — VTS wall-mounted control unit

The VTS Wall controller Wing/Volcano 1-4-0101-0438 is a wall-mounted control unit for managing HVAC systems in the VTS Wing and Volcano product families. It provides a local user interface for adjusting temperature setpoints, selecting operating modes and sending basic control commands to the connected system. The device is intended for professional HVAC installations that require a compact and accessible wall controller to manage room-level parameters.

Advantages

The wall-mounted controller offers straightforward local control with a compact form factor that fits standard installation locations. It enables direct adjustment of temperature and selection of operating modes without accessing the central controller, improving convenience for room occupants and maintenance personnel. Designed to integrate with VTS Wing and Volcano units, the controller supports consistent operation within those product lines and simplifies on-site commissioning and routine adjustments.

Suitable for

• Local temperature control in offices, meeting rooms and classrooms
• Room-level mode selection for VTS Wing and Volcano HVAC systems
• Retrofit or new professional HVAC installations requiring a compact wall interface
• Maintenance and commissioning tasks where on-site setpoint adjustment is needed

Key specifications

• Wall-mounted design suitable for standard interior installations
• Local user interface for temperature setpoint adjustment and mode selection
• Compatibility with VTS Wing and Volcano HVAC product lines
• Compact dimensions for accessible placement in occupied spaces

How to use

Install the controller on a standard interior wall at a recommended height to represent typical room conditions. Connect the device to the corresponding VTS Wing or Volcano system wiring following the system wiring diagrams and safety rules provided by the HVAC integrator or project documentation. Use the local interface to set the desired temperature and select the operating mode; changes take effect according to the connected system’s control logic. During commissioning, verify correct communication and response with the central system and adjust parameters as required.

Usage recommendations

Place the controller away from direct sunlight, heat sources and draughts to ensure accurate ambient temperature sensing. Ensure wiring and installation are performed by qualified HVAC technicians and verify compatibility with the specific VTS Wing or Volcano model in the installation before finalizing setup.
