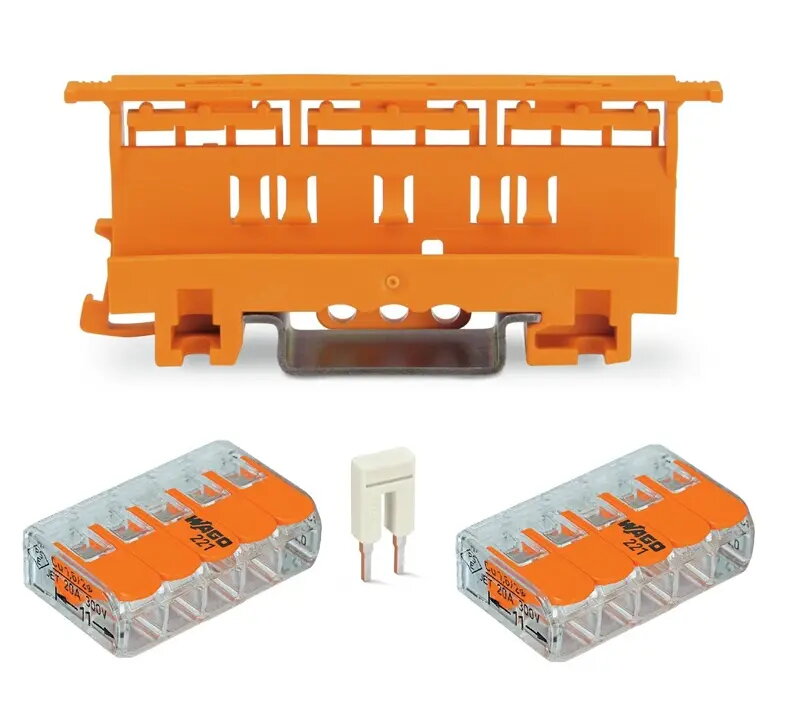

Wago 221-500/221-415/2 Connector Set with 2x 221-415 Compact Splicing Connectors, Carrier, and Jumper

The Wago 221-500/221-415/2 connector set provides a comprehensive solution for professional electrical installations, combining two 221-415 compact splicing connectors with a dedicated mounting carrier and a jumper. This system is engineered to streamline wiring tasks in junction boxes and control cabinets, offering a reliable method for connecting solid, stranded, and fine-stranded conductors. By utilizing the included carrier, users can achieve a clean and organized layout on DIN rails, while the jumper allows for efficient potential distribution across multiple connection points.

Advantages

This connector set stands out due to its versatility and ease of use in complex electrical environments. The compact design of the splicing connectors saves significant space, while the lever-operated mechanism ensures that conductors are securely held without the need for specialized tools. The inclusion of a mounting carrier and jumper simplifies the process of managing multiple circuits, reducing installation time and minimizing the risk of loose connections. Its robust construction ensures consistent electrical contact, making it a dependable choice for both permanent and temporary wiring configurations.

Suitable for

• Electrical distribution in control cabinets
• Wiring within junction boxes
• Connecting solid, stranded, and fine-stranded conductors
• Projects requiring organized DIN rail mounting
• Applications needing potential distribution via jumpers

This set may not be suitable for high-power industrial applications exceeding 32 A or environments where voltage levels surpass 450 V. It is also not intended for use in areas with extreme moisture or direct exposure to harsh chemical elements unless housed in an appropriate protective enclosure.

Key specifications

• Maximum voltage: 450 V
• Maximum current: 32 A
• Number of connecting wires: 8
• Mounting type: DIN rail
• Color: Orange

To use this set, first secure the mounting carrier onto the DIN rail. Insert the 221-415 splicing connectors into the carrier until they click into place. Open the orange levers on the connectors, insert the stripped conductors into the terminals, and close the levers to lock the wires securely. If required, attach the jumper to the connectors to bridge the electrical potential between them. Ensure all connections are fully seated and the levers are completely closed before applying power to the circuit.

What to consider before purchase

• Verify that the total current and voltage requirements of your project fall within the specified limits.
• Ensure the DIN rail type is compatible with the mounting carrier.
• Check the wire gauge compatibility of the 221-415 connectors to match your specific conductors.
• Consider the space available in your enclosure for the carrier and jumper assembly.

Always ensure that the power supply is disconnected before performing any wiring work and verify all connections for tightness to prevent overheating or electrical faults.
