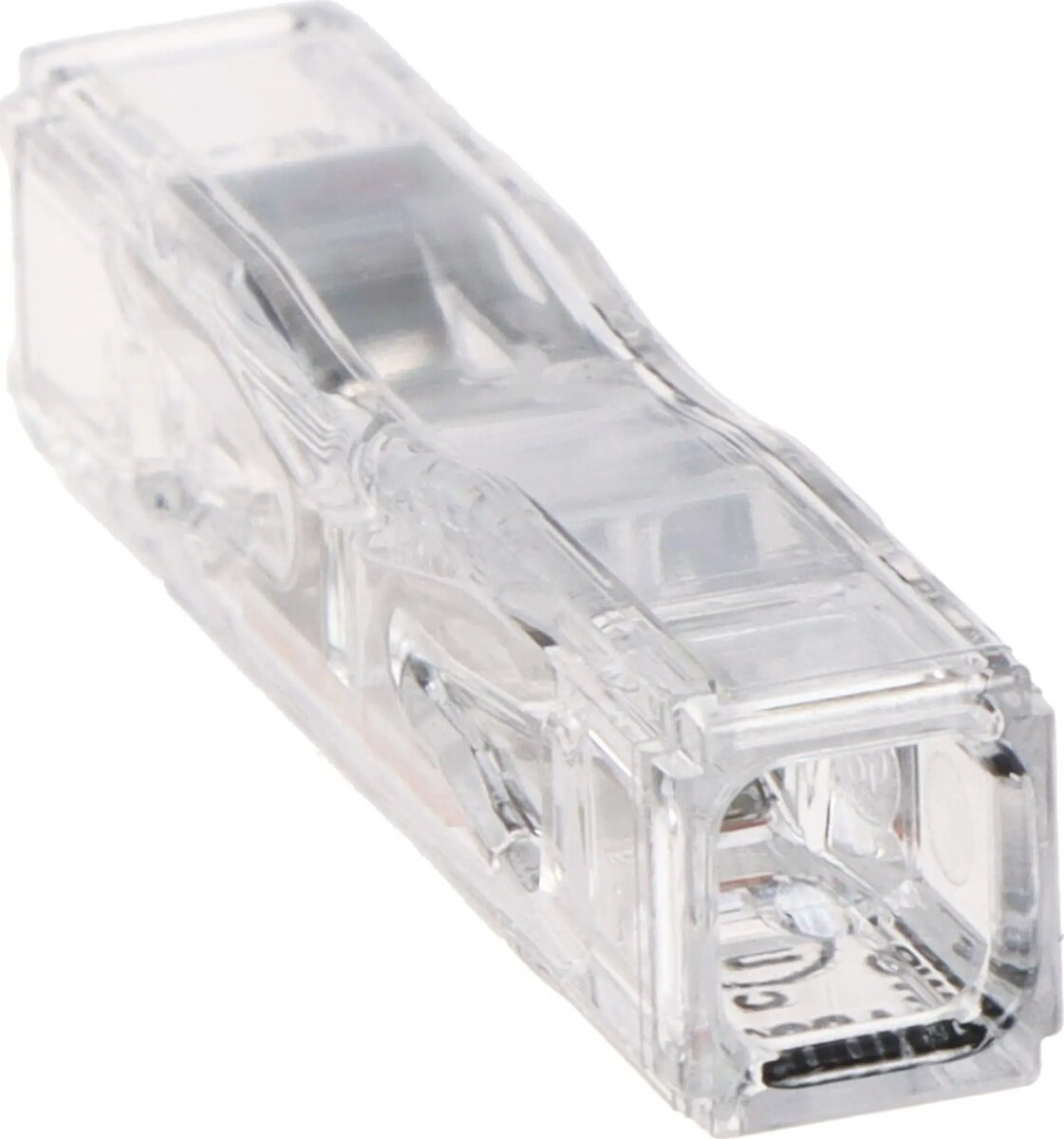

Terminal block connector Wago WAGO-2773-2401*P6 for electrical through connections

Wago WAGO-2773-2401*P6 is a through terminal block connector engineered for secure electrical through-connections and compact conductor joining. Manufactured by Wago, this terminal block is intended for distribution and control circuits where reliable contact, straightforward wiring, and space-saving installation are required. The product supports panel wiring and junctions in industrial, commercial and residential electrical systems.

Advantages

The terminal block offers a compact footprint that reduces space in terminal strips and enclosures while maintaining reliable electrical continuity. Its design enables consistent, repeatable connections that simplify installation and maintenance. Constructed from materials selected for electrical insulation and mechanical stability, the connector provides stable clamping force and corrosion resistance appropriate for standard building and control system environments.

Suitable for

• Through-connections in distribution and control circuits
• Panel wiring and junction points in electrical cabinets
• Building installations for branch and through wiring
• Replacement or expansion of existing terminal strips

Key specifications

• Configuration: through terminal block for connecting conductors in-line
• Mounting type: DIN-rail compatible design for standard electrical enclosures
• Connection method: mechanical clamping suitable for solid and stranded conductors
• Electrical suitability: intended for low-voltage distribution and control circuits
• Construction: insulated housing with conductive clamping parts for safe termination
• Size and footprint: compact form factor to save space in terminal strips

How to use

Prepare conductors by stripping insulation to the recommended length, ensure ends are clean and free of damage, and insert each conductor into the corresponding opening of the through terminal block. Use the appropriate screwdriver or actuation tool to secure the clamp to the specified torque, confirming a firm mechanical and electrical connection. Mount the terminal block on the DIN rail or other compatible support, routing conductors to avoid sharp bends and ensure accessible wiring layout for inspection or service.

Usage recommendations

Use the terminal block within the rated voltage and current limits of the installation. Select conductor sizes compatible with the clamp and follow local electrical codes for grounding, protective devices and wire management. For long-term reliability, periodically inspect connections for tightness and signs of corrosion or overheating, and replace the terminal if mechanical damage or compromised insulation is observed.
