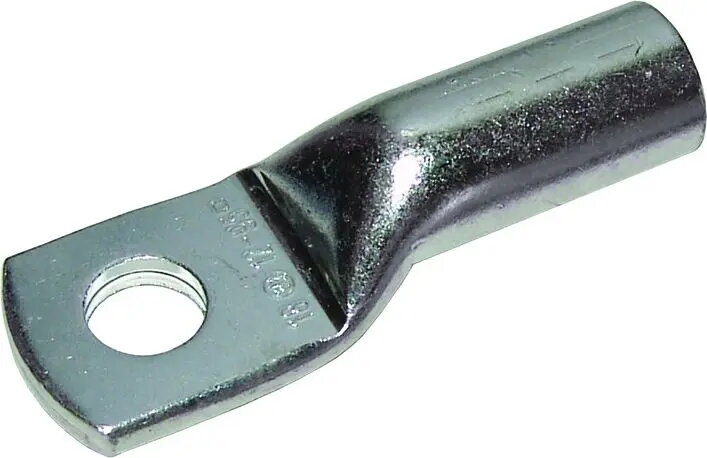

Weidmüller Non-insulated Ring Cable Lug 10mm² M6

The Weidmüller non-insulated ring cable lug is a professional-grade electrical component engineered for 10mm² conductors and M6 stud sizes. Designed for demanding industrial environments and control cabinet installations, this terminal provides a robust and permanent connection. Its high-quality material composition ensures optimal electrical conductivity and mechanical strength, making it an essential part of reliable wiring systems.

Advantages

This ring cable lug offers exceptional durability due to its high-grade construction, which resists mechanical stress and vibration. The non-insulated design allows for versatile installation options, particularly in environments where heat resistance or specific insulation methods are required. Its precise engineering ensures a secure fit on M6 studs, minimizing contact resistance and preventing potential electrical failures in critical power distribution circuits.

Suitable for

• Industrial control cabinet wiring
• Power distribution panels
• Heavy-duty electrical equipment connections
• Grounding applications

This product may not be suitable for applications requiring pre-insulated terminals for safety or color-coding purposes. It is also not intended for use in environments where the connection must be frequently disconnected or where specific environmental sealing against moisture is required without additional protective measures.

Key specifications

• Conductor cross-section: 10mm²
• Stud size: M6
• Material: High-conductivity metal
• Design: Non-insulated ring type

To use this cable lug, first strip the insulation from the 10mm² conductor to the appropriate length. Insert the conductor into the barrel of the lug and use a professional-grade crimping tool designed for non-insulated terminals to create a gas-tight connection. Ensure the crimping tool is set to the correct pressure for the 10mm² wire size to guarantee mechanical stability and electrical integrity before securing the lug onto the M6 stud with a suitable nut and washer.

What to consider before purchase

• Verify the conductor cross-section matches the 10mm² specification
• Ensure the M6 stud size is compatible with your existing hardware
• Confirm that your crimping tool is compatible with non-insulated ring lugs
• Assess if additional insulation, such as heat-shrink tubing, is required for your specific application

Usage recommendations

Always use a calibrated crimping tool to ensure the connection meets industrial standards for pull-out force and electrical resistance. Inspect the connection periodically for signs of oxidation or mechanical loosening in high-vibration environments.
