Handheld bar code reader Opticon OPR-3201

Name: Handheld bar code reader Opticon 11790
Brand: WENTRONIC
SKU: 1848988
Price: 20.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

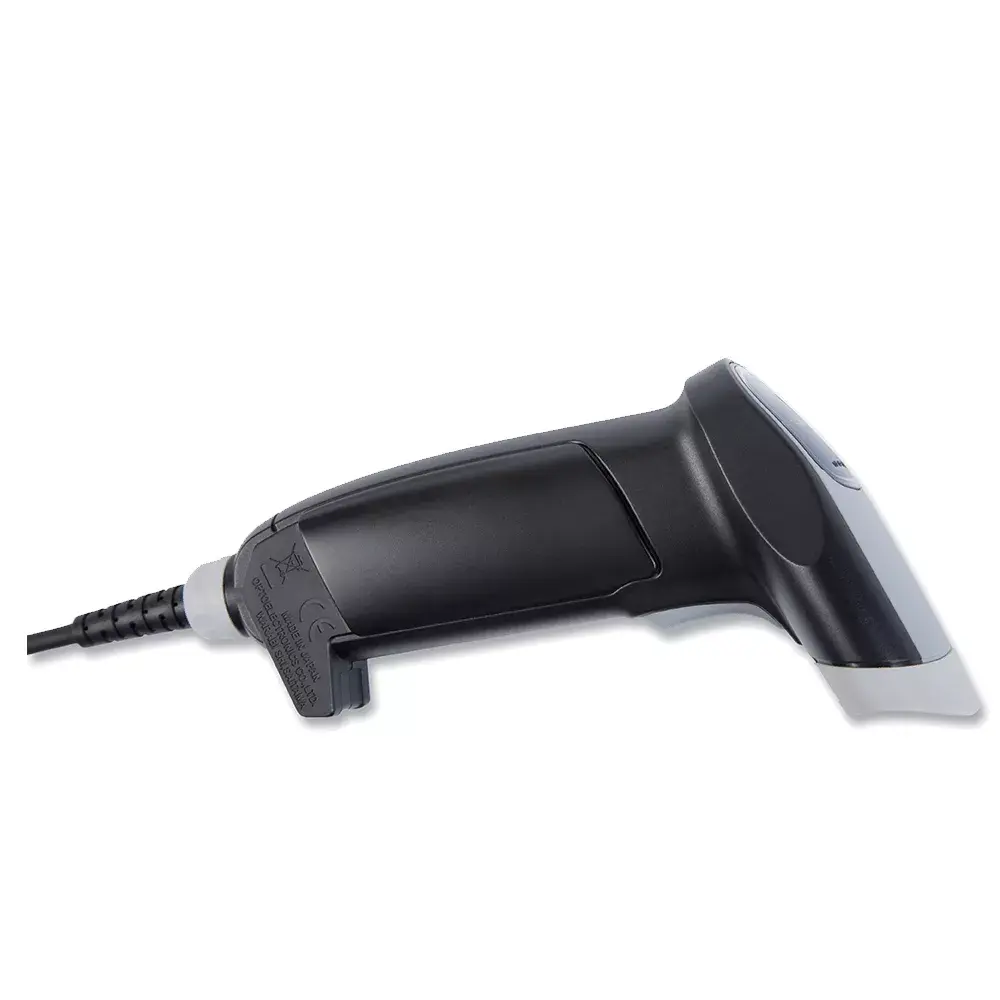

Handheld bar code reader Opticon OPR-3201 Photo 3

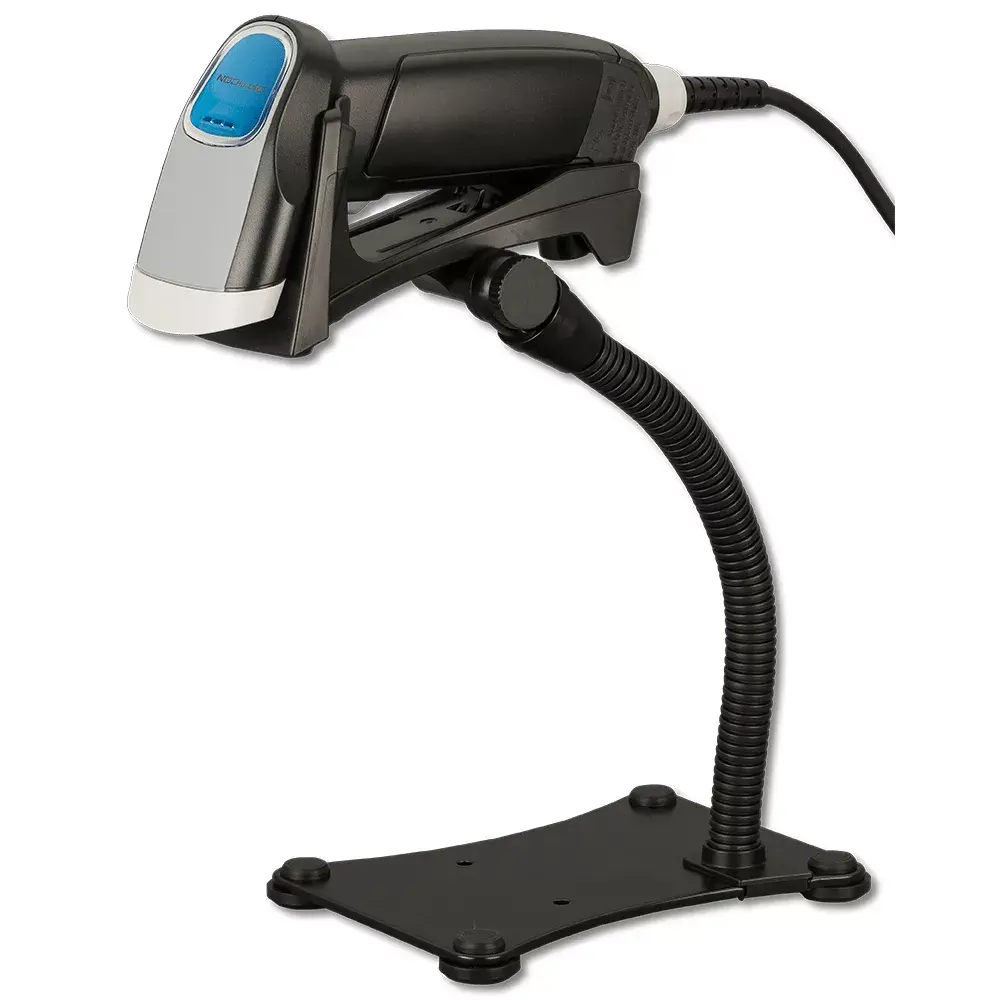

Handheld bar code reader Opticon OPR-3201 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Opticon OPR-3201 is a lightweight handheld bar code reader designed for 1D scanning. It features a laser sensor for accurate reading and offers wired connectivity options including RS-232 and USB. With an IP42 rating, it is protected against dust and water, making it suitable for various environments. Weighing only 80g and compact in size, it is easy to handle and operate, enhancing productivity in retail and inventory management.

Available for order: 404 pcs.

Warranty: 2 Years

SKU: 1848988

Manufacturer: WENTRONIC

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Unisend / DPD Paku skapis / Omniva / Latvijas Pasts pakomāts / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 2.49 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Opticon OPR-3201 is a lightweight handheld bar code reader designed for reliable 1D laser scanning. With plug-and-play functionality and wired connectivity (USB and RS-232), the scanner connects directly to host devices and is ready to use with minimal setup. The large pistol grip and well-balanced housing support easy aiming and extended use, while a complementary stand enables the scanner's auto-trigger for hands-free operation. The device weighs 80 g and is drop-resistant to 1.5 m; an IP42 rating provides basic protection against dust and water splashes.

Advantages

The OPR-3201 offers simple installation and immediate operation without technical configuration, reducing setup time. Its auto-trigger option and compatible stand allow both handheld and hands-free scanning. The comfortable larger grip and light weight improve ergonomics during repetitive scanning tasks. Wired RS-232 and USB interfaces ensure stable connectivity to POS terminals and PCs.

Suitable for

Retail product scanning at point of sale
Inventory counting and stock management
Ticket control and admission scanning at events
Administrative barcode entry in office environments

Key specifications

Model: Opticon OPR-3201
Scan type: 1D laser
Connectivity: USB, RS-232, keyboard wedge
Weight: 80 g
Drop resistance: up to 1.5 m onto concrete
Ingress protection: IP42
Colors available: black or white

How to use

Plug the OPR-3201 into a host device using the supplied USB or RS-232 cable (keyboard wedge option available). Once connected the scanner operates in plug-and-play mode and requires no additional drivers for basic use. For hands-free scanning, place the scanner in the compatible stand to enable the auto-trigger function. Aim the laser at the barcode and press the trigger or allow the auto-trigger to activate; hold steady until the barcode is read.

Usage recommendations

For reliable reading, keep the scanner window free of dust and avoid pointing directly into bright reflective surfaces. Use the stand when performing high-volume or stationary scanning to reduce operator fatigue. Ensure the host device port matches the supplied cable type for immediate plug-and-play operation.

Specifications

Scanner type:: 1D
Sensor type:: Laser
Read rate (max):: 100 reads/s
Connectivity technology:: Wired
Weight:: 0.08 kg
Linear (1D) barcodes supported:: Code 93, GS1-128 (UCC/EAN-128), Code 39, Code 128, Code 11
2D (matrix & stacked) barcodes supported:: MicroPDF417, PDF417
Product colour:: Black

All features

Scanning

Scanner type:: 1D
Sensor type:: Laser
Type:: Handheld bar code reader
Read rate (max):: 100 reads/s
Linear (1D) barcodes supported:: Code 93, GS1-128 (UCC/EAN-128), Code 39, Code 128, Code 11
2D (matrix & stacked) barcodes supported:: MicroPDF417, PDF417
Wavelength:: 650 nm
Yaw reading angle:: -50 - 50
Pitch reading angle:: -35 - 35
Tilt reading angle:: -20 - 20
Light levels (direct sunlight):: 3000 - 50000

Ports & interfaces

Connectivity technology:: Wired
Cable length:: 1.5 m
USB version:: 1.1
Standard interfaces:: USB, Keyboard wedge, RS-232
PC connection:: RS-232/USB

Performance

Product colour:: Black
LED indicators:: Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP42

Weight & dimensions

Weight:: 0.08 kg
Height:: 149 mm
Width:: 56 mm
Depth:: 109 mm

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -5 - 50

Hide Show all

Instructions

mmo_23104557_1498571661_6592_8216.pdf

Description

Instructions

mmo_23104557_1498571661_6592_8216.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Handheld bar code reader Opticon OPR-3201 cost, and is it available for purchase?

The price is 20.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 404 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 06.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All WENTRONIC products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized WENTRONIC service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: scanner type, sensor type, read rate (max), connectivity technology, weight, linear (1d) barcodes supported, 2d (matrix & stacked) barcodes supported, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Handheld bar code reader Opticon OPR-3201?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
