Microphone Plug Goobay XLR male 5-pin

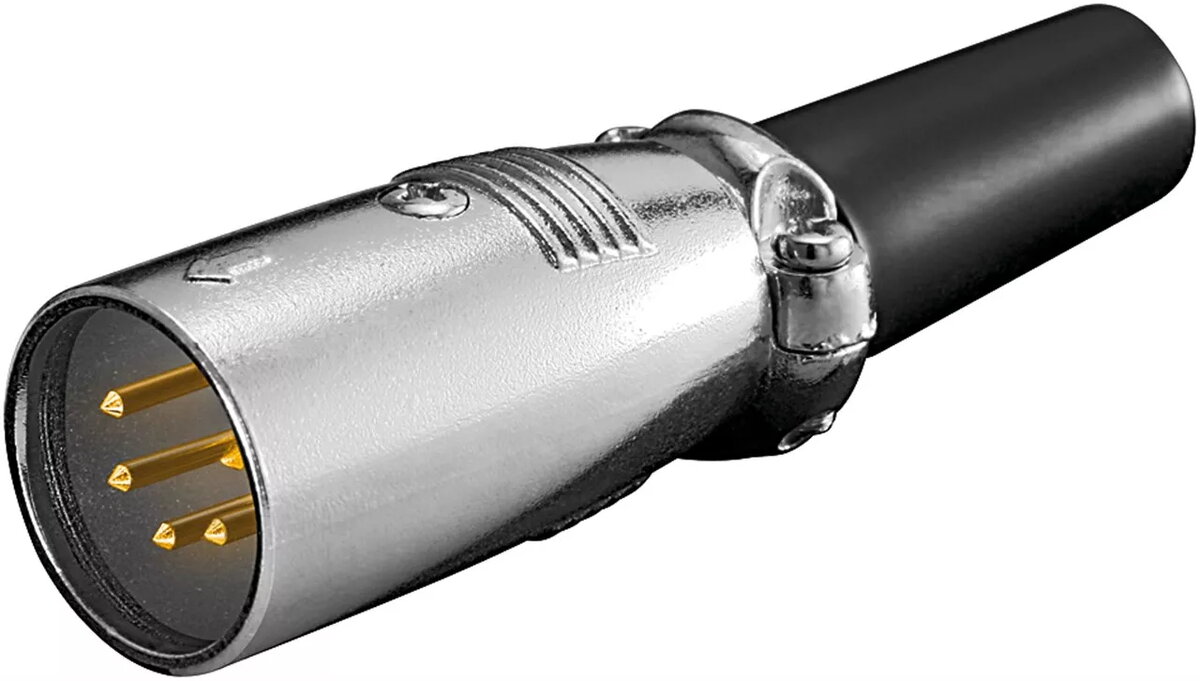

The Goobay Microphone Plug XLR male 5-pin by WENTRONIC is a compact audio connector designed for professional and semi-professional microphone connections. Its robust black and metallic housing provides mechanical durability, while the 5-pin XLR configuration supports multi-channel microphone or balanced line connections. With an outer diameter of 1.82 cm and a depth of 63 mm, the plug occupies minimal space while maintaining secure contact and CE conformity for safe use in compliant installations.

Advantages

This 5-pin XLR microphone plug combines a sturdy metal shell with a precise contact layout to ensure long-lasting performance and reliable signal transmission. The compact dimensions make it easy to fit into crowded racks, consoles, or custom cable assemblies. The design reduces mechanical wear on mating connectors and offers consistent electrical contact for low-noise audio connections. CE conformity indicates that the product meets applicable European safety and electromagnetic compatibility requirements.

Suitable for

• Connecting microphones with multi-pin outputs to mixers, preamps, or interfaces
• Custom cable assemblies for stage, studio, and broadcast setups
• Replacement or upgrade of existing XLR-5 male connectors on cables and adapters
• Installation in compact or space-constrained audio equipment and patch panels

Key specifications

• Connector type: XLR male, 5-pin
• Housing: metal with black finish
• Outer diameter: 1.82 cm
• Depth (length): 63 mm
• Contact arrangement: 5-pin balanced/multi-channel configuration
• Standards: CE conformity

How to use

Strip the cable jacket and prepare individual conductors to the recommended lengths for solder or crimp termination according to the connector's assembly instructions. Insert the prepared conductors into the specified pin positions for the 5-pin XLR layout, secure contacts by soldering or crimping as appropriate, and assemble the housing to ensure strain relief and shielding continuity. After assembly, verify contact integrity and correct wiring with a continuity tester or audio check before placing the cable into service.

Usage recommendations

For reliable long-term performance, use appropriate cable types rated for balanced audio and maintain correct pin wiring for the intended application. Avoid excessive bending near the connector, and periodically inspect contacts and the housing for corrosion or mechanical damage. When installing in professional systems, confirm pin assignments with device documentation to ensure compatibility with multi-channel microphone or signal configurations.
