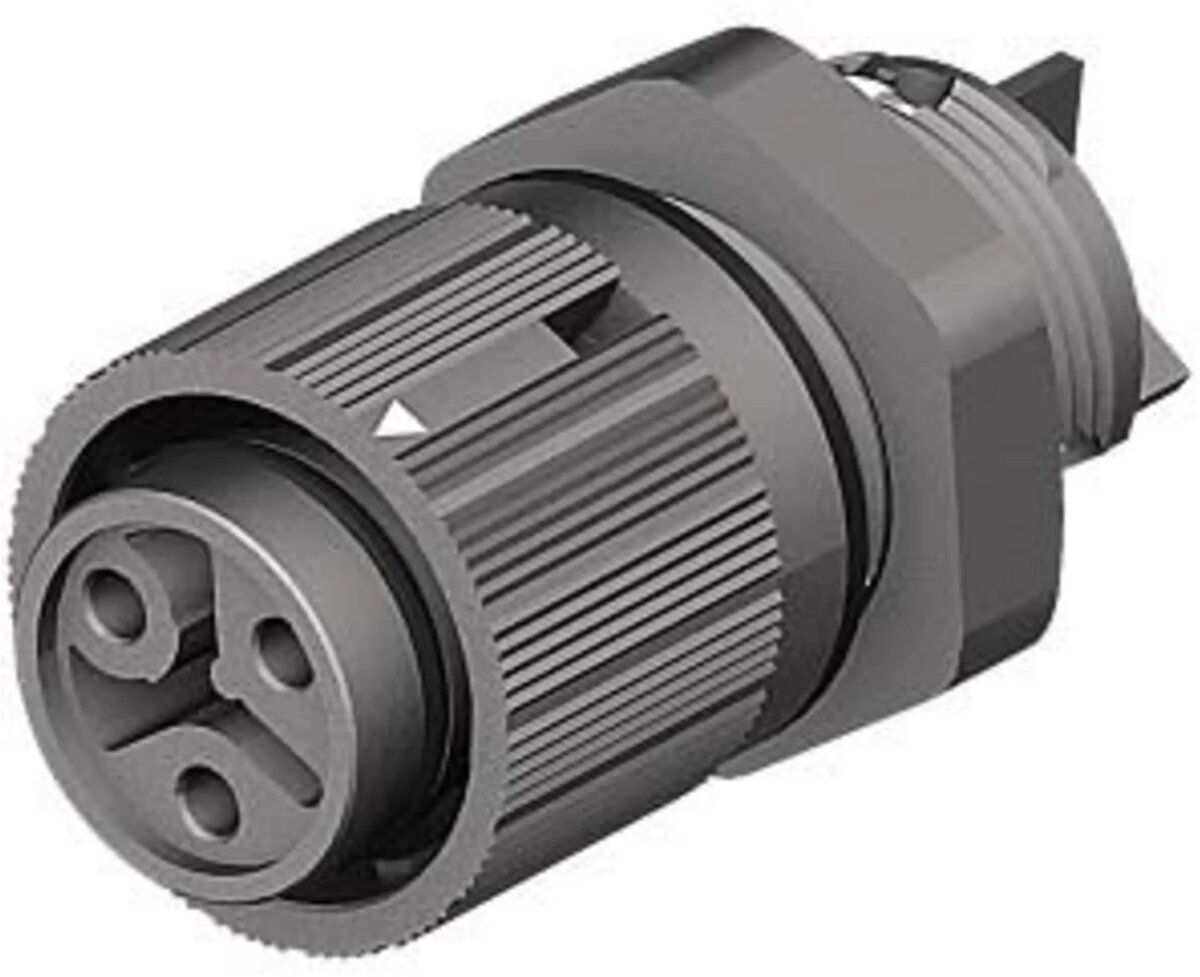

Panel-mount RST® MINI female insert Wieland RSTI16, M16 connection, model 46.031.5053.1

Wieland RST® MINI panel-mount female insert RSTI16 (M16 connection) is a compact circular connector insert designed for secure pluggable power and signal connections in confined installations. The unit is intended for mounting in machine panels, control cabinets and equipment housings where a small, robust interface is required. It accepts an M16 threaded cable or conduit entry and mates with corresponding RST® MINI male counterparts to form a reliable electrical connection.

Advantages

The panel-mount female insert offers space-saving design and straightforward mechanical installation for compact equipment. Its circular RST® MINI form factor simplifies alignment and mating while maintaining stable contact integrity under normal industrial conditions. The M16 threaded entry allows secure cable or conduit routing and strain relief options, and the insert is compatible with standard RST® MINI mating plugs, ensuring interoperability across devices that use the Wieland system.

Suitable for

• Machine panels and compact control units
• Control cabinets and distribution boxes with limited space
• Industrial devices requiring pluggable power or signal interfaces
• Applications needing an M16 cable or conduit entry

Key specifications

• Connector type: Panel-mount female insert for RST® MINI circular connector series
• Cable entry: M16 threaded connection for cable or conduit
• Mounting: Designed for flush installation in panels or equipment housings
• Application: Pluggable power and signal mating in compact assemblies
• Form factor: Compact circular insert suitable for tight installation spaces

How to use

Prepare the panel cut-out to the recommended diameter for the RSTI16 insert and secure the insert in the panel opening following the manufacturer's mounting method. Route the cable or conduit through the M16 threaded entry and terminate conductors as required by the mating contact system. Ensure correct orientation and alignment when mating with the corresponding RST® MINI male connector and verify the mechanical lock or engagement to maintain reliable contact. Observe electrical ratings and connection practices applicable to the installed system.

Usage recommendations

Use suitable strain relief or cable gland on the M16 entry to protect connections from mechanical stress. Confirm compatibility with the specific RST® MINI mating plugs and follow safety and grounding requirements of the installation. For panel sealing or environmental protection, select appropriate gaskets or sealing accessories compatible with the insert and panel material.
