Laser engraving machine xTool F1 — 2-in-1 compact design, high precision

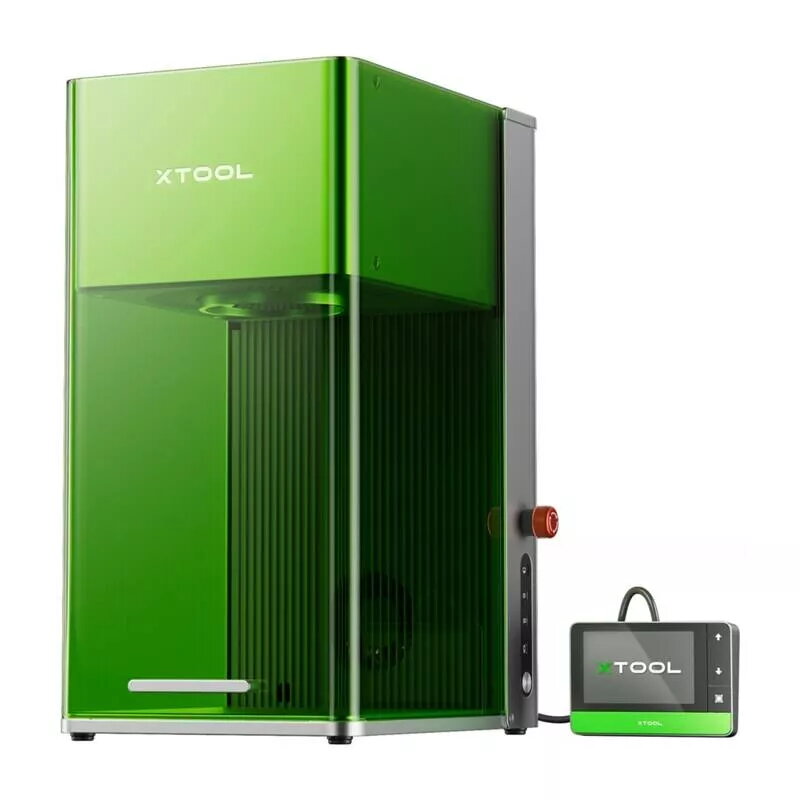

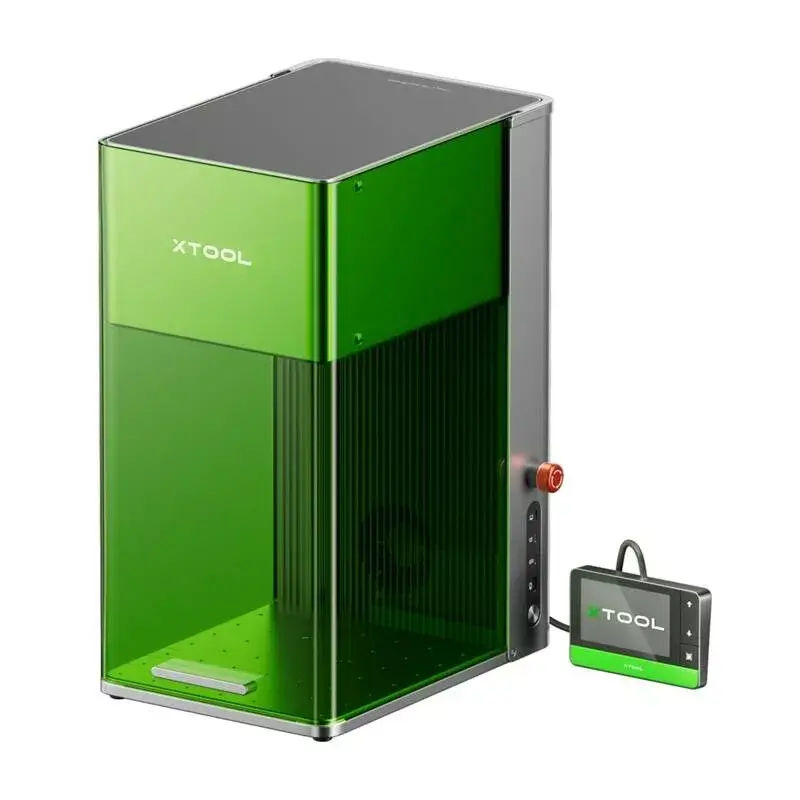

The xTool F1 Ultra is a 2-in-1 laser engraving machine that integrates a 20W fiber laser and a 20W diode laser in a compact desktop unit. It supports engraving and cutting on a wide range of materials, including metals, wood, leather, acrylic and many plastics. The device features a 220 × 220 mm working area (expandable to 220 × 500 mm with an automatic conveyor), a built-in 16 MP camera for automatic focus and preview, and maximum engraving speeds up to 10000 mm/s for fast and precise results.

Advantages

The dual 20W fiber and 20W diode laser configuration delivers precise, high-resolution engraving on both metals and organic materials while maintaining compact dimensions for desktop use. Automatic focus, camera preview and intelligent path planning reduce setup time and improve repeatability. The enclosed design, eye-protecting cover and integrated smoke extraction contribute to safer and cleaner operation. Software support for xTool Creative Space and LightBurn, plus Material EasySet™ presets for 500+ materials, simplifies parameter selection.

Suitable for

• Jewelry engraving and marking
• Personalization of gifts and promotional items
• Small-batch and mass production with conveyor integration
• Prototyping and maker projects requiring fine detail

Key specifications

• Manufacturer: xTool
• Model / MPN: P5010342
• Laser sources: 20 W fiber laser + 20 W diode laser
• Working area: 220 × 220 mm (expandable to 220 × 500 mm with conveyor)
• Max. engraving speed: 10000 mm/s
• Laser spot size: 0.08 × 0.1 mm (20W diode), 0.03 × 0.03 mm (20W fiber)
• Focus: Automatic focus with manual camera two-point alignment
• Preview: Built-in 16 MP camera, live fast preview (Rectangle: 24000 mm/s, Contour: 16000 mm/s)
• Software: xTool Creative Space / LightBurn
• Supported files: SVG, DXF, JPG, JPEG, PNG, BMP
• Connectivity: Wi‑Fi and USB
• Supported systems: Android, iOS, iPadOS, Windows, macOS
• Product size: 273 × 373 × 492 mm
• Weight: 14.7 kg
• Input: 25V 11A

How to use

Place the xTool F1 Ultra on a stable, level surface and connect the power adapter and appropriate data connection (Wi‑Fi or USB). Select or import your design in xTool Creative Space or LightBurn and choose a material preset via Material EasySet™ for recommended laser settings. Use the built-in camera to preview the layout and run automatic focus or perform the two-point manual camera alignment if required. For batch processing, attach the automatic conveyor belt to expand the working area and enable Auto Streamline™ for continuous production. Monitor the engraving process, ensure proper ventilation and extraction, and stop the job if any unexpected behavior occurs.

Usage recommendations

Use the fiber laser for metal marking and the diode laser for organic materials and plastics; always verify material compatibility and perform a small test cut or mark before full production. Operate the enclosed unit with the extraction system active, wear appropriate PPE if required for your workspace, and follow local safety rules for laser equipment.
