Smoke Canister xTool SafetyPro AP2 P5010391 — smoke cartridge for SafetyPro AP2

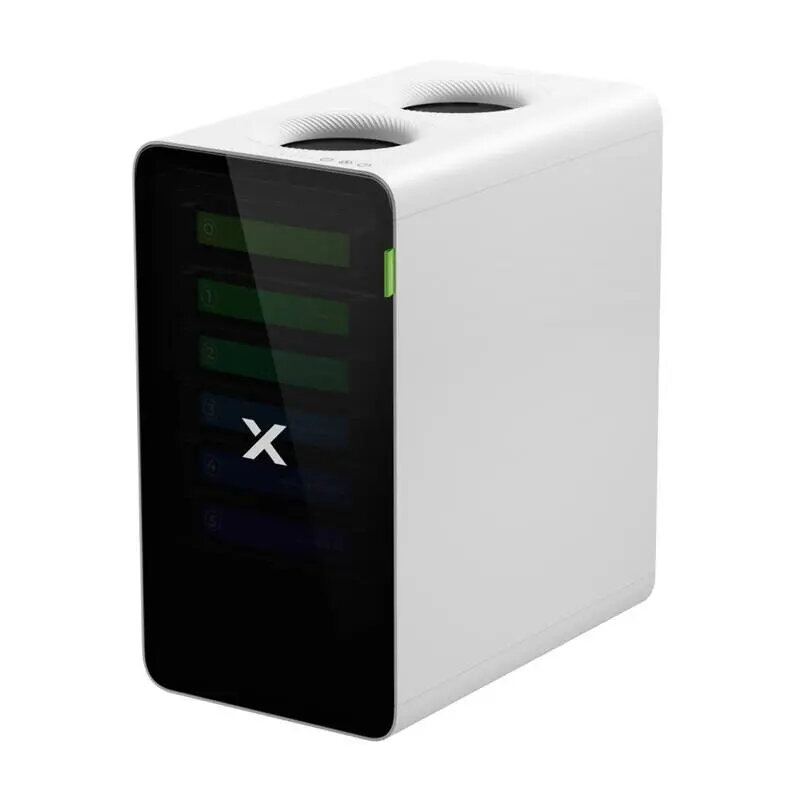

The xTool SafetyPro™ AP2 (model P5010391) is a smoke canister and filtration unit designed to maintain air quality when operating laser engravers and enclosed machines. It combines a compact, sealed housing with a three-stage filtration system to capture large particulates, microscopic particles down to 0.03 μm, and gases/odours. The unit is compatible with multiple xTool models and intended for tasks that require smoke removal, ventilation checks or controlled smoke output for system validation.

Advantages

The AP2 integrates a multi-layer filter stack including a SuperCyclone stage, pre-filter, medium-efficiency filter, activated carbon layers and a high-efficiency HEPA-like filter to reduce particulates and absorb harmful gases and odors. Its sealed design prevents leaks, the housing is compact and portable, and the touch-button control with four adjustable fan speeds allows flexible operation. Noise level is approximately 55 dB and rated power is 220 W.

Suitable for

• Laser engraving and cutting workstations (compatible with xTool P2S, P2, S1, M1 Ultra, F1 Ultra, D1, M1, F1 and enclosed D1/D1 Pro)
• Ventilation and smoke exhaust validation or sensor/alarm testing
• Workshops and small production areas requiring local air filtration

Key specifications

• Manufacturer: xTool
• Model / MPN: P5010391
• Product size: 290 × 491 × 542 mm
• Product weight: 20.7 kg
• Rated power: 220 W
• Noise level: 55 dB
• Control mode: touch button with four adjustable fan gears
• Pre-filtration: cyclone separation
• Filter layers: SuperCyclone filter, pre-filter, medium efficiency filter, activated carbon layer, extra dense carbon mesh, high efficiency filter

How to use

Place the AP2 canister near the laser enclosure or the location where smoke is generated and connect the smoke exhaust pipe and any required adapters. Power the unit using the supplied power cable, select the appropriate fan speed with the touch controls, and route the exhaust or inlet pipes as needed. For testing or controlled smoke output, install the P5010391 canister and follow the machine-specific instructions in the user manual for safe operation.

Usage recommendations

Replace the complete filter set according to the usage intensity or when airflow and odor removal performance decreases. Use the supplied pipe clamps, connectors and mounting accessories for secure installation. Follow local safety rules for ventilation when operating with combustive or odorous materials.
