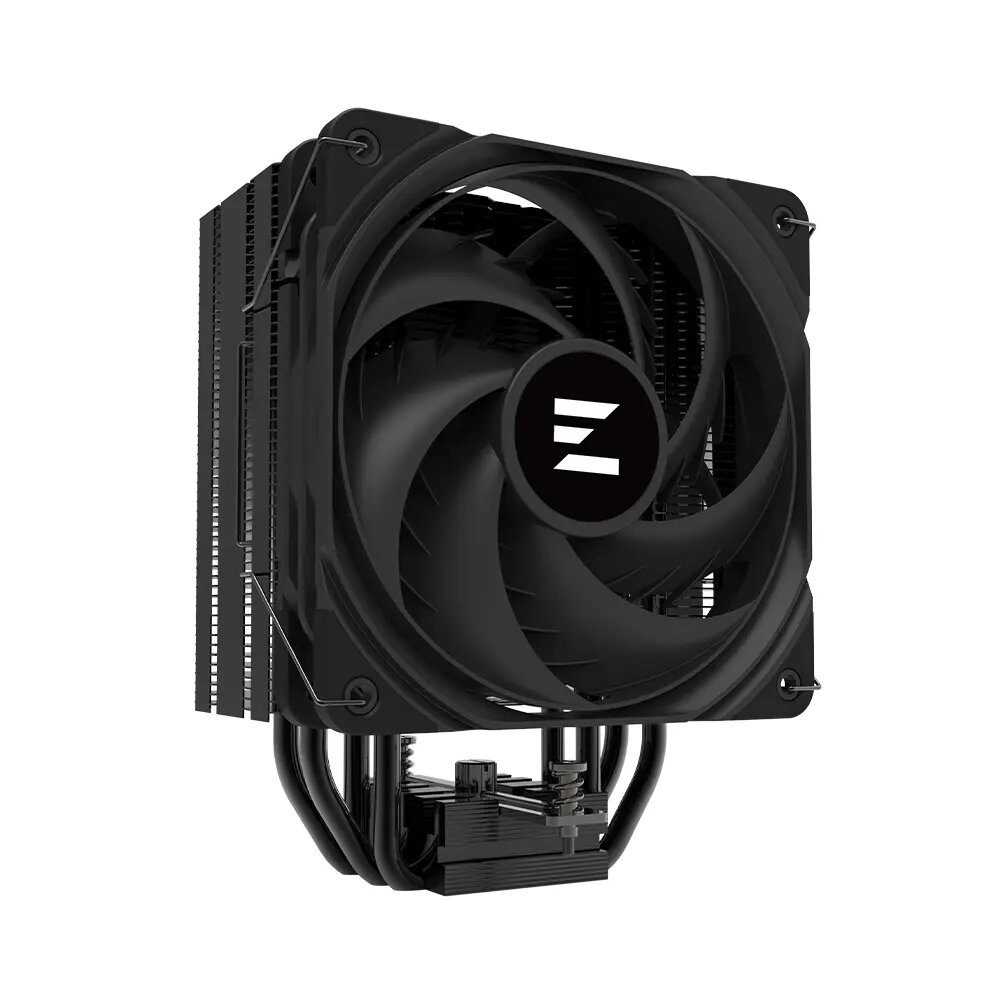

CPU Cooler ZALMAN CNPS9X Performa Plus 120mm Black — single-fan air cooler

The Zalman CNPS9X Performa Plus 120mm Black is an air CPU cooler designed for mainstream Intel and AMD platforms. It features a 120 mm annular-style fan with shark fin blades, four direct-touch heatpipes (DTH) and a combination of pure copper and pure aluminum materials to transfer and dissipate heat. The cooler supports current Intel sockets including LGA1851, LGA1700, LGA1200 and LGA115x as well as AMD AM5 and AM4, and is sized to fit most mid-tower systems.

Advantages

The design combines a 120 × 120 × 26 mm PWM-controlled fan with hydro bearing and anti-vibration rubber dampers to reduce noise and vibration while providing adjustable airflow. Four direct-touch heatpipes improve thermal contact with the CPU, and a heat dissipation surface area of 6,510 cm² along with pure copper and aluminum construction help maintain a rated cooling capacity up to 220 W TDP. The compact footprint (122 × 77 × 157 mm) and 4-pin connector enable easy installation and motherboard fan control.

Suitable for

• Mainstream desktop CPUs on Intel LGA1851 / 1700 / 1200 / 115x
• Mainstream desktop CPUs on AMD AM5 and AM4
• Mid-tower PC builds where a low-to-medium profile cooler is required
• Systems needing PWM fan control and reduced vibration

When it may not be suitable

This cooler is not intended for high-end overclocked systems that exceed its 220 W TDP rating; heavily overclocked CPUs or extreme thermal loads may require larger tower coolers or liquid cooling solutions. Very small form-factor cases with tight clearance could also restrict fitment despite the cooler's relatively compact dimensions.

Key specifications

• Supported sockets: Intel LGA1851 / 1700 / 1200 / 115x; AMD AM5 / AM4
• Heat dissipation area: 6,510 cm²
• Heatpipes: 4 direct-touch heatpipes
• Rated TDP: 220 W
• Fan size: 120 × 120 × 26 mm
• Fan speed: 600–2,000 ±10% RPM (PWM)
• Maximum airflow: 69.12 ±10% CFM
• Maximum noise level: 29.7 ±10% dBA
• Maximum air pressure: 2.01 ±10% mm H₂O
• Fan bearing: Hydro bearing
• Fan connector: 4-pin, PWM control
• Rated voltage/current/power: 12 V / 0.28 A / 3.36 W
• Materials: Pure copper base, pure aluminum fins
• Dimensions (L×W×H): 122 × 77 × 157 mm
• Weight: 710 g
• Color: Black

How to use

Mount the cooler on a compatible CPU socket following the supplied Zalman installation instructions. Apply a thin, even layer of thermal paste between the CPU heatspreader and the cooler base, align the cooler so the heatpipes and fan clear surrounding components, and secure it to the motherboard using the included mounting hardware. Connect the 4-pin fan cable to the CPU_FAN header to enable PWM speed control via the motherboard. Verify clearance for RAM modules and any nearby PCIe slots before final assembly.

What to consider before purchase

• Check case clearance and motherboard layout for cooler height (157 mm) and footprint (122 × 77 mm).
• Confirm socket compatibility with your CPU (Intel LGA1851/1700/1200/115x or AMD AM5/AM4).
• Consider the TDP (220 W) relative to your CPU and any intended overclocking.
• Ensure your motherboard has a 4-pin PWM CPU fan header for automatic control.

Usage recommendations

For typical desktop builds, use the PWM header for automatic fan speed control and enable any motherboard fan curves to balance cooling and noise. Replace thermal paste according to the CPU manufacturer's guidance and check mounting torque to ensure even contact without overtightening.
