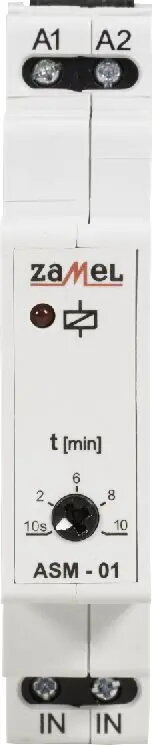

Zamel ASM-01/U Staircase Timer 12-240V AC/DC

The Zamel ASM-01/U is a universal staircase timer engineered for precise lighting control in both residential and commercial environments. This versatile device is designed to manage lighting systems by automatically switching them off after a pre-configured time interval, which significantly contributes to energy savings and operational convenience in high-traffic areas such as stairwells, corridors, and building entrances.

Advantages

The primary benefit of the Zamel ASM-01/U is its exceptional flexibility, provided by a wide operating voltage range of 12-240V AC/DC. This universal compatibility allows the timer to be integrated into diverse electrical systems without the need for additional transformers or complex modifications. By automating the lighting duration, the device prevents unnecessary energy consumption, ensuring that lights remain active only when needed. Its compact design facilitates easy installation within standard electrical distribution boards, making it a reliable solution for modernizing building infrastructure.

Suitable for

• Residential stairwell lighting control
• Corridor and hallway illumination management
• Common area lighting in apartment buildings
• Office building lighting automation
• Public facility entrance lighting

When it may not be suitable

This staircase timer is not intended for use with lighting systems that require complex dimming functions or smart home integration protocols. It is also unsuitable for high-power industrial machinery control or applications requiring continuous, non-timed lighting operation.

Key specifications

• Supply voltage: 12-240V AC/DC
• Function: Staircase timer with automatic switch-off
• Mounting: DIN rail installation
• Application: Lighting control in residential and commercial buildings

How to use

The Zamel ASM-01/U should be installed by a qualified professional within a standard electrical distribution cabinet on a DIN rail. Once mounted, the desired time delay for the lighting duration is set using the integrated adjustment dial on the front of the device. The timer is then wired into the existing lighting circuit, typically triggered by momentary push-buttons located throughout the stairwell or corridor. Once a button is pressed, the timer activates the lights for the duration specified, after which it automatically disconnects the power.

What to consider before purchase

• Verify that your existing lighting circuit is compatible with the 12-240V AC/DC voltage range.
• Ensure there is sufficient space on the DIN rail within your distribution board for installation.
• Confirm that the total load of the connected lighting does not exceed the relay capacity of the device.

Usage recommendations

For optimal performance and safety, ensure that all electrical connections are tightened securely during installation. It is recommended to test the timer functionality after setup to confirm the time delay meets your specific requirements for the area.
