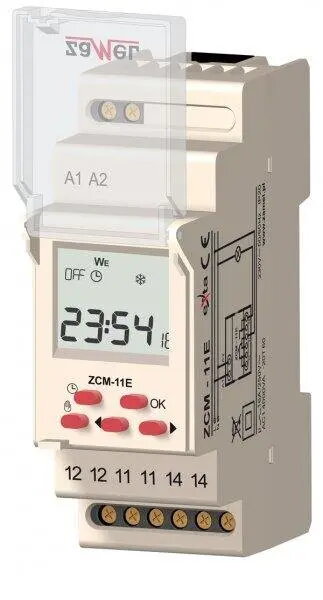

Timer switch ZAMEL ZCM-11E — 1-channel weekly programmable timer, 230V AC

ZAMEL ZCM-11E is a 1-channel weekly programmable timer switch for 230V AC circuits, designed for installation on DIN-rail or in electrical panels. It provides weekly scheduling of one output channel, enabling automatic on/off control according to daily and weekly patterns. The device is intended for timed switching of lighting, heating circuits, ventilation or other single-circuit electrical loads where a reliable weekly program is required.

Advantages

The timer offers weekly programming flexibility in a compact module suitable for panel or DIN-rail mounting, with a clear control interface for setting multiple on/off events per day. Operating at standard 230V AC, it integrates with common single-phase installations and reduces manual intervention by automating recurring switching tasks. The design focuses on straightforward scheduling and reliable timed control for a variety of domestic and small commercial applications.

Suitable for

• Automated lighting control in homes, offices or corridors
• Scheduled switching of heating circuits or electric boilers
• Control of ventilation or extractor fans on weekly cycles
• Timed operation of pumps or single-phase loads with weekly patterns

Key specifications

• Channel count: 1 output channel for switching
• Supply voltage: 230V AC
• Programmable schedule: weekly programs with daily on/off events
• Mounting: DIN-rail or panel installation compatible form factor
• Application: suitable for single-circuit electrical loads such as lighting, heating, ventilation

How to use

Install the timer on a DIN-rail or in the electrical panel following local electrical safety regulations and switch off power before wiring. Connect the supply to the 230V AC terminals and wire the single switched output to the controlled load. Use the device's programming interface to set the weekly schedule: define on/off times for each day or copy patterns across days as supported. After programming, restore power and verify that the timer operates according to the set schedule by observing at least one complete on/off cycle.

Usage recommendations

For reliable operation, confirm that the controlled load power and type are compatible with the timer's switching capability and ensure proper circuit protection. When programming, allow a test period to confirm schedules and adjust timings for seasonal or occupancy changes.
