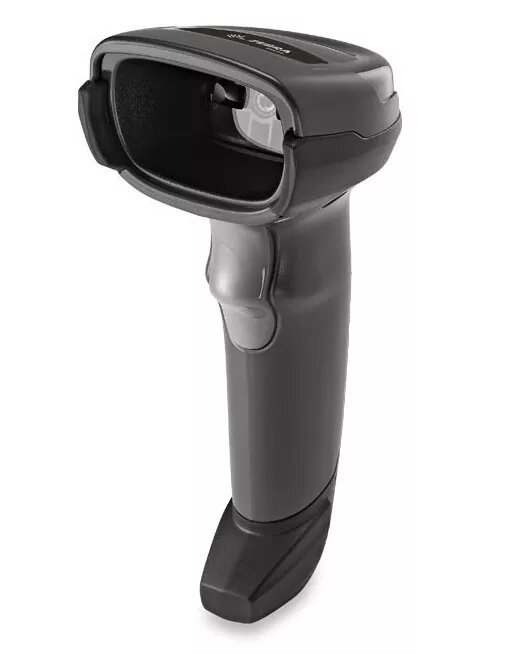

Handheld bar code reader Zebra DS2208

Handheld bar code reader DS2208 Photo 1
Handheld bar code reader DS2208 Photo 2
Handheld bar code reader DS2208 Photo 3
Handheld bar code reader DS2208 Photo 4
Handheld bar code reader DS2208 Photo 1
Handheld bar code reader DS2208 Photo 2
Handheld bar code reader DS2208 Photo 3
Handheld bar code reader DS2208 Photo 4
Handheld bar code reader DS2208 Photo 1
Handheld bar code reader DS2208 Photo 2
Handheld bar code reader DS2208 Photo 3
Handheld bar code reader DS2208 Photo 4
Handheld bar code reader DS2208 Photo 1
Handheld bar code reader DS2208 Photo 2
Handheld bar code reader DS2208 Photo 3
Handheld bar code reader DS2208 Photo 4
Handheld bar code reader Zebra DS2208
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The Zebra DS2208 is a versatile handheld bar code reader that supports both 1D and 2D scanning. With a wired connectivity option via USB, RS-232, and RS-485, it ensures easy integration into various systems. The device features a robust LED sensor and is designed with an IP42 rating for durability. Weighing only 161.6 g and powered by a 2400 mAh Lithium-Ion battery, it offers reliable performance for retail and inventory management.
Warranty: 2 Years
SKU: 260144
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Zebra DS2208 is a handheld bar code reader designed to read both 1D and 2D codes reliably at the point of sale, in stockrooms and on production lines. This wired model provides USB, RS-232 and RS-485 connectivity for straightforward integration with POS terminals, inventory systems and legacy equipment. The scanner uses an LED sensor and supports a wide working distance up to 368 mm while maintaining a compact, lightweight profile (approximately 161.6 g). Its IP42 rating offers basic protection against dust and splashes, and the device is powered by a 2400 mAh Lithium‑Ion battery for consistent operation during typical business hours.

Advantages

The DS2208 combines 1D and 2D imaging capability in a single compact unit, enabling reading of traditional linear barcodes as well as modern matrix and stacked codes such as QR, Data Matrix and PDF417. Wired connectivity options (USB, RS-232, RS-485) simplify installation across a variety of systems without requiring additional adapters. The LED sensor delivers stable decoding performance under normal retail and warehouse lighting, and the low weight and ergonomic design reduce operator fatigue during repeated scanning tasks.

Suitable for

  • Retail checkout and point of sale scanning
  • Inventory control and stockroom management
  • Coupon, loyalty card and ticket scanning (printed and on-screen)
  • Light industrial and logistic identification tasks

Key specifications

  • Scanner type: 1D and 2D imager
  • Sensor type: LED
  • Working distance: up to 368 mm
  • Connectivity: wired (USB, RS-232, RS-485)
  • Supported linear barcodes: Code 11, UPC, MSI, Interleaved 2 of 5, GS1 DataBar Expanded, EAN-13, Code 93, Code 39, Code 128, Codabar
  • Supported 2D barcodes: Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39, Aztec Code, Composite Codes, Data Matrix
  • Weight: 0.1616 kg
  • Colour: black
  • Ingress protection: IP42
  • Battery: 2400 mAh Lithium‑Ion (for cordless variants; wired model relies on host power for operation but battery specification indicates typical family power capability)

How to use

Connect the Zebra DS2208 to the host system using the appropriate cable for your interface (USB, RS-232 or RS-485). Place the item barcode within the scanner’s field of view and press the trigger to activate the imager; the LED will illuminate and the reader will decode the barcode, transmitting the data to your application. For on-screen or mobile barcodes, align the scan window with the displayed code and allow the imager to capture and decode it. Ensure the scanner is configured to the correct host interface settings before use and consult the provisioning guide for any required programming of symbologies.

Usage recommendations

Position the scanner so that the barcode is roughly perpendicular to the scan window and within the specified working distance for fastest decoding. Keep the scan window clean and avoid strong direct sunlight on the barcode. For high-volume retail environments, verify host interface settings and enable only the necessary symbologies to improve scanning speed and reduce misreads.

Specifications

Scanner type:
1D/2D
Sensor type:
LED
Working distance:
368 mm
Connectivity technology:
Wired
Weight:
0.1616 kg
Linear (1D) barcodes supported:
Code 11, U.P.C., MSI, Interleaved 2 of 5, GS1 DataBar Expanded, EAN-13, Code 93, Code 39, Code 128, Codabar
2D (matrix & stacked) barcodes supported:
Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39, Aztec Code, Composite Codes, Data Matrix
Product colour:
Black
All features

Scanning

Scanner type:
1D/2D
Sensor type:
LED
Type:
Handheld bar code reader
Working distance:
368 mm
Linear (1D) barcodes supported:
Code 11, U.P.C., MSI, Interleaved 2 of 5, GS1 DataBar Expanded, EAN-13, Code 93, Code 39, Code 128, Codabar
2D (matrix & stacked) barcodes supported:
Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39, Aztec Code, Composite Codes, Data Matrix
Wavelength:
645 nm
Yaw reading angle:
-65 - 65
Pitch reading angle:
-65 - 65
Tilt reading angle:
-65 - 65
Motion tolerance (cm/s):
13
Optical sensor resolution (W x H):
640 x 480

Ports & interfaces

Connectivity technology:
Wired
Standard interfaces:
Keyboard wedge, RS-485, RS-232, USB

Power

AC adapter output voltage:
5
Power consumption:
250 mA
Power source type:
DC
Battery life:
100 h

Technical details

Compliance certificates:
RoHS

Performance

Product colour:
Black
Certification:
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
LED indicators:
Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP42

Weight & dimensions

Weight:
0.1616 kg
Height:
165 mm
Width:
66 mm
Depth:
99 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
0 - 50

Packaging data

Cables included:
Micro-USB
Charging base:
No

Logistics data

Harmonized System (HS) code:
84716070

Battery

Battery technology:
Lithium-Ion (Li-Ion)
Battery capacity:
2400 mAh
Hide Show all

Instructions

mmo_34580628_1496397452_2285_10073.pdf
zebra-DS2208-SR7U2100SGW-260144.pdf

Description

Instructions

mmo_34580628_1496397452_2285_10073.pdf
zebra-DS2208-SR7U2100SGW-260144.pdf
