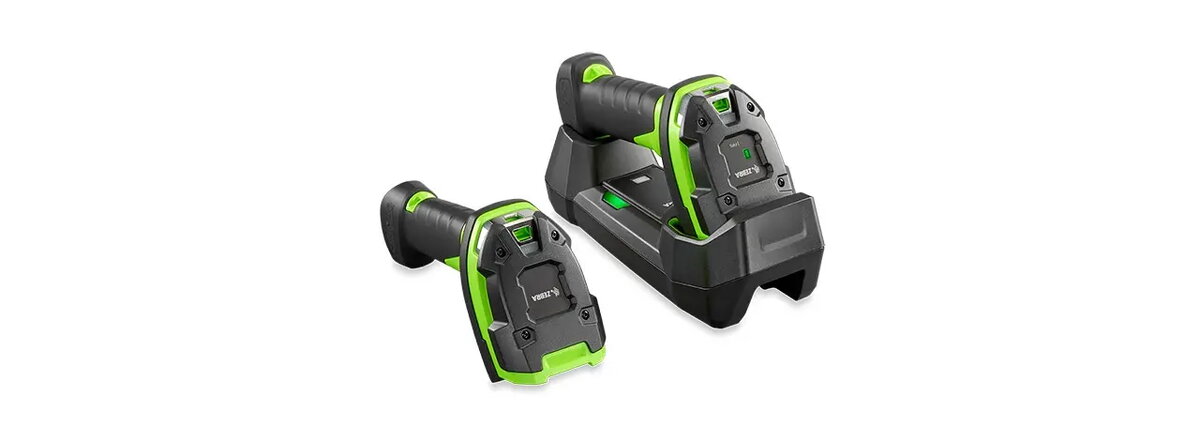

Zebra DS3678-DP Handheld 1D/2D Laser Barcode Scanner

Name: Zebra DS3678-DP Handheld 1D/2D Laser DS3678-DP3RF50BS1W
Brand: Zebra
SKU: 12477430
Price: 2066.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Zebra DS3678-DP Handheld 1D/2D Laser Barcode Scanner, Wireless and Wired, IP67

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Zebra DS3678-DP is a rugged handheld 1D/2D laser barcode scanner designed for demanding industrial environments. It features versatile wired and wireless connectivity with a 100m range. Built with an IP67 rating, it is dust, shock, and water-resistant, ensuring reliable performance. This scanner supports RS-232, USB, and keyboard wedge interfaces, making it ideal for high-precision data capture in logistics, manufacturing, and warehouse operations.

Available for order: 5 pcs.

Warranty: 2 Years

SKU: 12477430

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

10.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

10.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

15.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

15.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 689 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities

36 months installment: from 57.42 euros per month

Leasing for legal entities: from 71.93 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Zebra DS3678-DP is an ultra-rugged handheld barcode scanner engineered for high-precision data capture in the most demanding industrial environments. Designed to handle both 1D and 2D barcodes as well as complex Direct Part Marks (DPM), this device ensures reliable performance in sectors such as aerospace, automotive manufacturing, and heavy logistics. With its versatile connectivity options, including both wired and wireless modes with a 100-meter range, it provides the flexibility needed for dynamic warehouse and assembly line operations.

Advantages

This scanner stands out due to its exceptional durability and advanced scanning technology. It is built to withstand harsh conditions, featuring an IP67 rating that guarantees protection against dust, water, and accidental drops. The device excels at reading challenging marks, including dot peen, laser etch, and chemical marks, regardless of surface contrast or density. Furthermore, the integration of Bluetooth Low Energy technology and a high-capacity lithium-ion battery ensures long-lasting operation, while the comprehensive management tools allow for easy remote configuration and battery monitoring.

Suitable for

Aerospace and automotive manufacturing plants
Quality control and assembly line tracking
Logistics and warehouse inventory management
Scanning direct part marks (DPM) on metal or plastic components
Reading barcodes from digital screens or printed labels

When it may not be suitable

The Zebra DS3678-DP is a specialized industrial tool and may be overkill for standard retail or office environments where such high levels of ruggedization and DPM scanning capabilities are not required. Its weight and robust build are optimized for heavy-duty use, which might make it less ergonomic for light-duty, high-frequency retail scanning tasks.

Key specifications

Scanner type: 1D/2D Laser
Connectivity: Wired and Wireless (Bluetooth Low Energy)
Wireless range: Up to 100 meters
Interfaces: RS-232, USB, Keyboard wedge
Protection rating: IP67 (dust-tight and waterproof)
Battery: Rechargeable Lithium-Ion 3100 mAh
Weight: 402 g
Supported symbologies: Includes QR Code, Data Matrix, PDF417, Code 128, UPC, and various DPM formats

How to use

To begin using the scanner, ensure the battery is fully charged using the compatible cradle. Connect the cradle to your host system via the desired interface, such as USB or RS-232. Once connected, the scanner can be paired wirelessly or used in wired mode. Simply aim the scanner at the barcode or direct part mark and pull the trigger. The device will provide visual and audible feedback upon a successful scan. For advanced configuration, use the provided Zebra management software to tailor data formatting and scanner settings to your specific business applications.

What to consider before purchase

Verify that your host system supports the required interface (USB, RS-232, or Keyboard wedge).
Assess whether you specifically need DPM (Direct Part Mark) scanning capabilities.
Ensure the wireless range meets the requirements of your facility layout.
Confirm that the scanner's weight is suitable for your operators' daily workflow.

Usage recommendations: To maintain the longevity of your device, ensure the charging cradle is kept in a clean, dry area. Regularly clean the scanner window with a soft, non-abrasive cloth to ensure optimal scanning performance, especially when working in dusty industrial environments.

Specifications

Scanner type:: 1D/2D
Sensor type:: Laser
Connectivity technology:: Wired & Wireless
Weight:: 0.402 kg
Linear (1D) barcodes supported:: U.P.C., MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Code 128, Code 11, Codabar, Plessey
2D (matrix & stacked) barcodes supported:: Micro QR Code, Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, MicroPDF417, PDF417, QR Code, TLC-39
Product colour:: Black, Green

All features

Scanning

Scanner type:: 1D/2D
Sensor type:: Laser
Type:: Handheld bar code reader
Linear (1D) barcodes supported:: U.P.C., MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Code 128, Code 11, Codabar, Plessey
2D (matrix & stacked) barcodes supported:: Micro QR Code, Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength:: 655 nm

Ports & interfaces

Connectivity technology:: Wired & Wireless
Bluetooth version:: 4.0
Wireless range:: 100 m
Ethernet LAN:: Yes
Standard interfaces:: RS-232, USB, Keyboard wedge
Bluetooth Low Energy (BLE):: Yes

Power

Number of reads per charge:: 100000
Power source type:: Battery

Technical details

Compliance certificates:: RoHS

Performance

Product colour:: Black, Green
LED indicators:: Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP67
Protection features:: Shock resistant, Water resistant, Dust resistant
Programming function:: Yes

Weight & dimensions

Weight:: 0.402 kg
Height:: 185 mm
Width:: 143 mm
Depth:: 77 mm

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: -20 - 50

Battery

Battery technology:: Lithium-Ion (Li-Ion)
Battery capacity:: 3100 mAh

Logistics data

Harmonized System (HS) code:: 84716070

Hide Show all

Description

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Zebra DS3678-DP Handheld 1D/2D Laser Barcode Scanner cost, and is it available for purchase?

The price is 2,066.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 5 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 10.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can Zebra DS3678-DP Handheld 1D/2D Laser Barcode Scanner be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the Zebra DS3678-DP Handheld 1D/2D Laser Barcode Scanner online, and the application process is as simple as possible:

Select the product on the website and add it to your cart;
When placing your order, choose the payment method “Installments”;
Fill in the required details for the lending partner;
Receive a decision within a few minutes.

For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Zebra products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Zebra service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: scanner type, sensor type, connectivity technology, weight, linear (1d) barcodes supported, 2d (matrix & stacked) barcodes supported, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
