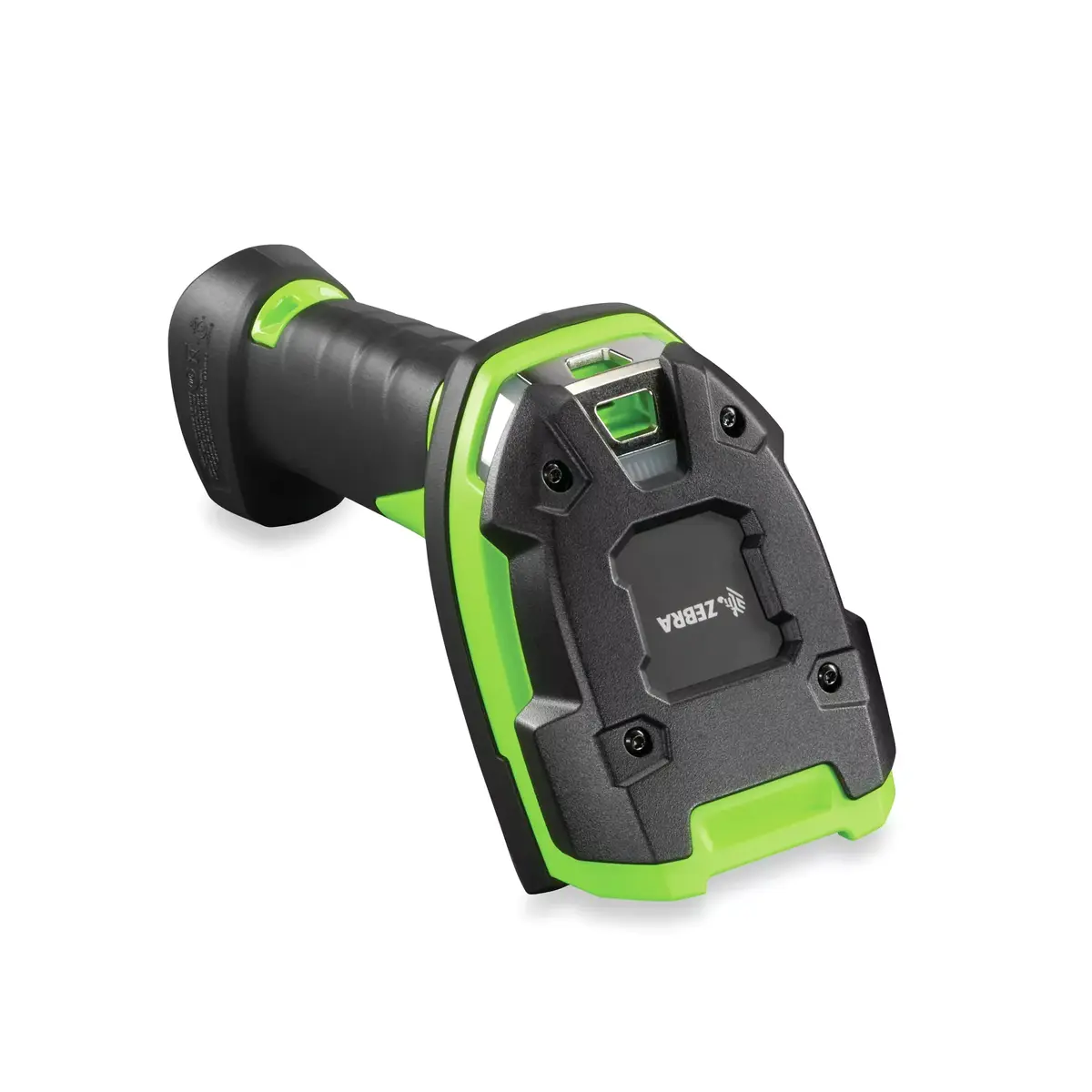

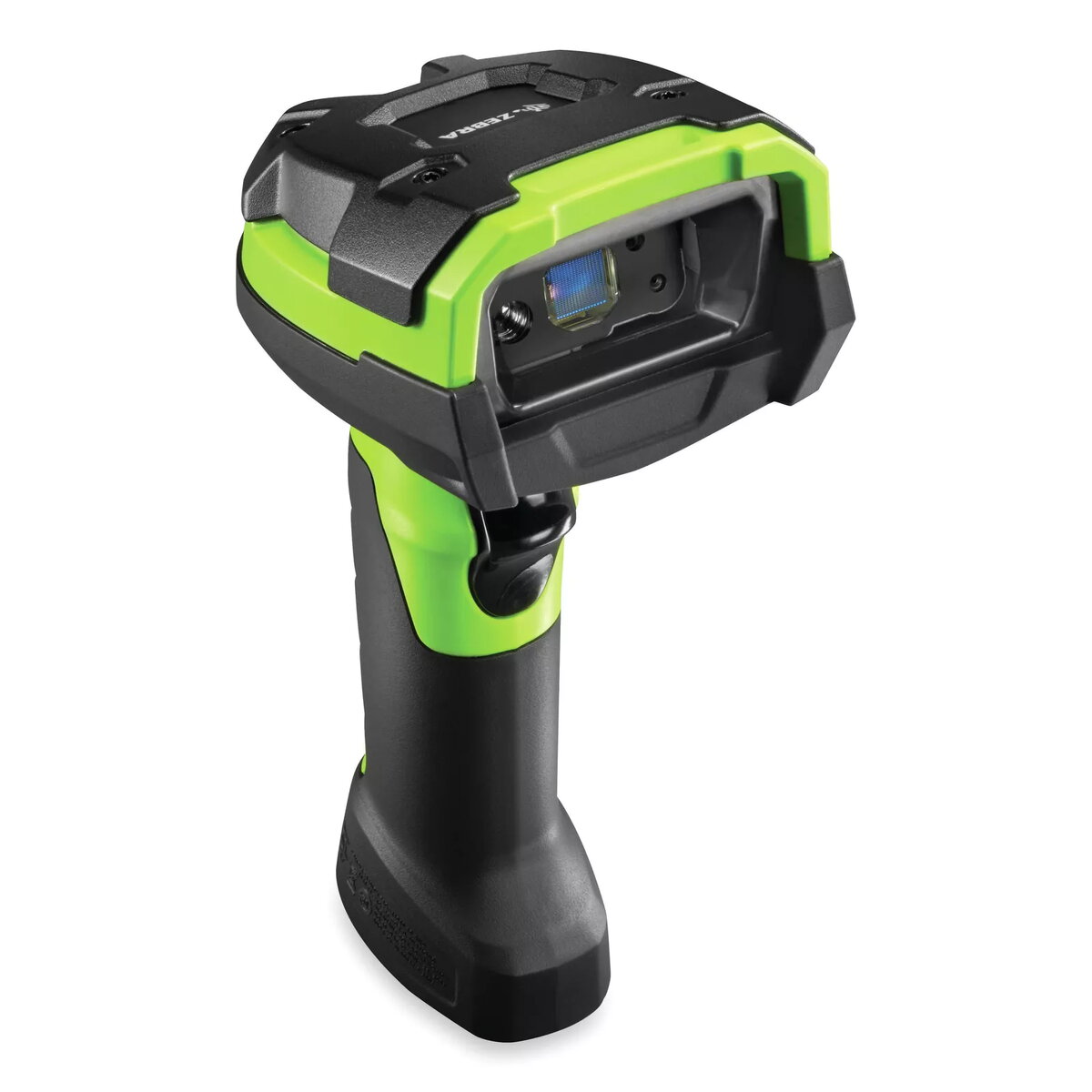

Handheld bar code reader Zebra DS3678-HD

Handheld bar code reader Zebra DS3678-HD Photo 1
Handheld bar code reader Zebra DS3678-HD Photo 2
Handheld bar code reader Zebra DS3678-HD Photo 1
Handheld bar code reader Zebra DS3678-HD Photo 2
Handheld bar code reader Zebra DS3678-HD Photo 1
Handheld bar code reader Zebra DS3678-HD Photo 2
Handheld bar code reader Zebra DS3678-HD Photo 1
Handheld bar code reader Zebra DS3678-HD Photo 2
Handheld bar code reader Zebra DS3678-HD
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The Zebra DS3678-HD is a versatile handheld bar code reader designed for 1D and 2D scanning. It features both wired and wireless connectivity with a range of up to 100 meters. With an IP67 rating, it is dust, shock, and water resistant, making it ideal for tough environments. The device is powered by a long-lasting 3100 mAh Lithium-Ion battery, ensuring reliable performance. Weighing 411 g and measuring 142 mm in width and 76 mm in depth, it is ergonomic and easy to handle.
Warranty: 2 Years
SKU: 218399
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Zebra DS3678-HD handheld bar code reader delivers high-density 1D and 2D barcode capture for demanding industrial environments. Part of Zebra's Ultra-Rugged 3600 Series, the corded DS3608-HD and cordless DS3678-HD models are built to withstand manufacturing and warehouse conditions while providing reliable, fast scanning of small and standard barcodes printed on labels or directly on components. With wired and wireless connectivity, an IP67 rating for dust and water resistance, and a long-lasting 3100 mAh Lithium‑Ion battery in the cordless model, the DS3678-HD supports continuous operation across the production line and into storage areas.

Advantages

The DS3678-HD offers superior decoding performance for both high-density and standard 1D/2D barcodes, including damaged, dirty or poorly printed codes. Its ultra-rugged design provides dust-tight, sprayproof and waterproof protection to IP67, complemented by an IP65-sealed cradle for the cordless configuration. Corded and cordless connectivity options, long battery life, and remote manageability tools simplify deployment and maintenance in industrial and warehouse settings.

Suitable for

  • Electronics manufacturing production lines
  • Warehouse receiving, picking and shipping
  • Component tracking and quality control
  • Environments requiring durable, water- and dust-resistant scanners

Key specifications

  • Scanner type: 1D/2D
  • Sensor type: Laser
  • Connectivity: Wired & Wireless (cordless range up to 100 m)
  • Battery (cordless): 3100 mAh Lithium‑Ion
  • Ingress protection: IP67 (scanner); IP65 (cradle)
  • Weight: 0.411 kg
  • Supported 1D codes: U.P.C., Plessey, MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Code 128, Code 11, Codabar
  • Supported 2D codes: Composite Codes, Aztec Code, QR Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, TLC-39
  • Colours: Black, Green
  • Manufacturer part number (MPN): DS3678-HD2F003VZWW

How to use

Point the DS3678-HD at the barcode so the aiming pattern covers the code, then press the trigger to capture. For cordless operation, ensure the battery is charged and the scanner is paired to the host via the configured wireless interface. Use the included cradle for charging and wired communication where required. Configure data formatting and device settings with Zebra's management tools to integrate scanned data directly into your business applications.

Usage recommendations

Use the DS3678-HD for first-pass capture of small, high-density component codes and routine warehouse barcodes. Regularly inspect and clean the scan window, keep firmware up to date via Zebra’s management utilities, and maintain the cradle and seals to preserve IP-rated protection.

Specifications

Scanner type:
1D/2D
Sensor type:
Laser
Connectivity technology:
Wired & Wireless
Weight:
0.411 kg
Linear (1D) barcodes supported:
U.P.C., Plessey, MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Code 128, Code 11, Codabar
2D (matrix & stacked) barcodes supported:
Composite Codes, Aztec Code, QR Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, TLC-39
Product colour:
Black, Green
All features

Scanning

Scanner type:
1D/2D
Sensor type:
Laser
Type:
Handheld bar code reader
Linear (1D) barcodes supported:
U.P.C., Plessey, MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Code 128, Code 11, Codabar
2D (matrix & stacked) barcodes supported:
Composite Codes, Aztec Code, QR Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, TLC-39
Optical sensor resolution:
1280 pixels
Wavelength:
655 nm
Yaw reading angle:
-45 - 45
Pitch reading angle:
-65 - 65
Tilt reading angle:
-65 - 65

Ports & interfaces

Connectivity technology:
Wired & Wireless
Bluetooth version:
4.0
Wireless range:
100 m
Ethernet LAN:
Yes
Standard interfaces:
RS-232, USB, Keyboard wedge
Bluetooth Low Energy (BLE):
Yes

Power

Number of reads per charge:
100000
Power source type:
Battery

Technical details

Compliance certificates:
RoHS

Performance

Product colour:
Black, Green
LED indicators:
Y
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP67
Protection features:
Dust resistant, Shock resistant, Water resistant
Programming function:
Yes

Weight & dimensions

Weight:
0.411 kg
Height:
185 mm
Width:
142 mm
Depth:
76 mm

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
-20 - 50

Battery

Battery technology:
Lithium-Ion (Li-Ion)
Battery capacity:
3100 mAh

Logistics data

Harmonized System (HS) code:
84716070
