header-product Fixed bar code reader Zebra DS5502 1D/2D LED Black Wired
365.99 €

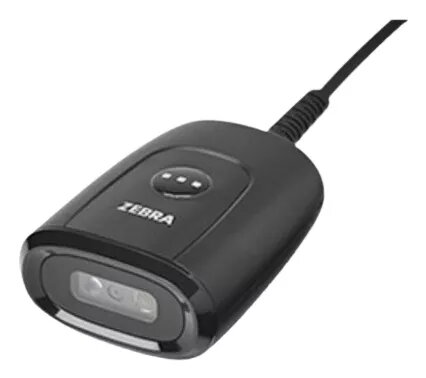

Fixed bar code reader Zebra DS5502 1D/2D LED Black Wired

Fixed bar code reader Zebra DS5502 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Fixed bar code reader Zebra DS5502 1D/2D LED Black Wired

{{email}}
You keep track of price changes

Fixed bar code reader Zebra DS5502 1D/2D LED Black Wired

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Zebra DS5502 is a fixed bar code reader designed for 1D and 2D scanning. It features LED sensor technology, wired connectivity with RS-232 and USB interfaces, and an IP54 rating for protection against dust and water. With a lightweight design and low power consumption, it is suitable for various applications in retail and logistics.
Available for order: 41 pcs.
Warranty: 2 Years
SKU: 11097673
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
25.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.43 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
28.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Zebra DS5502 fixed mount scanner delivers high-performance 1D and 2D barcode scanning in a compact, low-profile housing designed for retail counters, self-service and ticketing kiosks, contactless pickup lockers, boarding gates and other space-constrained environments. The DS5502 supports wired connectivity (RS-232 and USB), features LED sensor technology, an IP54 rating for dust and splash protection, and is compatible with a wide range of mounting accessories for embedded or standalone use.

Advantages

The DS5502 reads virtually any 1D or 2D barcode, including mobile barcodes on phone screens, and captures images and OCR data when needed. Its small footprint and elegant design enable flush or under-counter mounting in tight spaces. Intelligent Imaging with a high-resolution sensor improves performance on damaged or poorly printed codes and provides a wide, omni-directional field of view for fast swipe scanning. Multiple cable options, a bright decode LED, an adjustable and louder beeper, and USB/RS-232 multi-interface support simplify integration and use. The scanner is ruggedly built to withstand drops and spills and is backed by Zebra’s software tools (SDKs, Remote Diagnostics, IoT Connector, ScanSpeed Analytics) for easier deployment and management.

Suitable for (tasks / use cases)

  • Retail point-of-sale counters and cashwraps
  • Self-service kiosks, ticketing and lottery terminals
  • Contactless pickup lockers and BOPIS stations
  • Boarding gates and travel check-in
  • Light manufacturing or workstation environments with limited space

Key specifications

  • Scanner type: Fixed 1D/2D scanner (DS5502)
  • Sensor type: LED imaging sensor
  • Supported barcodes: 1D (UPC, Code 39, Code 128, Code 93, Code 11, Codabar, EAN, GS1 DataBar, etc.); 2D (QR, Micro QR, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode, Composite codes, Han Xin, TLC-39)
  • Connectivity: Wired — RS-232 and USB
  • Ingress protection: IP54 (dust and splash resistant)
  • Dimensions (typical DS55 Series reference): approx. 3.0 cm H x 5.6 cm W x 7.2 cm D
  • Weight: 0.0652 kg
  • Colour: Black
  • Mounting: Standard 1/4-20 camera mount; compatible with third-party and Zebra 3-in-1 mounts
  • Warranty: 3-year limited warranty

How to use

Install the DS5502 in the required location using the 1/4-20 mount or the optional Zebra 3-in-1 accessory for desktop, wall or display mounting. Connect the scanner to your host using the appropriate cable and interface (RS-232 or USB) and verify USB certification if using USB. Position the scanner flush or exposed depending on the kiosk or counter design. Present printed or mobile barcodes within the omni-directional field of view and swipe at a natural speed; the LED illumination and green aimer help with aiming while the louder beeper and decode LEDs confirm successful reads. Use the provided SDKs and configuration tools (123Scan or SDK) to adjust parameters such as symbology enablement, data formatting and beeper volume.

Usage recommendations

For reliable long-term operation, mount the scanner in a protected but accessible location, choose the cable length and connector orientation that match your installation, and enable Remote Diagnostics and ScanSpeed Analytics to monitor performance and identify problematic barcodes. For applications requiring customer ID capture or document imaging, enable OCR and image capture features through the SDK and validate image quality under the expected lighting conditions.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.0652 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
LED
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Fixed bar code reader
Power source type: What the power source is.
DC
Product colour: The colour e.g. red, blue, green, black, white.
Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB, RS-232
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
GS1 DataBar, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 2, EAN 5, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Han Xin, Aztec Code, Composite Codes, Data Matrix, TLC-39, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode
All features

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
China RoHS, REACH, RoHS

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance:
Yes

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 50

Packaging data

External power adapter:
Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.0652 kg
Height: The measurement of the product from head to foot or from base to top.
56 mm
Depth: The distance from the front to the back of something.
30 mm
Width: The measurement or extent of something from side to side.
72 mm

Power

Power consumption:
360 mA
Input voltage: The voltage (V) which is required to power the product.
4.75
Power source type: What the power source is.
DC

Performance

Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.
Electrostatic Discharge (ESD) protection
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP54
Product colour: The colour e.g. red, blue, green, black, white.
Black

Ports & interfaces

Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB, RS-232
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

Scanning

Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
525 nm
Vertical field of view:
30 °
Horizontal field of view:
48 °
Optical sensor resolution (W x H):
1280 x 800
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
LED
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
GS1 DataBar, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 2, EAN 5, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
Han Xin, Aztec Code, Composite Codes, Data Matrix, TLC-39, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Fixed bar code reader
