Type:
Characteristics of the device.
-

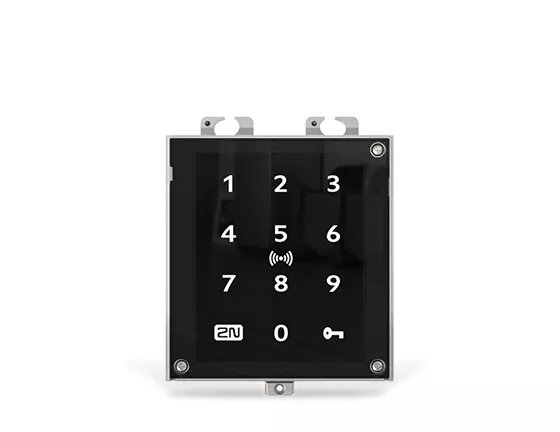

Basic access control reader
-
Weight:
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
-
0.8 kg
-
Operating relative humidity (H-H):
-
10 - 95
-
Storage temperature (T-T):
The minimum and maximum temperatures at which the product can be safely stored.
-
-40 - 70
-
Supported protocols:
-
DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-40 - 60
-
Bluetooth version:
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
-
5.0
-
Height:
The measurement of the product from head to foot or from base to top.
-
130 mm
-
LED indicators:
-
Yes
-
Width:
The measurement or extent of something from side to side.
-
107 mm
-
Depth:
The distance from the front to the back of something.
-
28 mm
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Black
-
Bluetooth:
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
-
Yes
-
Ethernet LAN (RJ-45) ports:
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
-
1
-
Keypad illumination:
-
Yes
-
Power over Ethernet (PoE):
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
-
Yes
-
Buzzer:
-
Yes
-
Fingerprint reader:
A scanner used to identify a person's fingerprint for security purposes. After a sample is taken, access to a computer or other system is granted if the fingerprint matches the stored sample. A PIN may also be used with the fingerprint sample.
-
No
-
Backlight:
Product has a built-in light source for its illuminating.
-
Yes
-
Ethernet LAN data rates:
The different speed levels of the Ethernet LAN connection.
-
10, 100
-
Touchscreen:
A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
-
Yes
-
Housing material:
What the casing of the product is made of.
-
Metal
-
Power consumption:
-
600 mA
-
Keypad number of keys:
-
12
-
DC voltage range:
-
-30 - 30
-
International Protection (IP) code:
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
-
IP54
-
Touchscreen technology:
-
Capacitive
-
Keypad integrated:
-
Yes
-
Built-in display:
A display which is part of the product, so you do not need to attach another display.
-
No
-
Power consumption (max):
The maximum amount of power used by the device.
-
12.95 W
-
Access code reader:
Device that is able to read an access code, and therefore determine whether the person with the card should be given access to the physical place or computer system.
-
Yes
-
Access chip/card reader:
Device that is able to read an access chip/card (smart card), and therefore determine whether the person with the card should be given access to the physical place or computer system.
-
Yes
-
Authentication type:
Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.
-
Access chip/card, Password
-
Near Field Communication (NFC):
-
Yes
-
IK code:
-
IK08
-
Power over Ethernet (PoE) ports quantity:
-
1
-
Front camera:
Camera at the front of the product.
-
No
-
RFID frequency:
-
13.56 MHz
-
Tamper:
-
Yes
