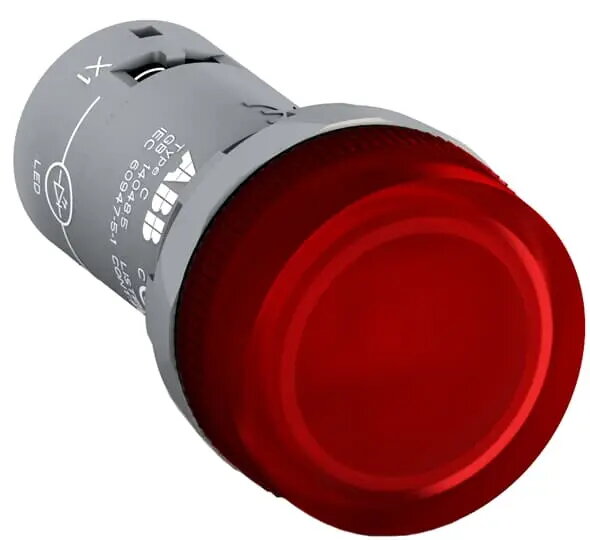

ABB CL2-523R Signal Lamp Red 230V AC

The ABB CL2-523R Signal Lamp is a high-quality visual indicator designed for integration into industrial control panels and automation systems. This compact unit features a vibrant red lens that provides clear status monitoring for electrical equipment. Engineered as part of the ABB compact range, it offers an efficient all-in-one design that simplifies assembly and reduces installation time in demanding environments.

Advantages

This signal lamp stands out due to its robust construction and high level of resistance to dust and water, ensuring reliable performance even in challenging industrial conditions. Its compact form factor allows for space-saving installation on control panels without compromising visibility. By utilizing an all-in-one design, the unit minimizes the number of components required, which significantly lowers installation costs and streamlines the maintenance process for automation professionals.

Suitable for

• Industrial control panels
• Automation and monitoring systems
• Electrical machinery status indication
• Emergency stop or alarm signaling

This signal lamp may not be suitable for applications requiring low-voltage DC power, as it is specifically designed for 230V AC operation. Additionally, it is intended for standard industrial environments and may not be appropriate for extreme hazardous locations that require specialized explosion-proof certification.

Key specifications

• Operating voltage: 230V AC
• Lens colour: Red
• Width: 30 mm
• Height: 30 mm
• Depth: 52 mm
• High dust and water resistance

How to use

The ABB CL2-523R is designed for straightforward panel mounting. Ensure the power supply is disconnected before installation. Insert the lamp unit into the designated 30 mm panel cutout and secure it according to the manufacturer's mounting instructions. Connect the 230V AC power leads to the terminals, ensuring all connections are tight and compliant with local electrical safety standards. Once installed, the lamp will illuminate when the circuit is energized, providing immediate visual feedback.

What to consider before purchase

• Verify that your power supply matches the 230V AC requirement.
• Ensure the panel cutout size is compatible with the 30 mm dimensions.
• Confirm the environmental conditions meet the IP rating specifications for dust and water resistance.

Usage recommendations

For optimal longevity and performance, ensure the signal lamp is installed in a location protected from direct mechanical impact and excessive vibration. Periodically inspect the lens for cleanliness to maintain maximum light output and visibility.
