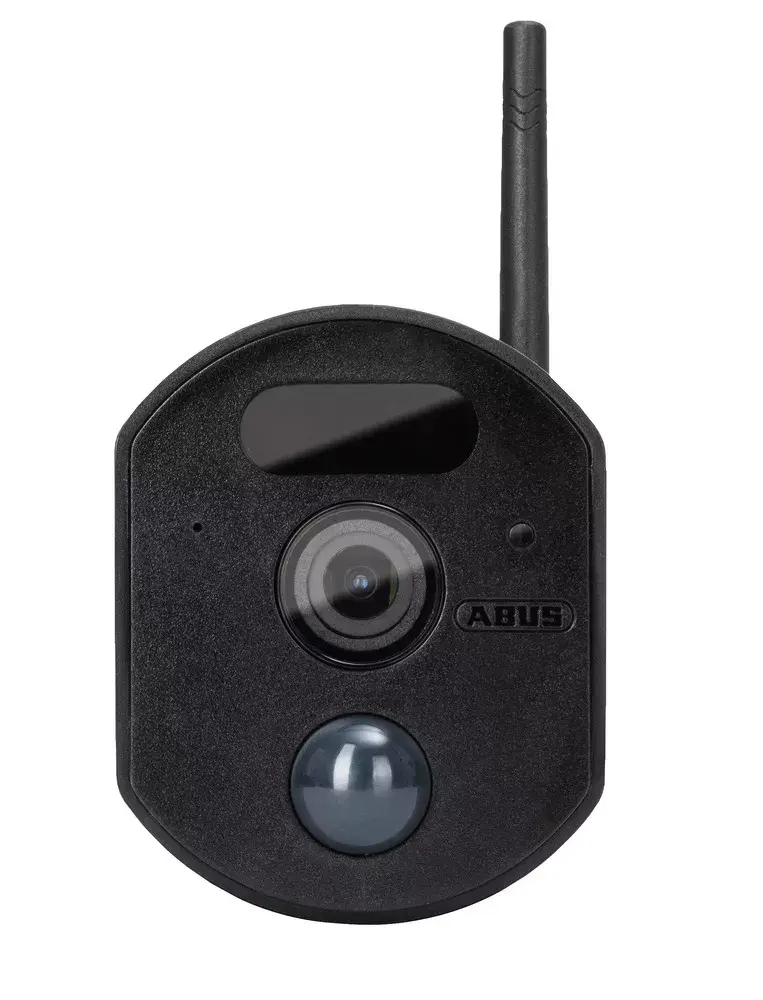

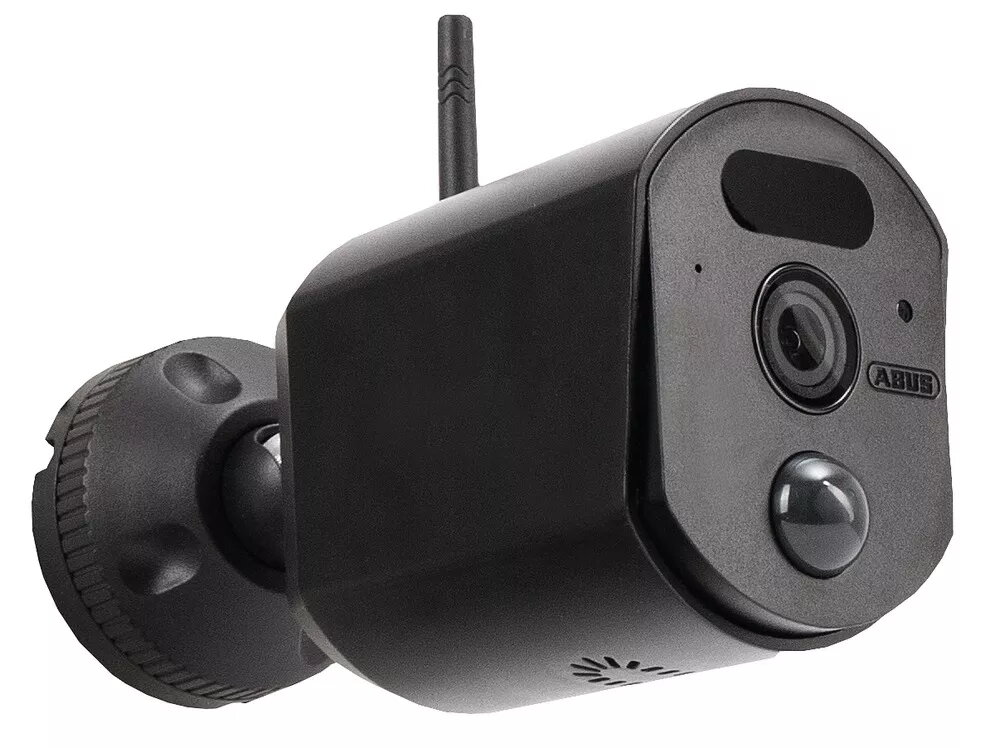

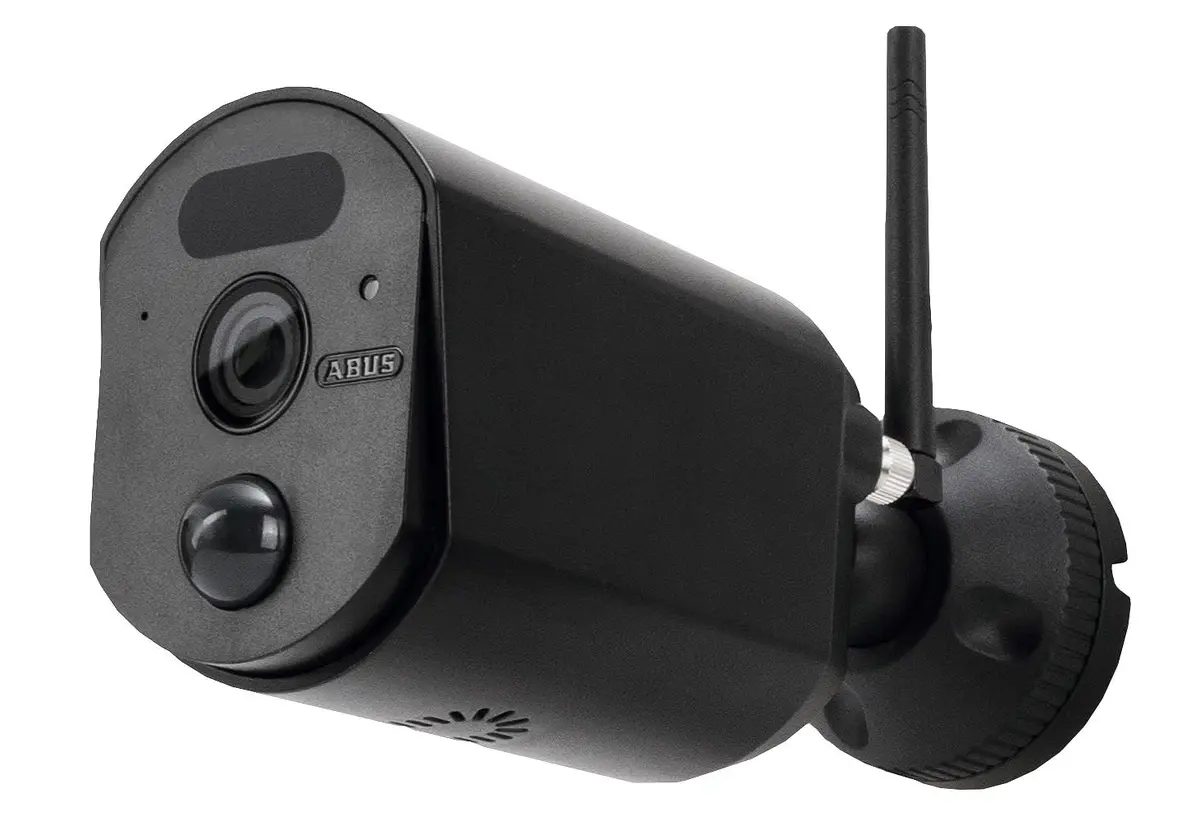

IP security camera ABUS PPDF17520 Bullet 2305 x 1296 pixels

IP security camera ABUS PPDF17520 Bullet Photo 1
IP security camera ABUS PPDF17520 Bullet Photo 2
IP security camera ABUS PPDF17520 Bullet Photo 3
IP security camera ABUS PPDF17520 Bullet Photo 1
IP security camera ABUS PPDF17520 Bullet Photo 2
IP security camera ABUS PPDF17520 Bullet Photo 3
IP security camera ABUS PPDF17520 Bullet Photo 1
IP security camera ABUS PPDF17520 Bullet Photo 2
IP security camera ABUS PPDF17520 Bullet Photo 3
IP security camera ABUS PPDF17520 Bullet Photo 1
IP security camera ABUS PPDF17520 Bullet Photo 2
IP security camera ABUS PPDF17520 Bullet Photo 3
IP security camera ABUS PPDF17520 Bullet 2305 x 1296 pixels
168.49 €
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

IP security camera ABUS PPDF17520 Bullet 2305 x 1296 pixels

{{email}}
You keep track of price changes

IP security camera ABUS PPDF17520 Bullet 2305 x 1296 pixels

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}
Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ABUS PPDF17520 is a wireless IP security camera with a resolution of 2305 x 1296 pixels. It features a bullet form factor, ideal for wall mounting. With a minimum illumination of 0.1 lx, it captures clear images even in low light. The camera has a horizontal viewing angle of 82° and a vertical angle of 42°, providing a wide field of view. Its CMOS sensor and 4 mm focal length ensure high-quality video surveillance up to 50 meters away.
Available for order: 11 pcs.
Warranty: 2 Years
SKU: 4956888
Learn more
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

All delivery methods Hide details
Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
24.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
27.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
27.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
More about delivery methods
payment
Payment Methods:
Bank transfer
More about payment methods
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ABUS PPDF17520 is a wireless IP security bullet camera with a resolution of 2305 x 1296 pixels and a 4 mm focal length. Designed for wall mounting, the camera delivers day-and-night video without relying on internet, Wi‑Fi, an app or a smartphone—only a power connection is required. Video data and device settings are encrypted and transmitted wirelessly to the monitor of the ABUS EasyLook BasicSet. Up to four cameras can be paired with one monitor and the display can show all live images simultaneously or switch between a quad view and single-camera views with a simple gesture.

Advantages

The camera provides high-resolution video (2305 x 1296 px) and a wide field of view (approximately 82° horizontal, 42° vertical), enabling detailed surveillance of entrances, terraces, garages and gardens. Low-light sensitivity (min. 0.1 lx) ensures usable images in dim conditions. Wireless connectivity to the ABUS EasyLook monitor enables quick installation and encrypted point-to-point transmission without needing network configuration or cloud services. The bullet form factor and wall mount design simplify installation and aiming.

Suitable for

  • Monitoring home entrances and driveways
  • Surveillance of terraces, gardens and outdoor areas
  • Shopfront and small business perimeter monitoring
  • Integration into ABUS EasyLook BasicSet multi-camera setups (up to 4 cameras per monitor)

Key specifications

  • Model: ABUS PPDF17520 (MPN: PPDF17520, EAN: 4003318960796)
  • Resolution: 2305 × 1296 pixels
  • Sensor: CMOS
  • Lens focal length: 4 mm
  • Field of view: ~82° horizontal / ~42° vertical
  • Minimum illumination: 0.1 lx
  • Frame rate: 15 fps
  • Mounting type: Wall
  • Connectivity: Wireless (no Wi‑Fi required)
  • Power: requires external power connection
  • Color: Black
  • Weight: 0.3 kg

How to use

Mount the bullet camera on a suitable exterior wall using the included mounting bracket and secure the power connection. Power the camera and follow the ABUS EasyLook BasicSet pairing procedure to add the camera to the monitor; commissioning is completed in a few steps and does not require network credentials or an app. Use the monitor to view live images, switch between individual cameras or enable the quad view to see all paired cameras at once. Adjust the camera angle after power-up to obtain the desired field of view.

Usage recommendations

Install the camera under a small roof or protected eave to reduce direct exposure to weather. Position the device at a height that prevents tampering while maintaining the intended coverage area; for low-light performance, avoid direct bright light sources in the field of view.

Specifications

Number of cameras: The quantity of cameras that product can support.
1
Built-in HDD: The product has a hard drive built into it.
No
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
No
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
No
Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
3 MP
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2305 x 1296
Night vision: Night vision is technology which allows you to see in low light conditions.
Yes
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Mounting type: Type of mounting e.g. wall mounting.
Wall
Form factor: The shape or design of the product.
Bullet
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wireless
Type: Characteristics of the device.
IP security camera
Power source type: What the power source is.
DC
Product colour: The colour e.g. red, blue, green, black, white.
Black
All features

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.3 kg
Height: The measurement of the product from head to foot or from base to top.
77 mm
Depth: The distance from the front to the back of something.
161 mm
Width: The measurement or extent of something from side to side.
61 mm

Features

Number of cameras: The quantity of cameras that product can support.
1

Operational conditions

Operating relative humidity (H-H):
30 - 90
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-10 - 50

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
3.6 W
Power source type: What the power source is.
DC

Storage

Built-in HDD: The product has a hard drive built into it.
No

Network

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
WPA2
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
No
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
No

Audio

Built-in microphone: Microphone that is found inside the product.
Yes
Audio system: System used to play music or speech.
2-way
Built-in speaker(s): The device contains speaker(s) to produce sound.
Yes

Video

Frame rate:
15 fps
Video formats supported: The type of video formats that can be used by this device.
H.264+
Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
3 MP
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2305 x 1296

Night vision

Infra-red wavelength:
940 nm
LED type:
IR
Night vision distance:
15
Night vision: Night vision is technology which allows you to see in low light conditions.
Yes

Lens system

Focal length range: Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).
4

Image sensor

Optical sensor size: Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25.4 / 3
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS

Camera

White balance: Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly.
Auto
Lens viewing angle, vertical:
42
Lens viewing angle, horizontal:
82
Minimum illumination: Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
0.1 lx

Design

Weatherproof:
Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP66
Housing material: What the casing of the product is made of.
Plastic
Product colour: The colour e.g. red, blue, green, black, white.
Black
Mounting type: Type of mounting e.g. wall mounting.
Wall
Form factor: The shape or design of the product.
Bullet

Performance

Operating frequency: The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz.
2403 - 2478
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
External
Antennas quantity:
1
Built-in light: There is a light which is inside/on the outside of the product.
Yes
Day/night mode:
Yes
Maximum operating distance: The maximum distance from which you can operate the device.
50 m
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wireless
Type: Characteristics of the device.
IP security camera
Hide Show all

Instructions

mmo_100744469_1671184192_8644_32645.pdf
abus-PPDF17520-4956888.pdf
abus-PPDF17520-4956888(1).pdf

Description

Instructions

mmo_100744469_1671184192_8644_32645.pdf
abus-PPDF17520-4956888.pdf
abus-PPDF17520-4956888(1).pdf
