header-product ACT 1x2 DisplayPort 1.4 MST Splitter
113.99 €

ACT 1x2 DisplayPort 1.4 MST Splitter

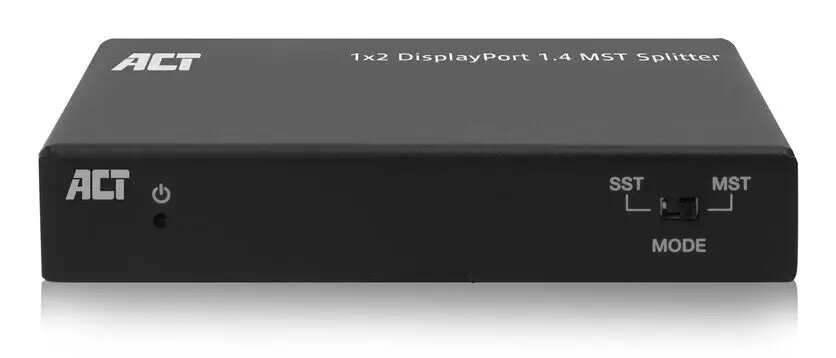

ACT AC7720 video splitter AC7720 Photo 1

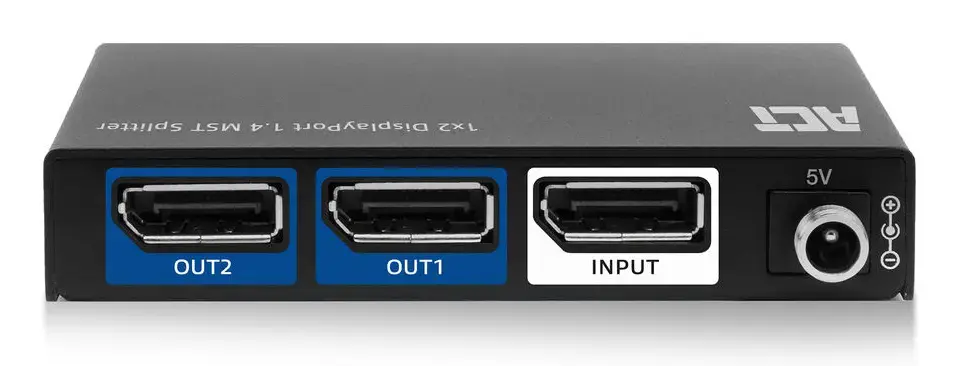

ACT AC7720 video splitter AC7720 Photo 2
ACT AC7720 video splitter AC7720 Photo 1
ACT AC7720 video splitter AC7720 Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

ACT 1x2 DisplayPort 1.4 MST Splitter

{{email}}
You keep track of price changes

ACT 1x2 DisplayPort 1.4 MST Splitter

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

ACT 1x2 DisplayPort 1.4 MST Splitter. Video port type: DisplayPort, Video out: 2x DisplayPort. Maximum resolution: 7680 x 4320 pixels, Product colour: Black, HD type: 8K Ultra HD. Width: 95 mm, Depth: 68 mm, Height: 18 mm. Quantity per pack: 1 pc(s), Package type: Box
Available for order: 300 pcs.
Warranty: 2 Years
SKU: 12296659
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT 1x2 DisplayPort 1.4 MST Splitter (AC7720) splits a single DisplayPort source to two DisplayPort outputs, supporting both Single Stream Transport (SST) for mirrored displays and Multi Stream Transport (MST) for an extended desktop. With a total bandwidth of 32.4 Gbps, the unit can deliver up to 8K@30Hz in SST mode or up to 4K@60Hz per display in MST mode depending on source capability. The splitter includes EDID auto negotiation, support for Dual-Mode DisplayPort (DP++), a screw-locked power connector to prevent accidental disconnection, detachable mounting brackets for flexible installation, and 5.1 channel audio support.

Advantages

The splitter offers flexible display configurations—mirror or extend—while preserving high resolutions and color fidelity thanks to DisplayPort 1.4 and DSC 1.2 support. EDID negotiation simplifies compatibility with a variety of source devices and monitors. Physical features such as a secured power jack and removable mounting brackets make the device suitable for both desktop and fixed installations.

Suitable for

  • Connecting one DisplayPort source to two DisplayPort monitors for mirrored output (SST).
  • Extending a desktop across two monitors from a single DisplayPort source (MST).
  • Environments requiring wall- or desk-mounted splitters using the detachable brackets.
  • Setups that need 5.1 channel audio over DisplayPort.

When it may not be suitable

The maximum per-display resolution and refresh rate depend on the total bandwidth available from the source and the number of chained displays; not all source devices will support 4K@60Hz per display in MST mode. The splitter uses DisplayPort connections; to connect HDMI or DVI displays you must use a passive DP-to-HDMI/DVI adapter and ensure the source supports Dual-Mode DisplayPort (DP++).

Key specifications

  • Video standard: DisplayPort 1.4 with Display Stream Compression (DSC) 1.2
  • Supported modes: SST (mirroring) and MST (extended desktop)
  • Maximum bandwidth: 32.4 Gbps
  • Maximum resolution: up to 8K (7680 x 4320) at 30 Hz in SST; up to 4K at 60 Hz per display in MST (depending on source capability)
  • Audio: supports 5.1 channel audio over DisplayPort
  • Outputs: 2x DisplayPort (plus pass-through for daisy chaining)
  • Power: DC-in with screw-lock connector to prevent accidental disconnection
  • Dimensions: 95 mm (W) x 68 mm (D) x 18 mm (H)
  • Colour: Black

How to use

Connect the DisplayPort output of your source device to the splitter input, then connect up to two DisplayPort monitors to the splitter outputs. Select SST mode to mirror the same image on both displays or MST mode to extend the desktop across both screens using the mode switch. If you need to connect an HDMI or DVI monitor, use a passive DisplayPort-to-HDMI/DVI adapter and ensure your source supports DP++. Secure the power cable using the screw-lock connector and mount the splitter using the detachable brackets if required. If chaining additional DisplayPort monitors, connect them via the splitter’s daisy-chain output and be aware that available bandwidth will be shared among displays.

What to consider before purchase

  • Confirm your source device supports the required bandwidth and MST if you intend to use extended desktop mode at 4K@60Hz.
  • Verify connected monitors support the resolutions and refresh rates you need.
  • If connecting HDMI/DVI displays, ensure the source supports DP++ for passive adapters to work.
  • Account for shared bandwidth when daisy chaining multiple monitors; resolution per display may be reduced.

Usage recommendations

For best results with extended desktop (MST), use a source with DisplayPort 1.4 output and sufficient bandwidth; when mirroring high-resolution content, switch to SST mode to achieve up to 8K@30Hz. Ensure cables and adapters are certified for DisplayPort 1.4 to maintain signal integrity.

Specifications

Weight:
0.172 kg
Product colour:
Black
All features
AC adapter included:
Yes
Video out:
2x DisplayPort
DC-in jack:
Yes
Video port type:
DisplayPort
Video ports quantity:
3
HD type:
8K Ultra HD

Features

Product colour:
Black
Data transfer rate:
32.4 Gbit/s
Maximum resolution:
7680 x 4320
Maximum refresh rate:
60 Hz

Weight & dimensions

Weight:
0.172 kg

Packaging content

Quantity per pack:
1 pc(s)

Other features

Height:
18 mm
Width:
95 mm
Depth:
68 mm

Packaging data

Package type:
Box

Description
