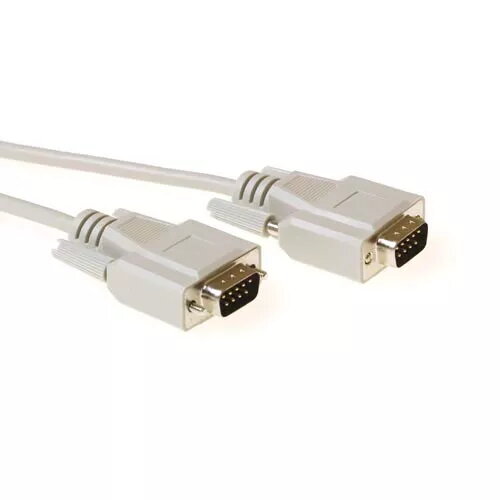

ACT Serial Cable 5m 9-pin D-sub Male to 9-pin D-sub Male 1:1 Connection

The ACT Serial Cable 5m 9-pin D-sub Male to 9-pin D-sub Male 1:1 Connection is a reliable solution for establishing stable serial communication between various computing and industrial devices. Featuring a length of five meters, this connection cable provides extended reach for setups where equipment cannot be placed in close proximity. Equipped with a 9-pin D-sub male connector on both ends and configured with a 1:1 pinout, it ensures direct and accurate signal transmission for compatible hardware. The integrated molded hoods and molded connectors enhance overall durability and provide strain relief, minimizing wear and tear during daily operation.

Advantages

This serial cable offers dependable performance through its straightforward 1:1 wired configuration, ensuring that data signals are transmitted accurately without signal routing discrepancies between compatible ports. The generous five-meter length allows for flexible placement of peripherals and legacy equipment in office environments, workshops, or technical installations. The inclusion of molded connectors and molded hoods reinforces the connection points, protecting internal wiring from tension and physical stress to extend the operational lifespan of the cable in demanding environments.

Suitable for

• Connecting legacy computers to serial printers or plotters
• Linking industrial automation equipment and control units
• Setting up serial communication for networking hardware and scientific instruments
• Extending the reach between desktop terminals and peripheral devices requiring a 9-pin D-sub interface

When it may not be suitable

This product is not designed for modern consumer electronics lacking legacy serial ports, such as standard home laptops or recent desktop motherboards without an RS-232 interface. It is also unsuitable for video signal transmission, power supply applications, or connections requiring null-modem crossover wiring rather than a straight-through 1:1 pinout.

Key specifications

• Cable length: 5 meters
• Connector type 1: 9-pin D-sub male (DB 9 M)
• Connector type 2: 9-pin D-sub male (DB 9 M)
• Wiring configuration: 1:1 direct connection
• Construction feature: Molded hoods and connectors

How to use

To use the cable, first ensure that all connected devices are powered off to prevent electrical surges or port damage. Align the 9-pin D-sub male connector with the serial port on your first device, ensuring the pins match the socket configuration, and gently push it in until secure. Tighten any thumbscrews if present on your equipment to lock the connector firmly in place. Repeat the same process for the second device at the other end of the cable. Once both ends are securely attached, power on your equipment and configure the serial communication settings in your software as required.

What to consider before purchase

• Verify that both of your devices feature a 9-pin D-sub female serial port to ensure physical compatibility
• Confirm whether your specific application requires a 1:1 straight-through connection or a crossover null-modem pinout
• Measure the distance between your devices to ensure the five-meter length is sufficient without creating excessive cable slack

Usage recommendations: Route the cable away from heavy foot traffic areas and sharp edges to prevent physical damage to the outer jacket. Avoid sharp bends near the molded connectors to maintain internal wire integrity over extended periods of use.
