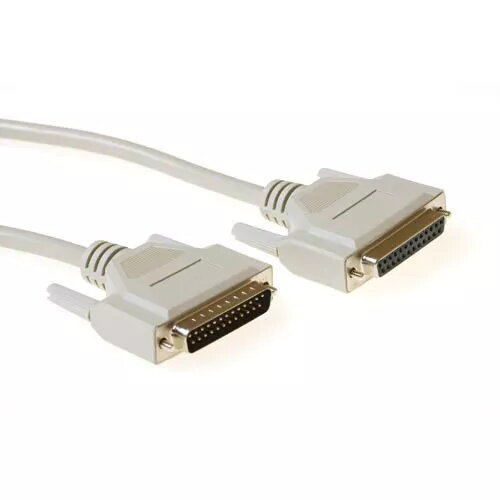

ACT 10 Metre Serial 1:1 Connection Cable 25 Pin D-Sub Male to 25 Pin D-Sub Female White

The ACT 10 Metre Serial 1:1 Connection Cable is designed to provide reliable and stable data transmission for legacy serial devices, peripherals, and industrial equipment. Featuring a 25-pin D-sub male connector on one end and a 25-pin D-sub female connector on the other, this cable enables direct pin-to-pin communication over extended distances. Measuring 10 metres in length and finished in a clean white colour, it allows for flexible placement of equipment in office, laboratory, or industrial environments where a longer reach is required.

Advantages

This serial connection cable utilizes a 1:1 direct pin-to-pin wiring configuration, ensuring seamless compatibility and accurate signal transfer for standard serial communication tasks. The inclusion of durable molded hoods on both connectors provides robust strain relief, protecting the internal connections from daily wear and tear and enhancing the overall longevity of the cable. The generous 10-metre length offers exceptional installation flexibility, allowing devices to be positioned comfortably apart without the immediate need for additional signal repeaters or extension adapters.

Suitable for

• Connecting legacy serial peripherals to computers or controllers
• Extending existing RS-232 serial connections in industrial settings
• Data transmission in laboratory and testing equipment setups
• Linking specialized office machines and older networking hardware

This cable may not be suitable for modern consumer electronics, devices lacking a 25-pin D-sub interface, or applications requiring USB, HDMI, or network data speeds. It is specifically engineered for legacy serial communication and will not function with non-compatible digital or high-speed video interfaces.

Key specifications

• Cable length: 10 metres
• Connector 1: 25-pin D-Sub male
• Connector 2: 25-pin D-Sub female
• Wiring configuration: 1:1 direct connection
• Colour: White
• Molded hoods for strain relief

To use the cable, first ensure that all connected devices are powered off to prevent accidental electrical surges or port damage. Align the 25-pin D-sub male connector with the serial port on the host device and gently push it in, then secure the connection using the integrated thumbscrews if available. Connect the 25-pin D-sub female end to the corresponding cable or peripheral device, ensuring a secure fit. Once both ends are firmly attached, power on your equipment and verify the communication link through your operating system or device software.

What to consider before purchase

• Verify that both of your devices feature compatible 25-pin D-sub serial ports
• Confirm whether your specific application requires a 1:1 straight-through connection or a null-modem crossover configuration
• Measure the required distance to ensure the 10-metre length meets your setup needs without excessive slack

Always route the cable away from heavy foot traffic, sharp edges, and major electrical interference sources to maintain optimal signal integrity and prevent physical damage over time.
