ACT RL4201 10 meter Multimode 50/125 OM3 Indoor/Outdoor Fiber Optic Cable 8 Fibers with LC Connectors
Offer for a legal entity, non-cash payment.
Short description
Cheapest delivery:
Unisend LV
Product information
Description

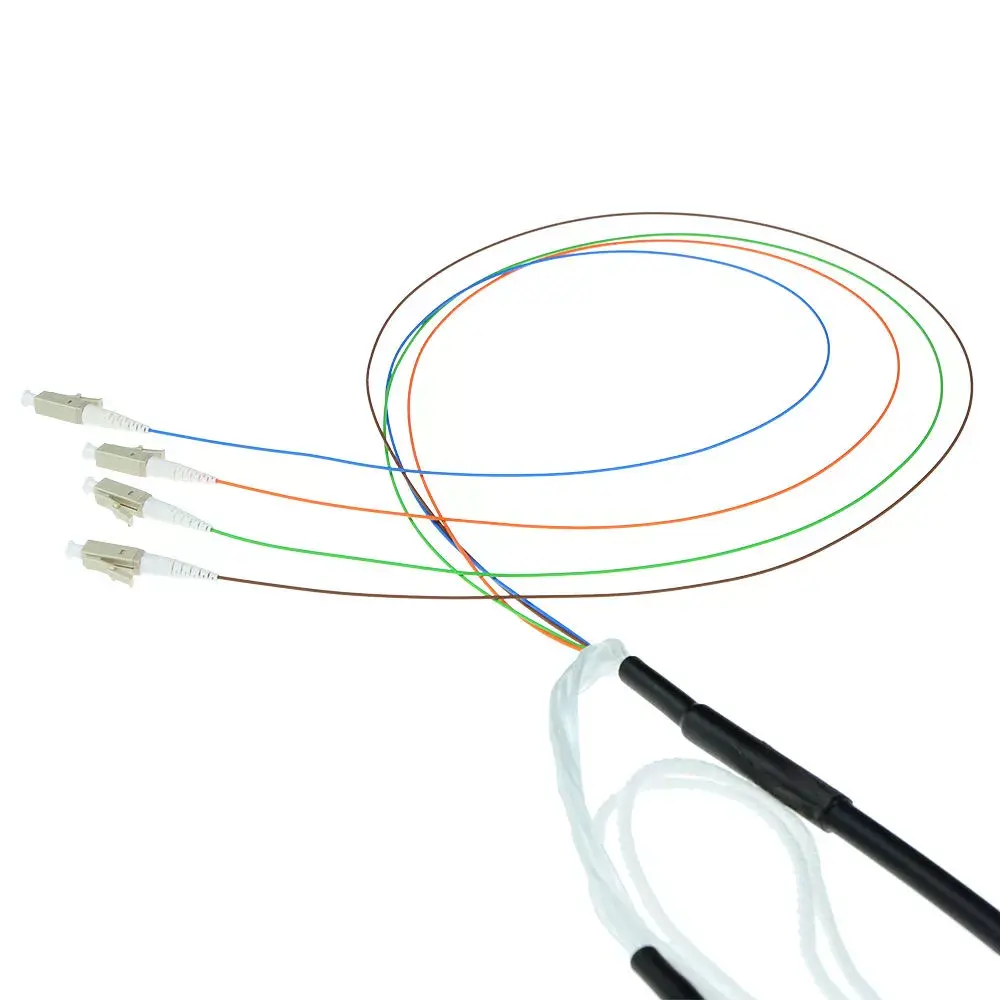

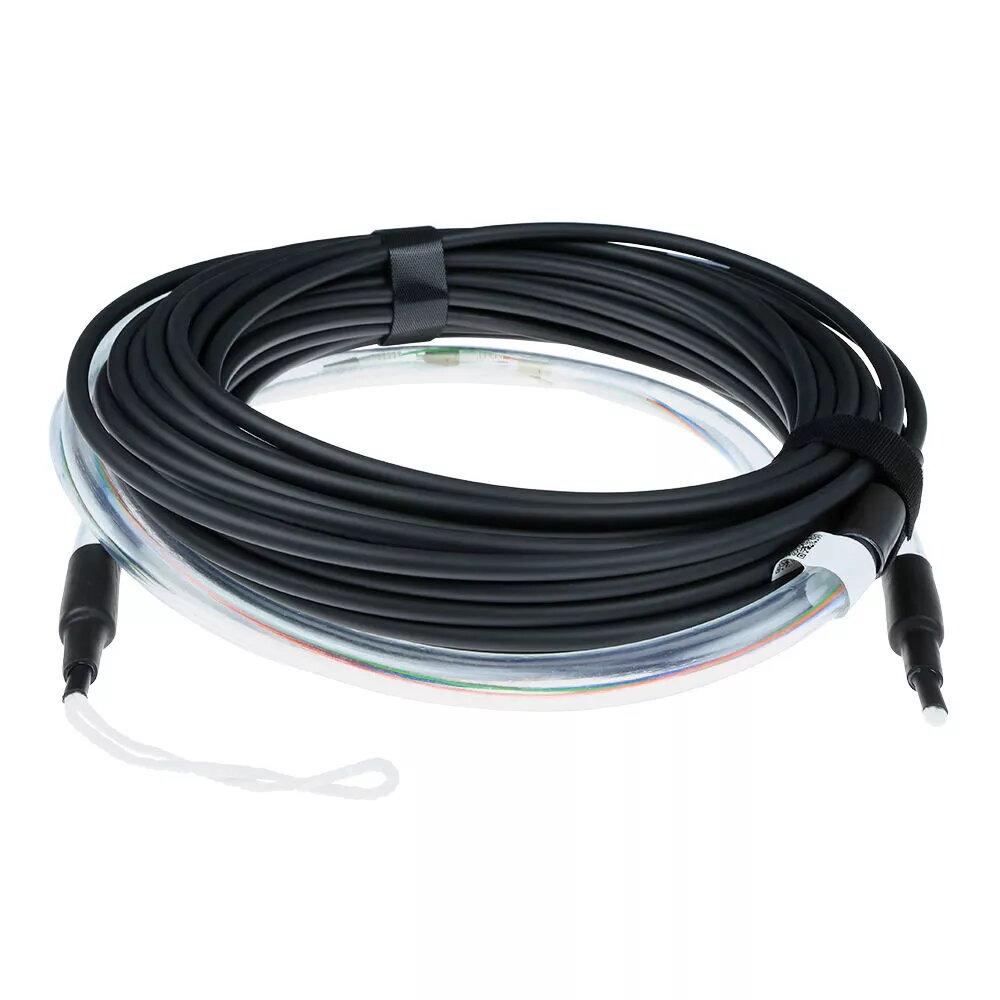

The ACT RL4201 10 meter Multimode 50/125 OM3 Indoor/Outdoor Fiber Optic Cable is a pre-terminated network solution designed for efficient high-speed data transmission. Equipped with 8 fibers and LC connectors on both ends, this high-performance cable allows network administrators and system integrators to establish reliable connections in local area networks and data centers without the need for complex on-site splicing or specialized testing equipment.
Advantages

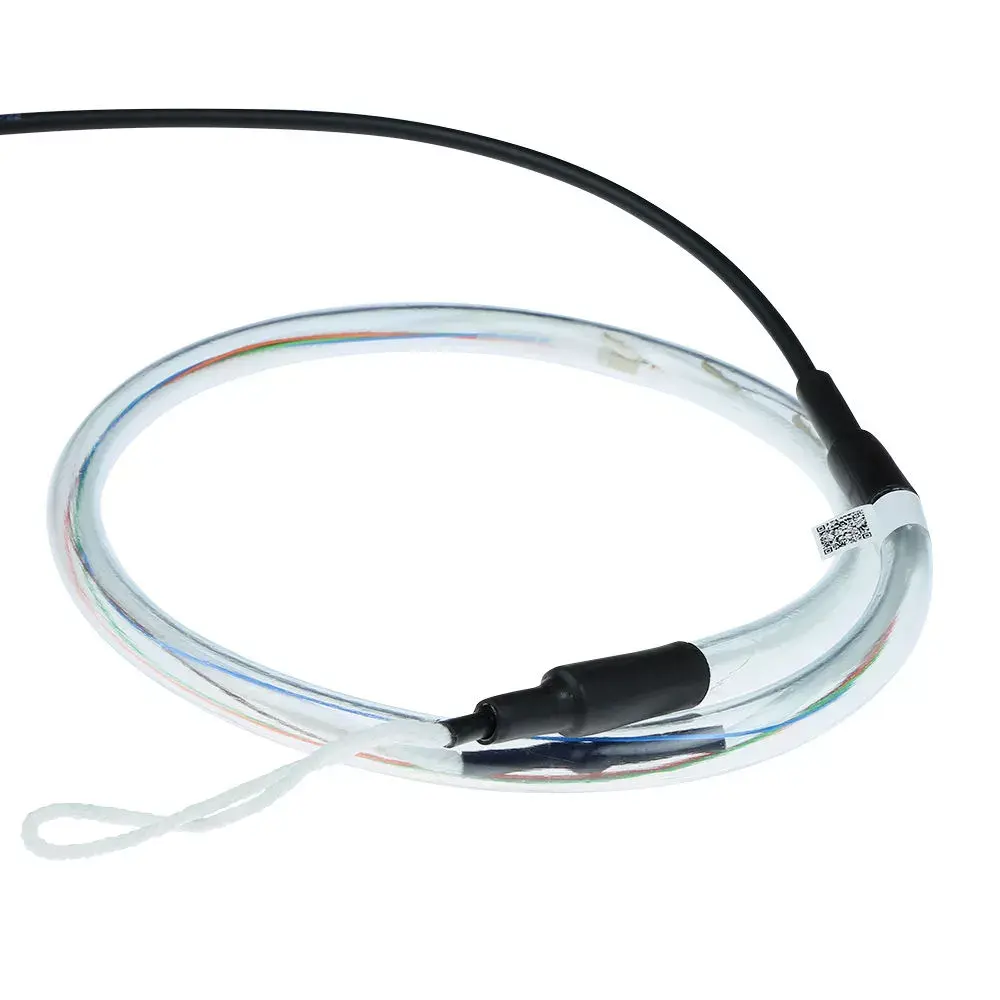

This pre-terminated fiber optic cable significantly reduces installation time by up to eighty percent compared to traditional field-terminated solutions. Because the connectors are factory-attached and tested in a clean room production environment, users benefit from consistent optical performance and an individual test report detailing attenuation and insertion loss. The robust construction includes a transparent protective tube on both sides that shields the vulnerable connectors during pulling and routing, supporting up to 350 Newtons of pulling force while remaining compact enough to fit easily through standard installation tubes.
Suitable for
- Connecting different rooms within a single building
- Installing network links between different building floors
- Linking two separate buildings on a site
- Horizontal and vertical structured cabling installations
When it may not be suitable
This multimode optical cable is not designed for long-distance telecommunications spanning many kilometers, as multimode fiber is intended for shorter campus and building distances. Additionally, it may not be appropriate if the fixed 10-meter length is either too short or excessively long for the specific physical routing path required.
Key specifications
- Cable length: 10 meters
- Fiber optic type: OM3 multimode
- Core diameter: 50 µm
- Connector type: 8x LC Male to 8x LC Male
- Connector polish type: UPC
- Color: Black
- Maximum pulling force: 350 N
How to use
Carefully uncoil the fiber optic cable and plan your routing path through ceilings, walls, or conduits while keeping the protective transparent tube intact over the LC connectors. Gently pull the cable through the conduit using the integrated protective mechanism, ensuring the maximum pulling force of 350 Newtons is not exceeded. Once the cable is safely in place, remove the protective tube, inspect the LC connectors for cleanliness, and plug them securely into the corresponding network ports.
What to consider before purchase
- Verify that the 10-meter length precisely matches the distance required between your network devices
- Confirm that your networking equipment is compatible with OM3 multimode fiber and LC connectors
- Check the physical pathway and conduit dimensions to ensure the cable assembly can pass through smoothly
Always inspect and clean the fiber optic connectors before making final connections, and avoid exceeding the recommended bending radius and pulling limits during installation to maintain optimal network performance.
- Operating temperature (T-T):
- -20 - 70
- Cable length:
- 10 m
- Product colour:
- Black
- Connector 1:
- 8x LC
- Connector 2:
- 8x LC
- Cable diameter:
- 7 mm
- Insertion loss:
- 0.1 dB
- Fiber mode structure:
- Multi-mode
- Core diameter:
- 50 µm
- Cladding diameter:
- 125 µm
- Connector 1 gender:
- Male
- Connector 2 gender:
- Male
- Quantity per pack:
- 1 pc(s)
- Harmonized System (HS) code:
- 85447000
- Fibre optic type:
- OM3
- Return loss:
- 35 dB
- Connector polish type:
- UPC
