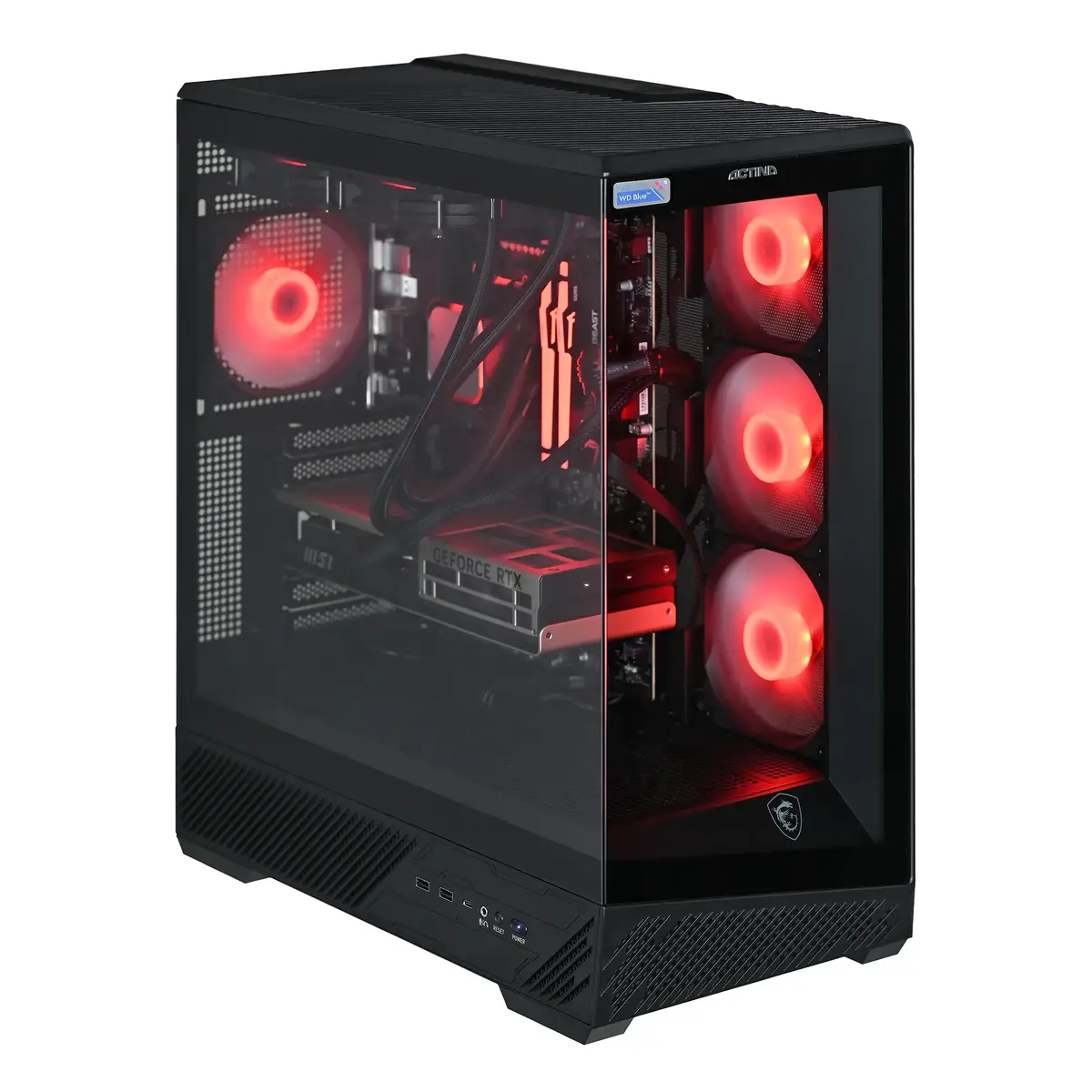

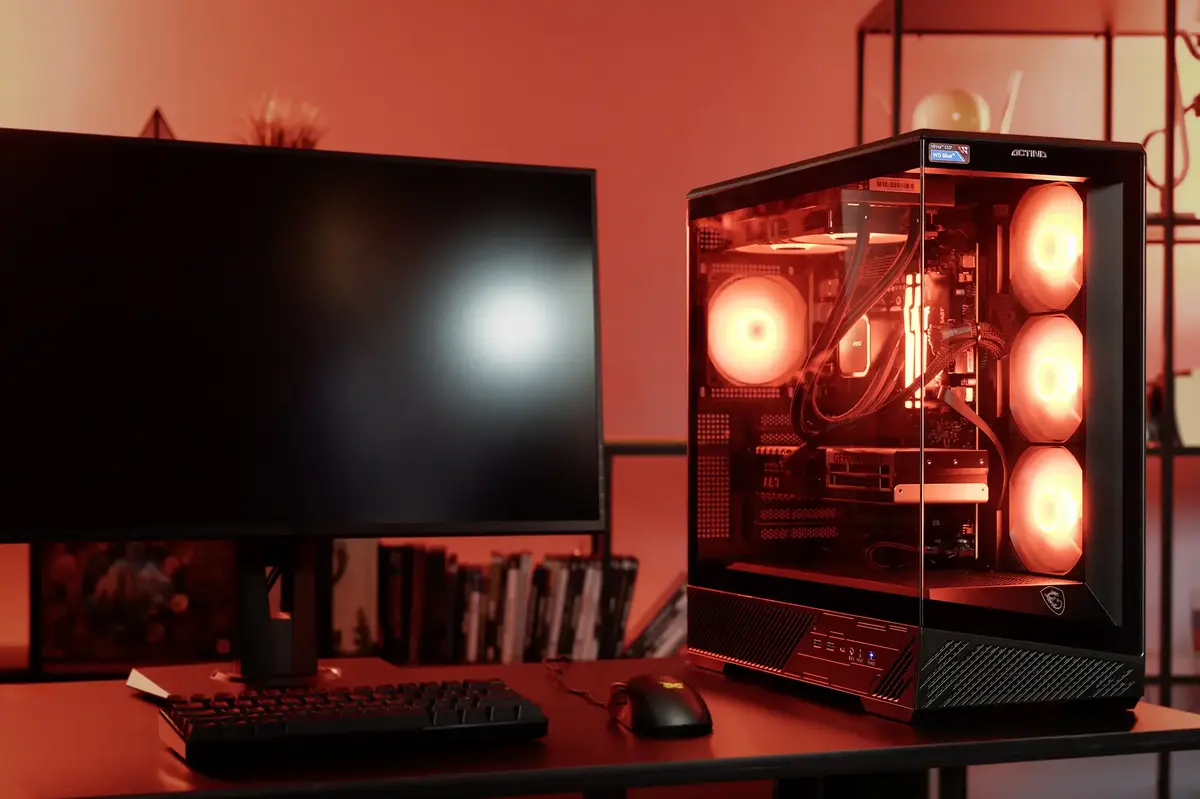

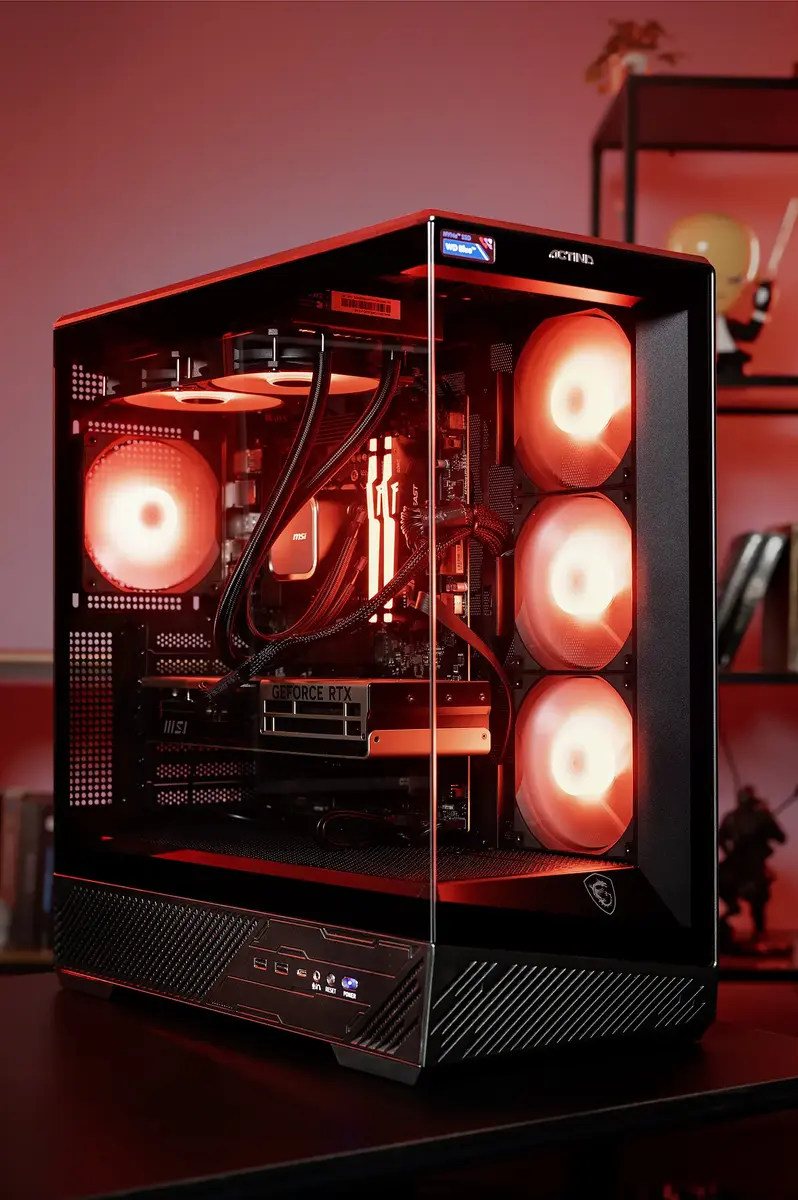

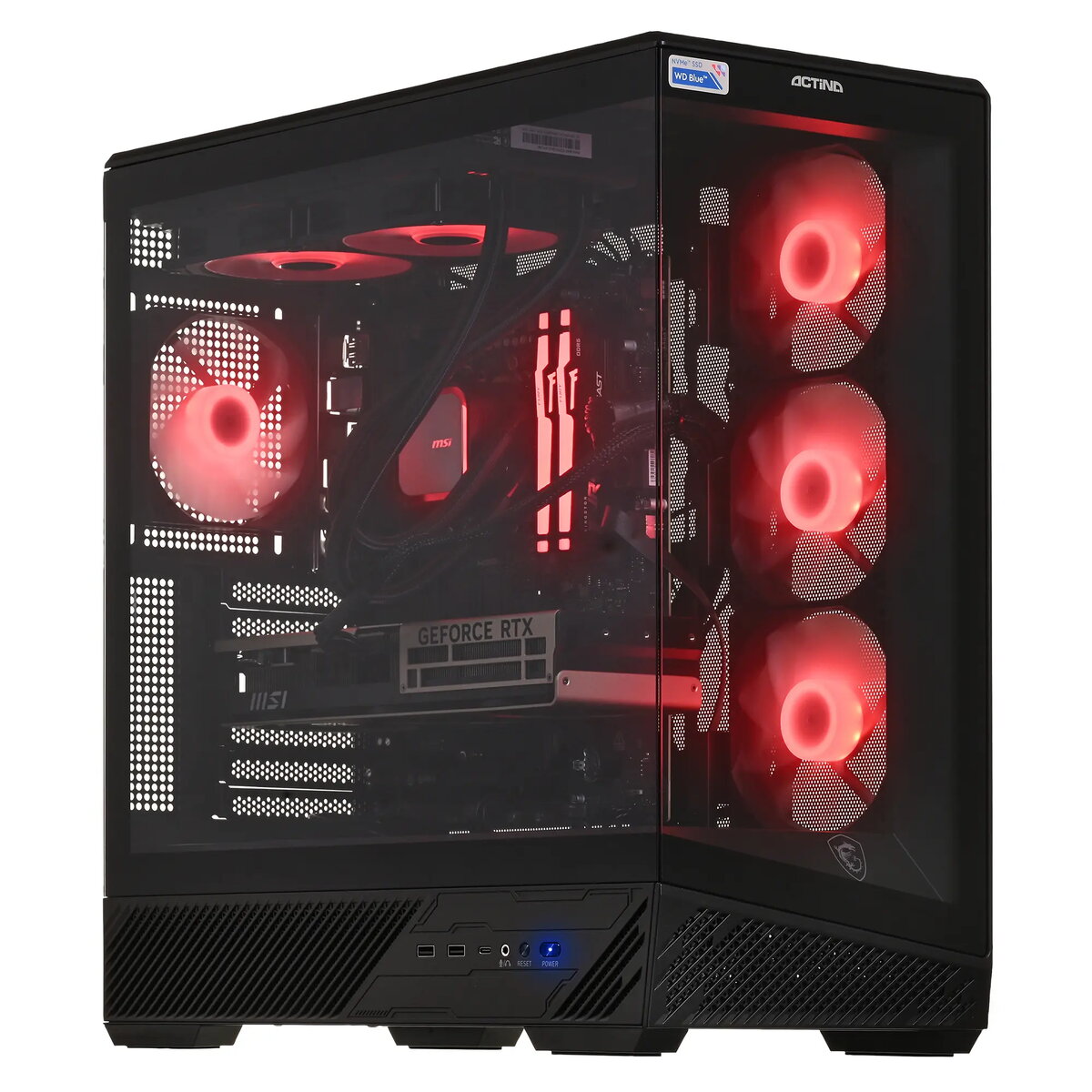

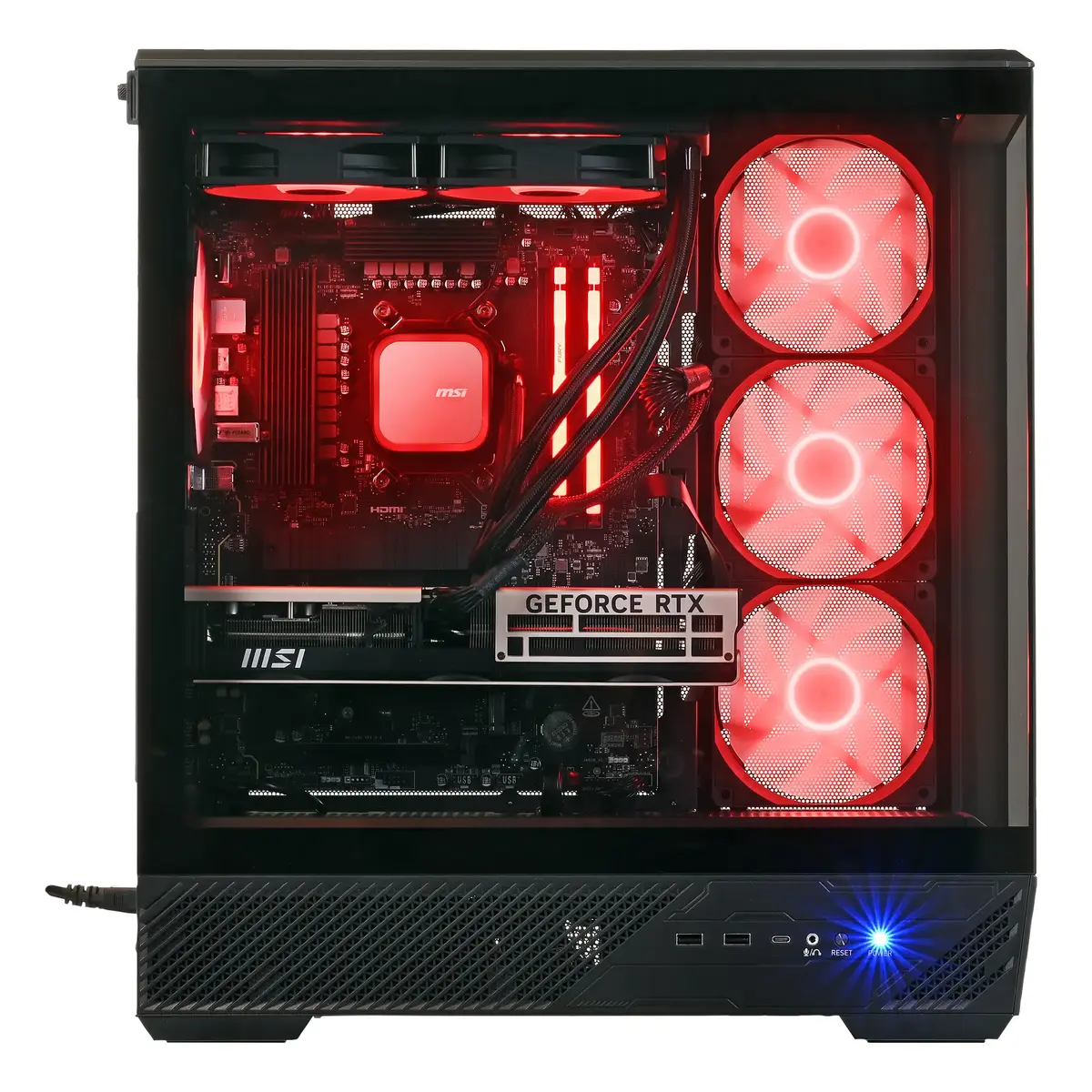

Desktop PC Actina Intel Core Ultra 5 245KF, 3.6–5.2 GHz, 32 GB DDR5 6000 MHz, 1 TB SSD, NVIDIA GeForce RTX 5070 12 GB, Midi Tower Black

Viewing window: Transparent window in the device, which is created to view the progress of performance.

Yes

Refurbished:

No

Graphics card USB Type-C ports quantity:

0

PCI Express x16 (Gen 4.x) slots:

3

Powered by:

Intel

Internal components:

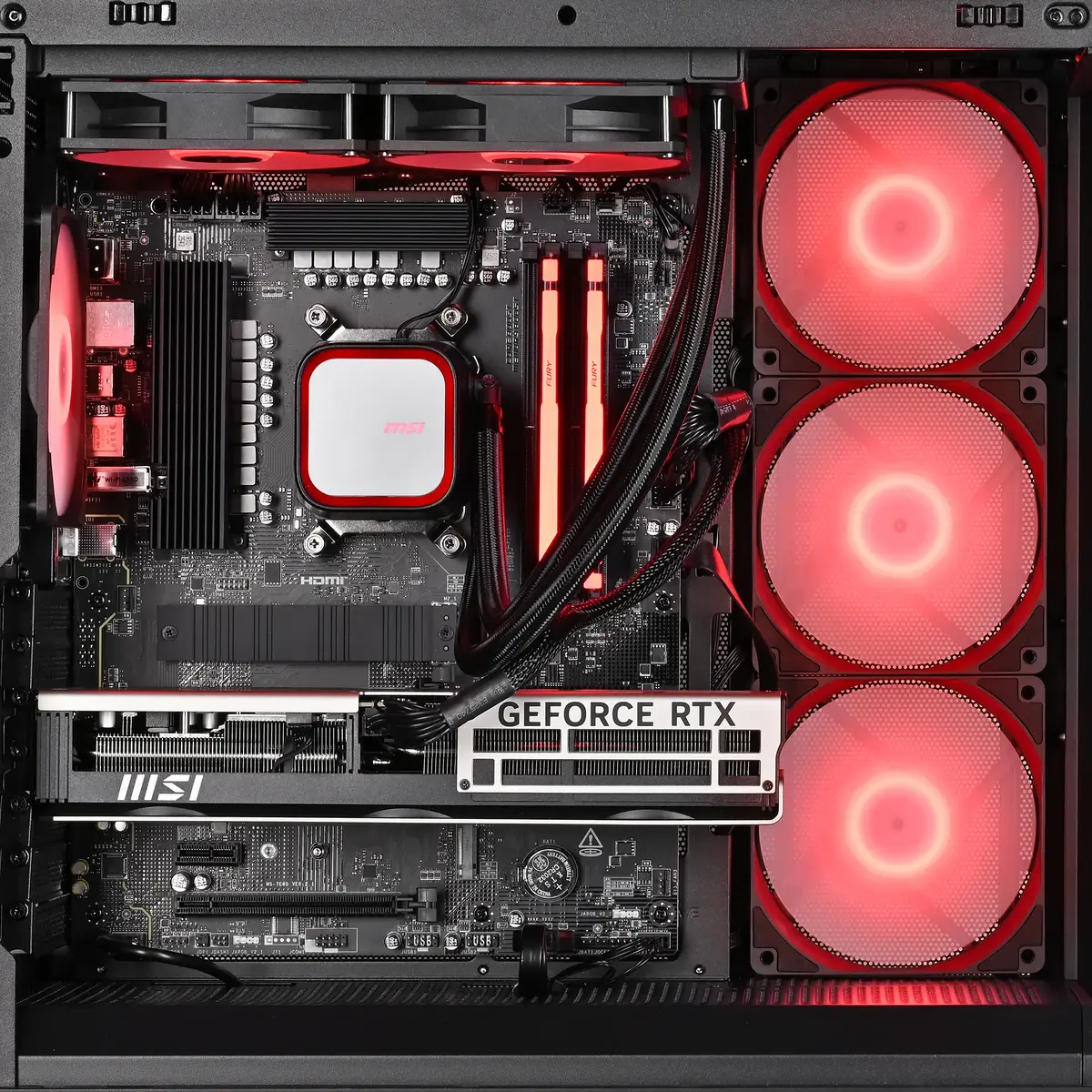

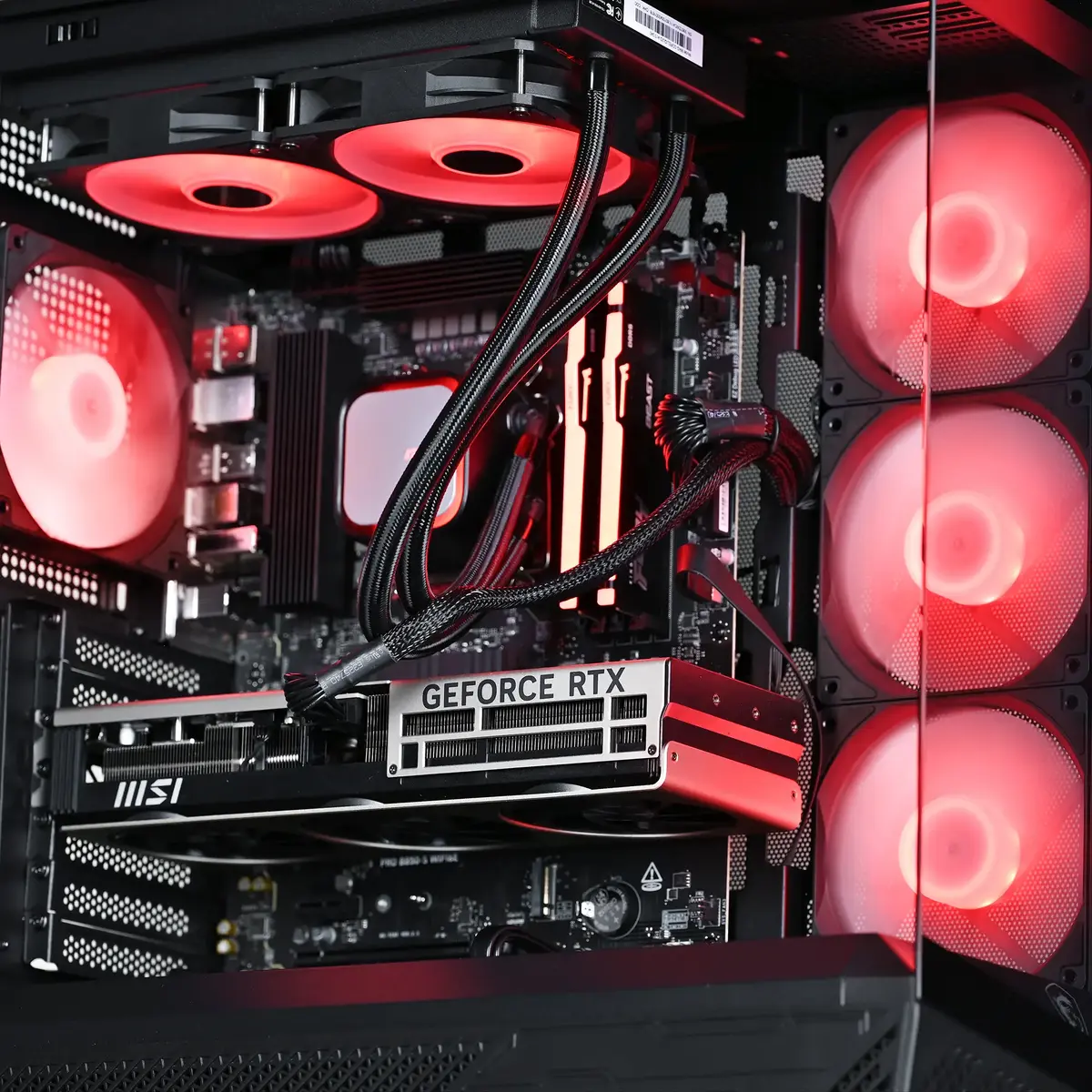

MSI PRO B860-P WIFI / NVIDIA GeForce RTX 5070 / WD Blue SN5100 / MSI MAG PANO 130R PZ

Ray tracing acceleration:

Yes

Fiber NIC port (Flex I/O):

No

Intel® Thunderbolt 5:

No

Thunderbolt 5 ports quantity:

0

Other features

Special features:

The specification and description are for illustrative purposes only.

Number of processors installed: Number of processors in the product.

1

Chassis type: The type of rigid framework onto which is the hosuing for device components.

Midi Tower

Cabling technology: Type of cable technology performance.

10/100/1000Base-T(X)

Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

750 W

Motherboard form factor: Design of the motherboard (ATX, BTX etc).

ATX

Parallel ports quantity: The number of parallel ports. Parallel ports, also known as printer ports, are a type of interface found on computers (personal and otherwise) for connecting peripherals. In computing, a parallel port is a parallel communication physical interface. Parallel ports were common in the 1980s and '90s (mostly conforming to industry standard IEEE 1284) but are now being replaced by USBs and other ports.

0

Line-in:

Yes

Line-out:

Yes

Display included: This product includes a display.

No

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1

TV tuner integrated: Device has an in-built TV tuner.

No

Number of 5.25" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives.

0

Number of 3.5" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.

2

Market positioning: Under which category can the device be positioned in the market, e.g. camera phone.

Gaming

Virtual Reality (VR) ready:

Yes

Technical details

Safety warning:

Do not open the computer case without disconnecting it from the power source. Avoid contact with water or other liquids. If the battery is damaged or spilled, avoid contact with the material and contact service immediately.

Packaging content

Keyboard included: A keyboard is part of the bundle/set.

No

Mouse included: A mouse is included with this product.

No

Performance

Audio chip:

Realtek ALC897

Motherboard chipset: The chipset connects the microprocessor to the rest of the motherboard.

Intel B860

Product type: The sub-category of the product.

PC

Optical drive type: An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.

No

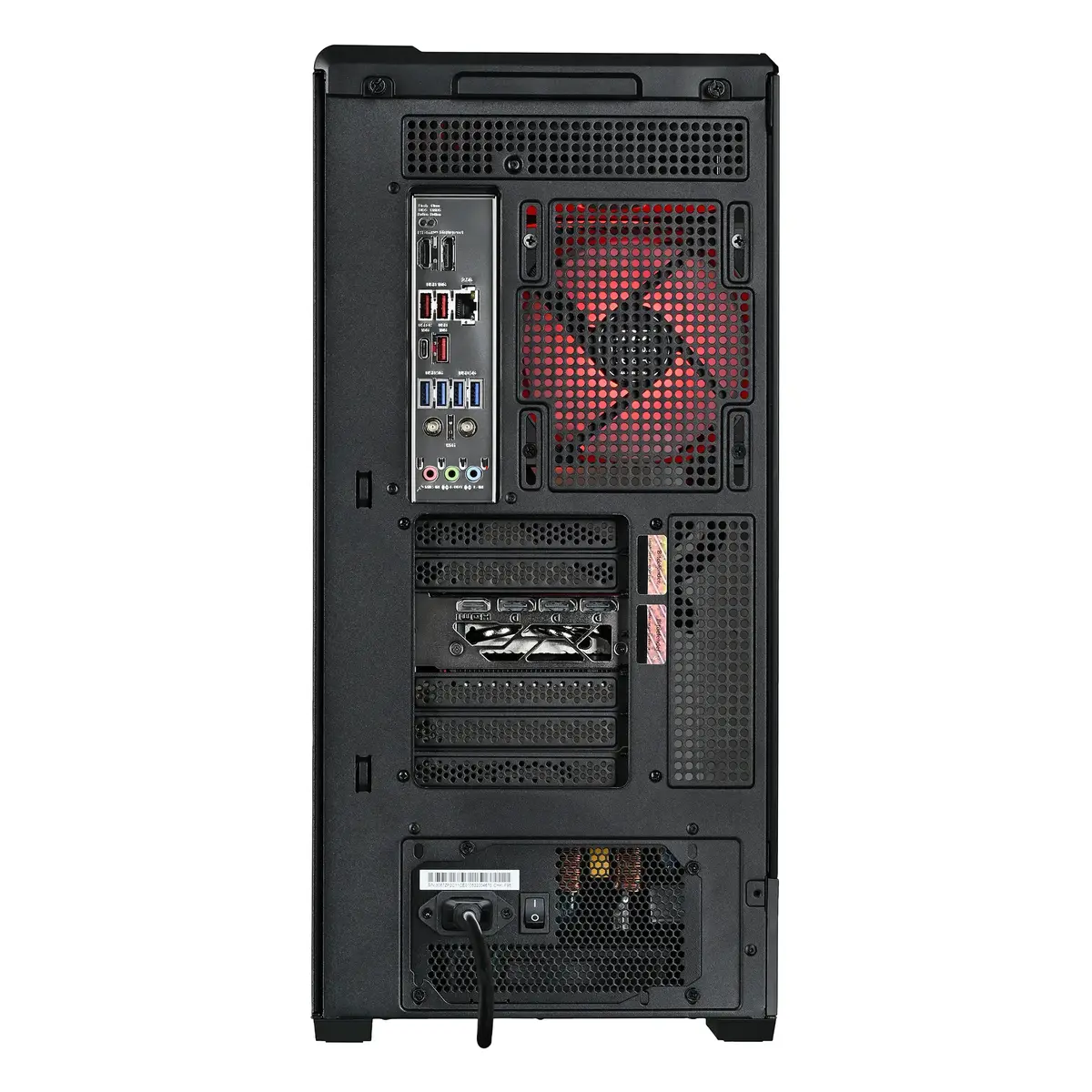

Ports & interfaces

Number of rear audio ports:

3

Number of front audio ports:

1

Number of front USB ports:

3

Number of rear USB ports:

9

Number of SATA III connectors: Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.

4

S/PDIF out port: S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.

No

Serial ports quantity: The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.

0

PS/2 ports quantity: The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.

0

eSATA ports quantity: The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives.

0

Thunderbolt 3 ports quantity:

0

Firewire (IEEE 1394) ports: Number of IEEE 1394/FireWire ports (connecting interfaces) in the device. The IEEE 1394 interface is a serial bus interface standard for high-speed communications and isochronous real-time data transfer. It was developed in the late 1980s and early 1990s by Apple, who called it FireWire. The 1394 interface is comparable to USB though USB has more market share. Apple first included FireWire in some of its 1999 models, and most Apple computers since the year 2000 have included FireWire ports, though, as of 2013, only the 800 version (IEEE-1394b).

0

Combo headphone/mic port:

Yes

Headphone outputs: Number of sockets /ports where headphones are connected.

1

Microphone in: The socket where a microphone is connected to the device.

Yes

VGA (D-Sub) ports quantity: Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.

0

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1

Thunderbolt 4 ports quantity:

1

Intel® Thunderbolt 4:

Yes

USB 3.2 Gen 2x2 Type-C ports quantity:

0

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

4

Mini DisplayPorts quantity:

0

DisplayPorts quantity: Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

2

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

4

Network

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.4

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

2x2

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

WLAN controller manufacturer:

Intel

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000, 2500, 5000

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 7 (802.11be)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Audio

Built-in microphone: Microphone that is found inside the product.

No

Design

Number of 2.5" bays:

3

80 PLUS certification:

80 PLUS Bronze

Certified refurbished:

No

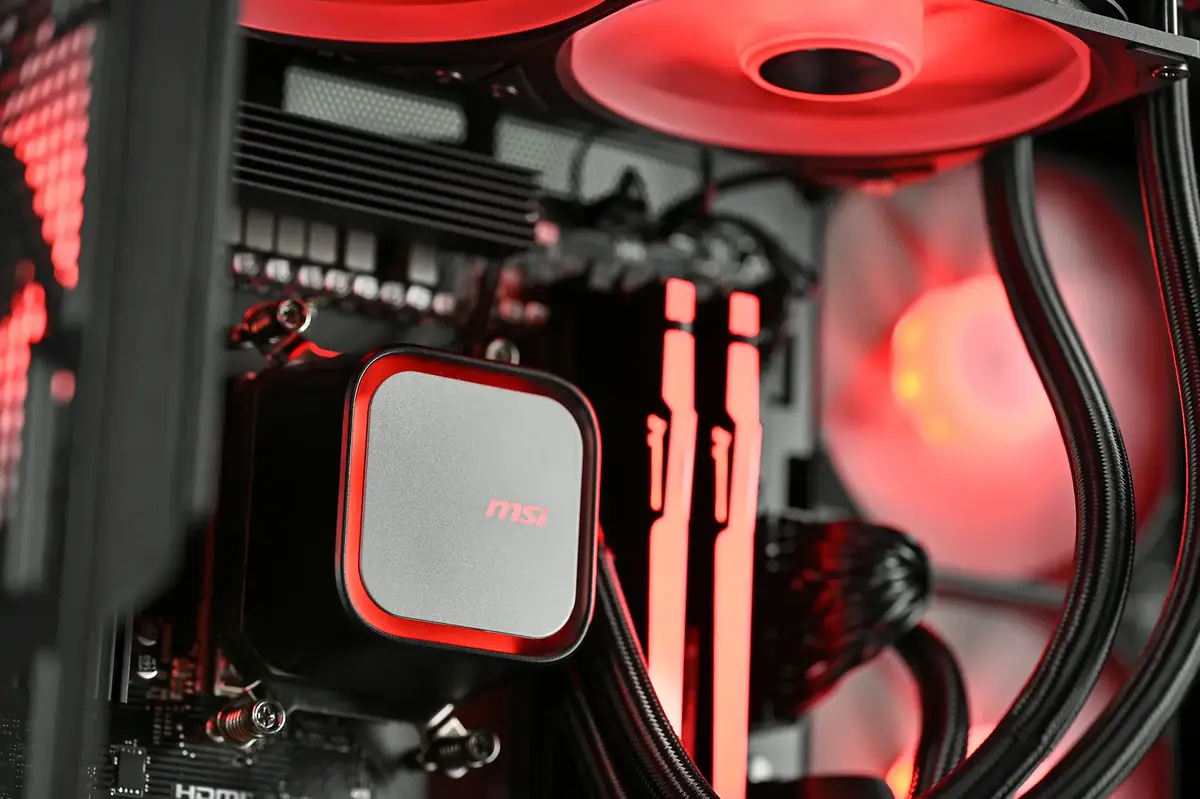

Water cooling system: System using water to remove heat from a machine or system.

Yes

Housing material: What the casing of the product is made of.

Plastic, Metal, Tempered glass

Product colour: The colour e.g. red, blue, green, black, white.

Black

Expansion slots

PCI slots:

0

PCI Express x16 (Gen 3.x) slots: Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.

0

PCI Express x16 (Gen 5.x) slots:

1

Graphics

Number of discrete graphics cards:

1

Graphics card DisplayPorts quantity:

3

Graphics card HDMI ports quantity:

1

Graphics card VGA (D-Sub) ports quantity:

0

Graphics card DVI-D ports quantity:

0

Graphics card Mini DisplayPort ports quantity:

0

CUDA: CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs.

Yes

NVIDIA G-SYNC:

Yes

NVIDIA GameWorks VR:

Yes

AMD FreeSync: The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing.

Yes

On-board graphics card: Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.

No

Discrete graphics card memory:

12 GB

Discrete GPU manufacturer:

NVIDIA

Discrete graphics card model: A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

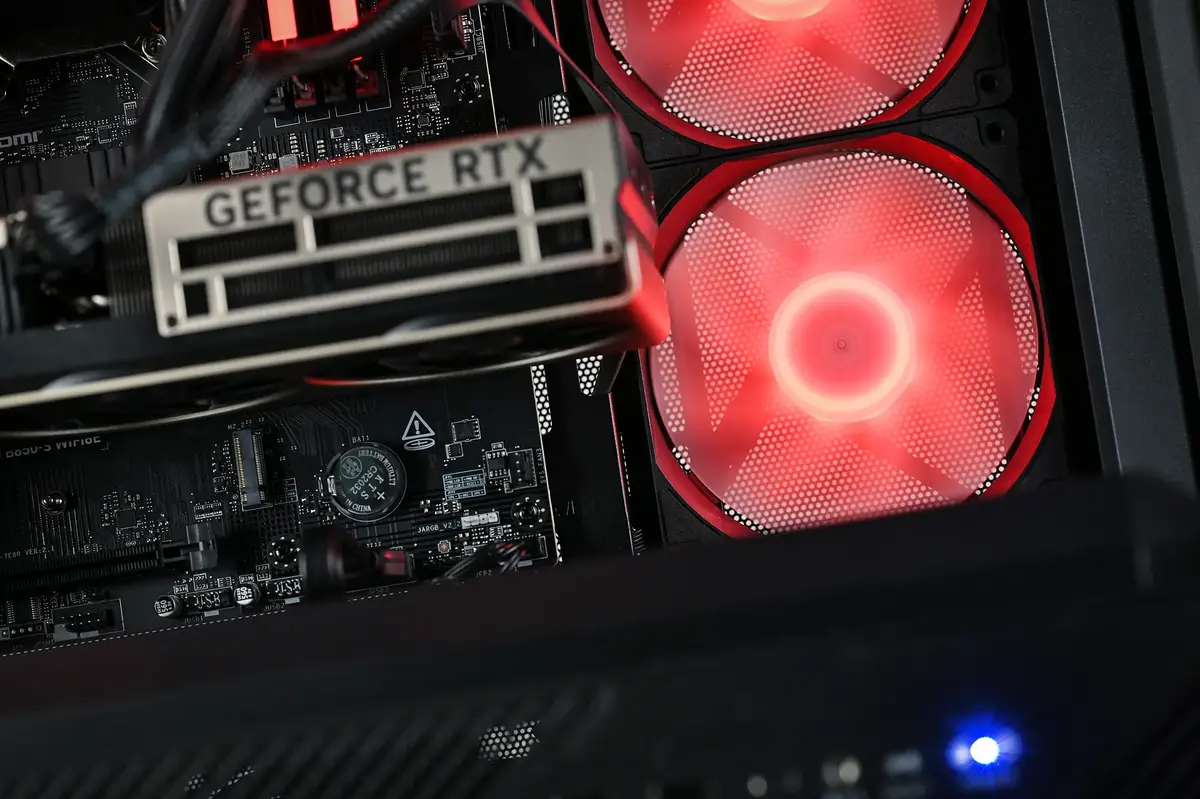

NVIDIA GeForce RTX 5070

On-board graphics card model: "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Not available

Discrete graphics card:

Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

12 kg

Height: The measurement of the product from head to foot or from base to top.

490 mm

Depth: The distance from the front to the back of something.

460 mm

Width: The measurement or extent of something from side to side.

232 mm

Neural processor unit (NPU)

NPU performance up to:

13 TOPs

Total processor performance up to:

22 TOPs

AI software frameworks supported by NPU:

OpenVINO, Windows ML, DirectML, ONNX RT

AI datatype support on NPU:

Int8

Windows Studio effects support:

Yes

Sparsity support:

Yes

Neural processor unit (NPU):

Intel AI Boost

Processor

Processor base power:

125 W

Maximum turbo power:

159 W

Processor socket: Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.

LGA 1851 (Socket V1)

Processor cache type:

Smart Cache

Processor cache:

24 MB

Processor threads:

14

Processor model: The model number for the processor in a computer.

245KF

Processor generation:

Intel Core Ultra (Series 2)

Efficient-core base frequency:

3.6 GHz

Performance-core base frequency:

4.2 GHz

Efficient-core Max Turbo Frequency:

4.6 GHz

Performance-core Max Turbo Frequency:

5.2 GHz

Efficient cores:

8

Performance cores:

6

Processor frequency: The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

3.6 GHz

Processor boost frequency: The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.2 GHz

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

14

Processor family: A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel Core Ultra 5

Processor manufacturer: The manufacturer that produced the processor.

Intel

Storage

Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

No

SSD form factor: The size of the solid-state drive, given in inches

M.2

Intel® Optane™ Memory module installed:

No

M.2 SSD size:

2280 (22 x 80 mm)

SSD interface: The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express

SSD capacity:

1000 GB

Number of SSDs installed:

1

Total SSDs capacity:

1000 GB

Number of storage drives supported: How many storage drives can be fit into the product at once.

7

Number of storage drives installed: Amount of storage drives built into the device.

1

Storage media: Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD

NVMe: NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.

Yes

Total storage capacity: The total amount of data that can be stored on the device.

1000 GB

Memory

ECC: ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.

No

Memory channels:

Dual-channel

Memory clock speed: The frequency at which the memory (e.g. RAM) runs.

6000 MHz

Memory slots: Number and type of memory expansion slots, including connector and memory module descriptions.

4x DIMM

Maximum internal memory: The maximum internal memory which is available in the product.

256 GB

Memory layout (slots x size): The slots and size of the memory for the CPU.

2 x 16

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM

Internal memory: A computer's memory which is directly accessible to the CPU.

32 GB

Power

Power supply input voltage:

100-240

Software

Bundled software: Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.

Bitdefender Internet Security

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

No
