header-product USB A female panel connector Alcasa IC04-U304, black, USB-A port mounting
17.49 €

USB A female panel connector Alcasa IC04-U304, black, USB-A port mounting

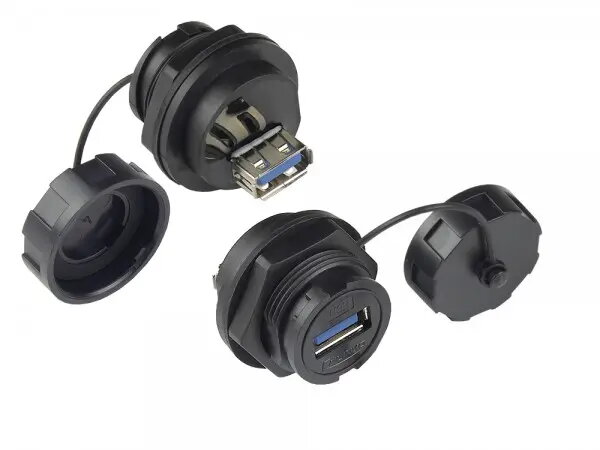

Alcasa IC04-U304 USB A female connector Photo 1
Alcasa IC04-U304 USB A female connector Photo 2
Alcasa IC04-U304 USB A female connector Photo 1
Alcasa IC04-U304 USB A female connector Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

USB A female panel connector Alcasa IC04-U304, black, USB-A port mounting

{{email}}
You keep track of price changes

USB A female panel connector Alcasa IC04-U304, black, USB-A port mounting

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Alcasa IC04-U304 is a black USB A female connector designed for panel or device mounting. The connector provides a standard USB-A receptacle for data and power cables, matching common USB-A plugs. Suitable for repairs, custom enclosures, extension panels and replacing damaged ports where a fixed USB-A female interface is required.
Available for order: 18 pcs.
Warranty: 2 Years
SKU: 12005285
Manufacturer: Alcasa
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
11.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
14.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Alcasa IC04-U304 is a black USB A female panel connector intended for mounting in enclosures, panels or devices where a fixed USB-A port is required. The connector provides a standard USB-A receptacle for both data and power connections and is compatible with common USB-A plugs, making it suitable for repairs, replacements and custom panel installations.

Advantages

This USB A female panel connector offers a compact, panel-mountable solution that keeps a standard USB-A interface accessible from the outside of a device or enclosure. Constructed with PBT and PVC materials, the connector is durable for repeated plugging cycles and provides a consistent connection for data transfer and power delivery. Its black finish allows discreet integration into a variety of housings and panels.

Suitable for

  • Repairing or replacing damaged USB-A ports in consumer electronics and appliances
  • Adding an external USB-A interface to custom enclosures and DIY projects
  • Mounting on extension panels, distribution boxes, or control panels
  • Prototyping and small-scale production where a fixed USB-A receptacle is needed

Key specifications

  • Connector type: USB A female, straight panel-mount receptacle
  • Color: black
  • Materials: polybutylene terephthalate (PBT) housing, polyvinyl chloride (PVC) insulation/cable interfaces
  • Mounting style: panel or device mounting suitable for cutout installation
  • Function: supports standard USB-A plug for data and power connections

How to use

Prepare a correctly sized cutout in the panel or enclosure according to the connector's dimensions, then insert the connector and secure it using the recommended mounting method for the housing (clips, screws, or snap-fit, as applicable). Route and solder or crimp the internal cable or PCB connections to the connector terminals following the device wiring diagram and ensuring correct pin assignments for power and data lines. After installation, test data transfer and power delivery with a known-good cable and device to confirm correct orientation and operation.

Usage recommendations

Ensure correct panel cutout dimensions and firm mechanical fixation to prevent stress on the connector pins. Use proper ESD precautions when connecting to sensitive electronics, and verify wiring polarity and pin mapping before applying power. For repeated insertion cycles, use qualified USB-A cables and avoid excessive force or angled insertion to prolong connector life.

All features
Lifetime (cycles):
500
Connector form factor:
Straight
Cable protector:
Yes

Other features

Material: The material from which a thing is or can be made e.g. wood, plastic.
Polybutylene terephthalate (PBT), Polyvinyl chloride (PVC)
Connector(s):
USB A

Technical details

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP65, IP67

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 80

Features

Connector gender: To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male.
Female
Product colour: The colour e.g. red, blue, green, black, white.
Black
