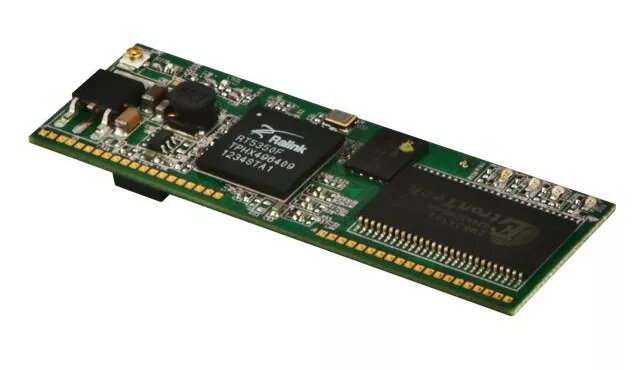

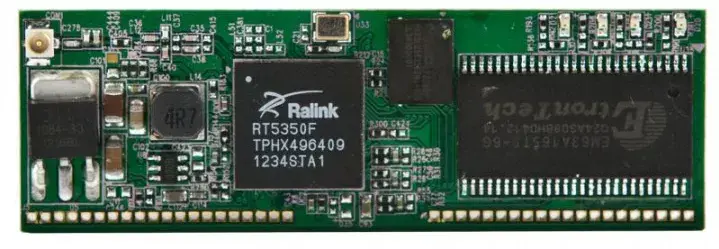

Control Processor ALLNET ALL5003CPU

The Control Processor ALLNET ALL5003CPU is a compact CPU module designed for networked automation tasks. It includes 0.032 GB internal memory and Flash storage and supports Fast Ethernet at 10/100 Mbit/s. With a width of 65 mm and a depth of 21 mm, the module fits into installations where space is limited and provides network connectivity via Ethernet or WLAN for a variety of control and monitoring applications.

Advantages

The ALLNET ALL5003CPU offers a small form factor with essential processing and storage capabilities, enabling integration into machine control, building automation and autonomous measuring devices. Fast Ethernet support ensures reliable wired network performance while the module’s size allows installation in compact control cabinets or on DIN rails where space is constrained.

Suitable for

• Machine control systems
• Building automation
• Autonomous measuring and monitoring devices
• Safety engineering applications
• Robotics and conveyor control
• Lighting control systems

Key specifications

• Manufacturer: ALLNET
• Model: ALL5003CPU
• Internal memory: 0.032 GB
• Storage: Flash
• Network: Fast Ethernet 10/100 Mbit/s; WLAN support (as applicable)
• Dimensions: 65 mm (width) × 21 mm (depth)
• MPN: ALL5003CPU
• EAN: 4038816050038

How to use

Install the ALLNET ALL5003CPU in the control cabinet or on a DIN rail according to your system layout, connect power and the Ethernet network for wired communication, or configure WLAN where available. Program the processor to handle the desired control, monitoring or safety tasks using the target automation software and load application code or configuration into the Flash storage. Verify network settings and perform functional tests before commissioning.

Usage recommendations

Place the module in a ventilated area and ensure proper grounding. Use shielded Ethernet cables for industrial environments and follow the manufacturer’s guidelines for firmware updates and configuration backups.
