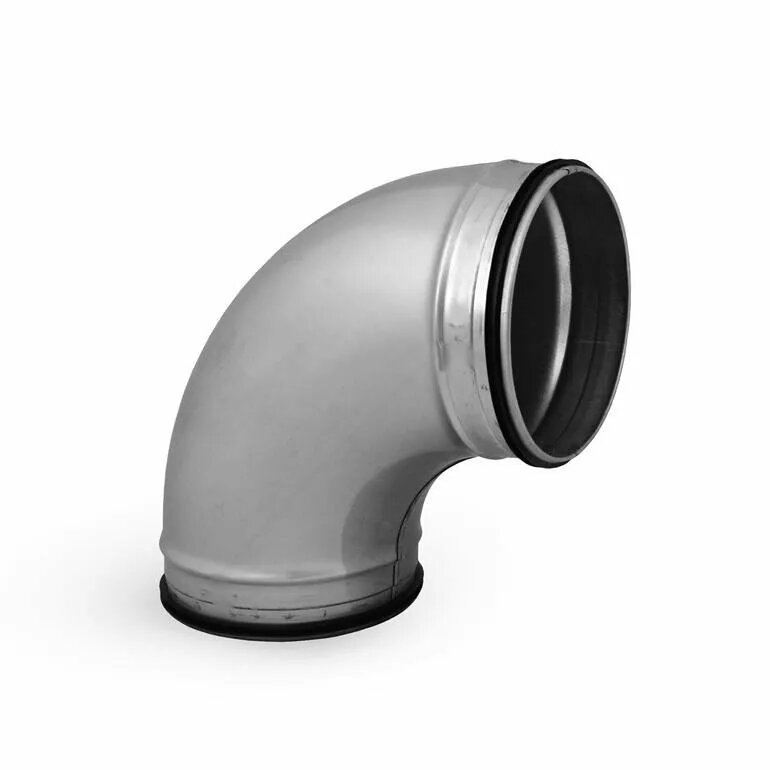

ALNOR BPL-90-100 Ventilation Elbow with Interim Piece 90 Degrees 100 mm

The ALNOR BPL-90-100 is a professional-grade 90-degree ventilation elbow engineered to facilitate precise airflow direction within HVAC systems. This component features an integrated interim piece, which simplifies the installation process by providing a secure, airtight connection for 100 mm diameter ductwork. Built from high-quality, durable materials, this elbow is designed to maintain structural integrity and consistent performance in both residential and commercial air distribution networks.

Advantages

The primary advantage of this ventilation elbow is its integrated design, which combines the elbow and an interim piece into a single unit, reducing the number of connections required and minimizing potential air leakage points. Its robust construction ensures long-term reliability even in demanding ventilation environments. The precise 90-degree angle allows for efficient duct routing in tight spaces, ensuring that airflow remains smooth and unobstructed throughout the system.

Suitable for

• Residential HVAC ventilation systems
• Commercial air distribution networks
• Tight-space duct routing
• Connecting 100 mm diameter ventilation ducts

When it may not be suitable

This component is specifically designed for 100 mm diameter ductwork and will not be compatible with systems using different duct sizes. It is intended for standard ventilation applications and may not be suitable for industrial environments involving high-temperature, corrosive, or chemically aggressive exhaust gases.

Key specifications

• Angle: 90 degrees
• Duct diameter: 100 mm
• Material: Galvanized steel
• Connection type: Integrated interim piece

How to use

To install the ALNOR BPL-90-100, ensure that the ventilation ducts are cut cleanly and are free of debris. Slide the duct ends onto the integrated interim piece of the elbow. Secure the connection using appropriate duct tape, clamps, or screws to ensure an airtight seal. Verify that the elbow is properly supported to prevent sagging or stress on the ductwork connections.

What to consider before purchase

• Verify the diameter of your existing ductwork matches the 100 mm requirement.
• Ensure the 90-degree bend is appropriate for your specific duct routing path.
• Check that the installation space allows for the physical dimensions of the elbow.

Usage recommendations

Regularly inspect the duct connections for signs of vibration or air leakage to maintain optimal system efficiency and prevent energy loss.
