Freestanding rack APC NetShelter SX 48U Grey 1700 kg capacity
Offer for a legal entity, non-cash payment.
Short description
Product information
Description

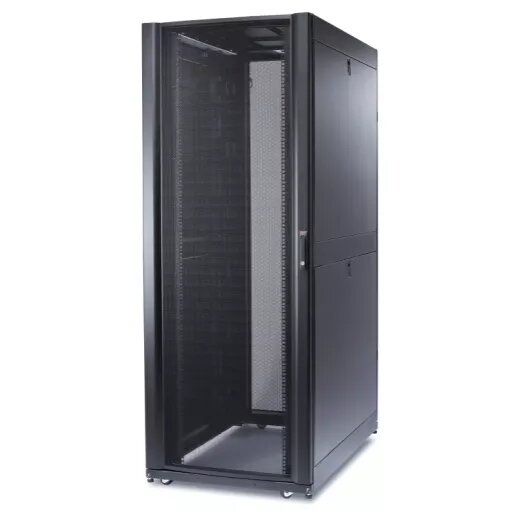

The APC NetShelter SX 48U freestanding rack (AR3387) is a secure, full-featured enclosure for IT equipment, designed for data centers and server rooms. It supports EIA-310 19" mounting, has a 1700 kg static load capacity, castors and adjustable leveling feet for mobility and stability, perforated doors for ventilation, integrated cable management openings with pre-installed brushes, and factory-installed rear accessory channels. The enclosure is IP20 rated, measures 2258 mm high, 1200 mm deep and 800 mm wide, and weighs 238 kg.
Advantages
The NetShelter SX includes pre-installed joining hardware for aligning multiple enclosures, pre-installed full-height rear accessory channels for zero-U accessories, and adjustable mounting rails with captive hardware for rapid alignment and easy U-positioning. Split rear doors and a perforated curved front door provide service access and optimized airflow. The rack ships with both leveling feet and low-profile castors, and the roof and cable access openings include pre-installed brush strips for organized cabling. Vendor-neutral EIA-310 compatibility and Schneider Electric accessory compatibility simplify integration into existing infrastructure.
Suitable for
- Data centers and server rooms
- Network closets and telecommunications equipment
- Environments requiring pre-racked shipping or equipment staging
- High-density cabling applications and structured cabling installations
Key specifications
- Model: APC NetShelter SX AR3387
- Rack capacity: 48U
- Static load capacity (with leveling feet): 1700 kg
- Dynamic load capacity (on castors): 1023 kg (typical for 42U–52U designs)
- IP rating: IP20
- Dimensions (H×D×W): 2258 mm × 1200 mm × 800 mm
- Weight: 238 kg
- Front/rear mounting: EIA-310 19" compatible
How to use
Position the enclosure where required and use the castors to move it; engage leveling feet to stabilize the rack. Install equipment on the adjustable mounting rails, positioning rails in 6.4 mm (1/4 in) increments as needed and using the numbered U markings for alignment. Route cabling through the roof and side openings with the pre-installed brush strips to maintain airflow and containment. Use the integrated rear accessory channels for vertical PDUs and cable organizers. Doors and side panels are removable via quick-release hinges to allow access during installation or maintenance.
Usage recommendations
Verify total equipment weight and distribution before final installation; adhere to the 1700 kg static capacity and follow manufacturer guidance for eyebolt lifting, seismic anchoring, and accessory compatibility listed in the product documentation on apc.com.
Features
- Maximum weight capacity:
- 1700 kg
- Type:
- Freestanding rack
- Rack capacity:
- 48U
