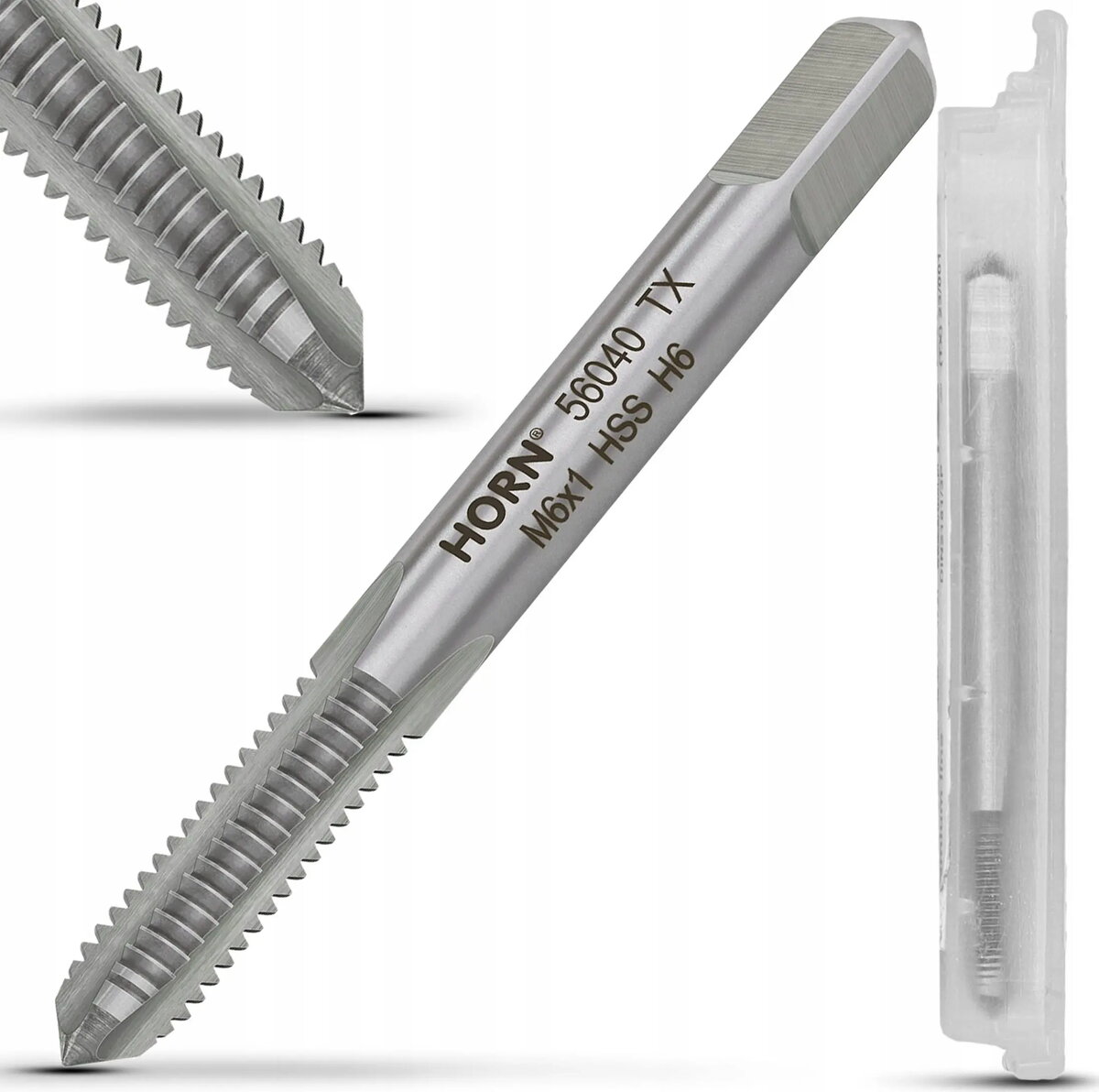

Tap (thread cutting) Art-Pol M6×1.00 mm single piece (MPN 56040)

Art-Pol M6×1.00 mm cutting tap is a single-piece tool designed to form internal metric threads with a 6 mm nominal diameter and a 1.00 mm pitch. The tap is intended for use in manual or machine tapping operations and is suitable for producing precise M6 threads in compatible metals and other machinable materials. The tool's geometry enables controlled chip evacuation and consistent thread profile when used with appropriate speeds, feeds, and cutting fluids.

Advantages

The single-piece construction provides rigidity and minimal runout for accurate thread form and thread concentricity. The metric 6 mm diameter and 1.00 mm pitch match standard M6 requirements, ensuring interchangeability with standard fasteners. The cutting profile is optimized for reliable chip breaking and reduced risk of clogging when tapping through or in blind holes, depending on material and tapping technique. The tap is suitable for use in both hand-held tap wrenches and machine tapping setups.

Suitable for

• Repair and maintenance tasks requiring M6 internal threads
• Assembly work where standard M6 fasteners are used
• General metalworking and fabrication in compatible steels, aluminum alloys, and non-ferrous materials
• Prototype and small-batch production with manual or machine tapping

Key specifications

• Thread nominal diameter: 6 mm
• Thread pitch: 1.00 mm
• Tool type: single-piece cutting tap for internal metric threads
• Intended use: manual or machine tapping
• Suitable hole types: through holes and blind holes (depending on drilling depth and tapping technique)

How to use

Select a correctly sized pilot hole according to standard M6 tap drill recommendations for the material being worked. Secure the workpiece and align the tap square to the hole to avoid cross-threading. For hand tapping, use steady pressure and turn the tap forward several turns, then reverse slightly to break and clear chips. For machine tapping, set appropriate spindle speed and feed to match the tap pitch and material; use correct tapping holders or rigid tapping cycles as needed. Apply suitable cutting fluid to improve chip evacuation and extend tool life. After completing the thread, back the tap out while cleaning chips from the flute.

Usage recommendations

Use recommended tap drill sizes and cutting fluids for the specific material. In harder materials or deep blind holes, consider using a tap with a reduced flute length or a bottoming tap for full thread depth. Replace the tap if wear or damage is observed to avoid poor thread quality or tool breakage.
