Asus ExpertCenter PN52-S7031MD Mini PC

Name: Asus ExpertCenter PN52-S7031MD Mini PC, 90MS02F1-M000Z0
Brand: Asus
SKU: 5058154
Price: 769.99 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

Asus ExpertCenter PN52-S7031MD Mini PC, AMD Ryzen 7 5800H, 16GB DDR4, 512GB SSD, AMD Radeon Graphics

Asus ExpertCenter PN52-S7031MD Mini PC Photo 1

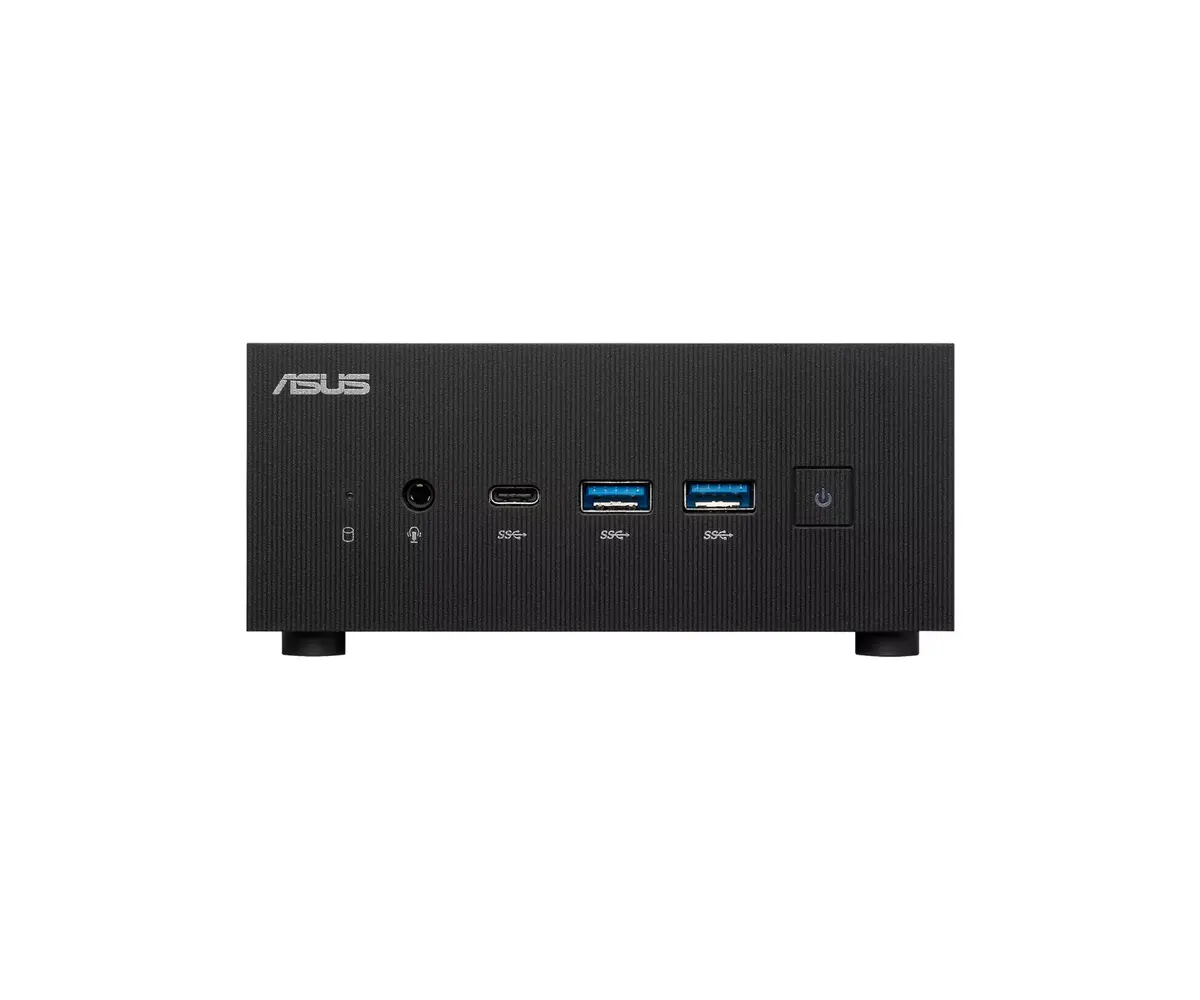

Asus ExpertCenter PN52-S7031MD Mini PC Photo 2

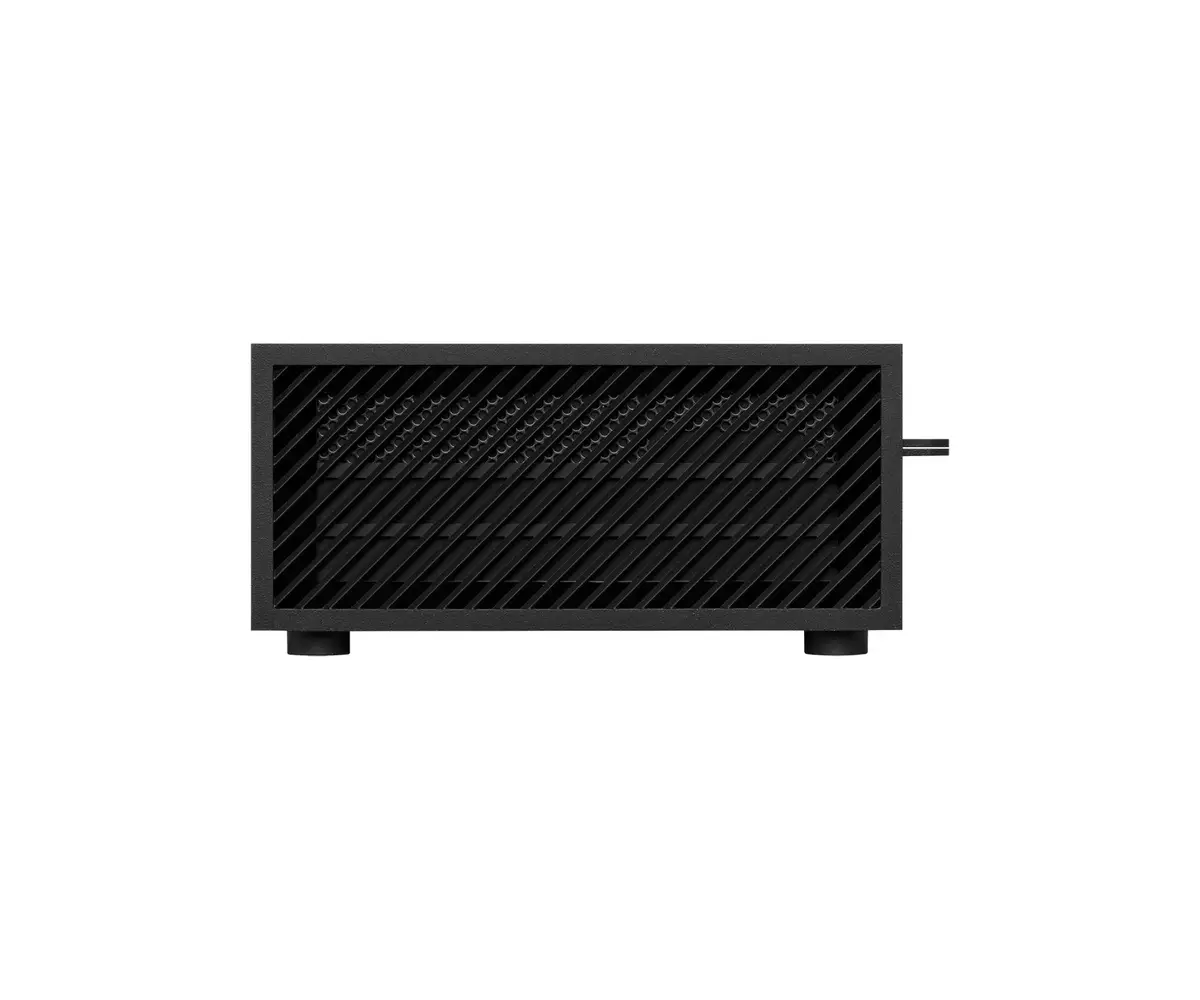

Asus ExpertCenter PN52-S7031MD Mini PC Photo 3

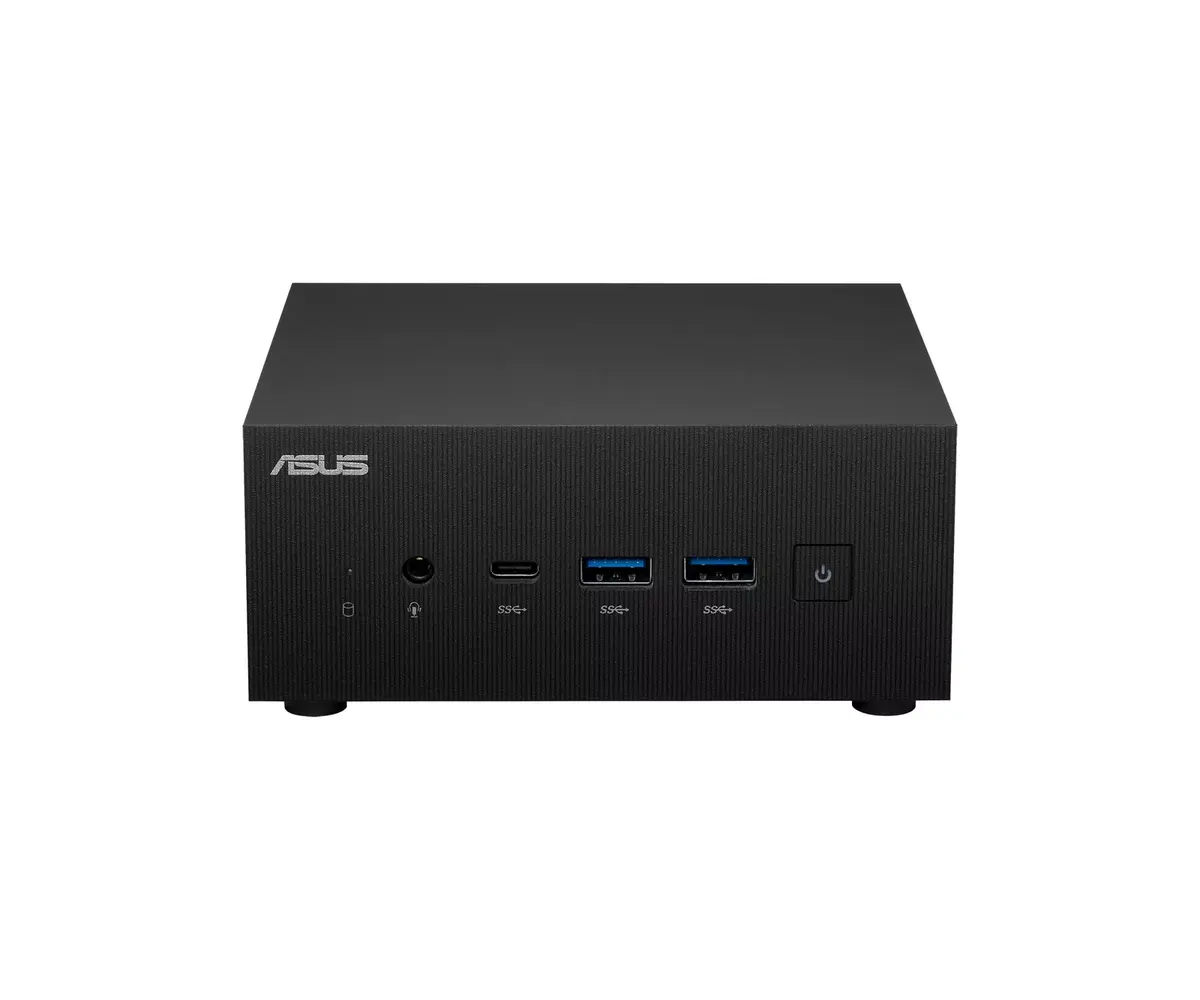

Asus ExpertCenter PN52-S7031MD Mini PC Photo 4

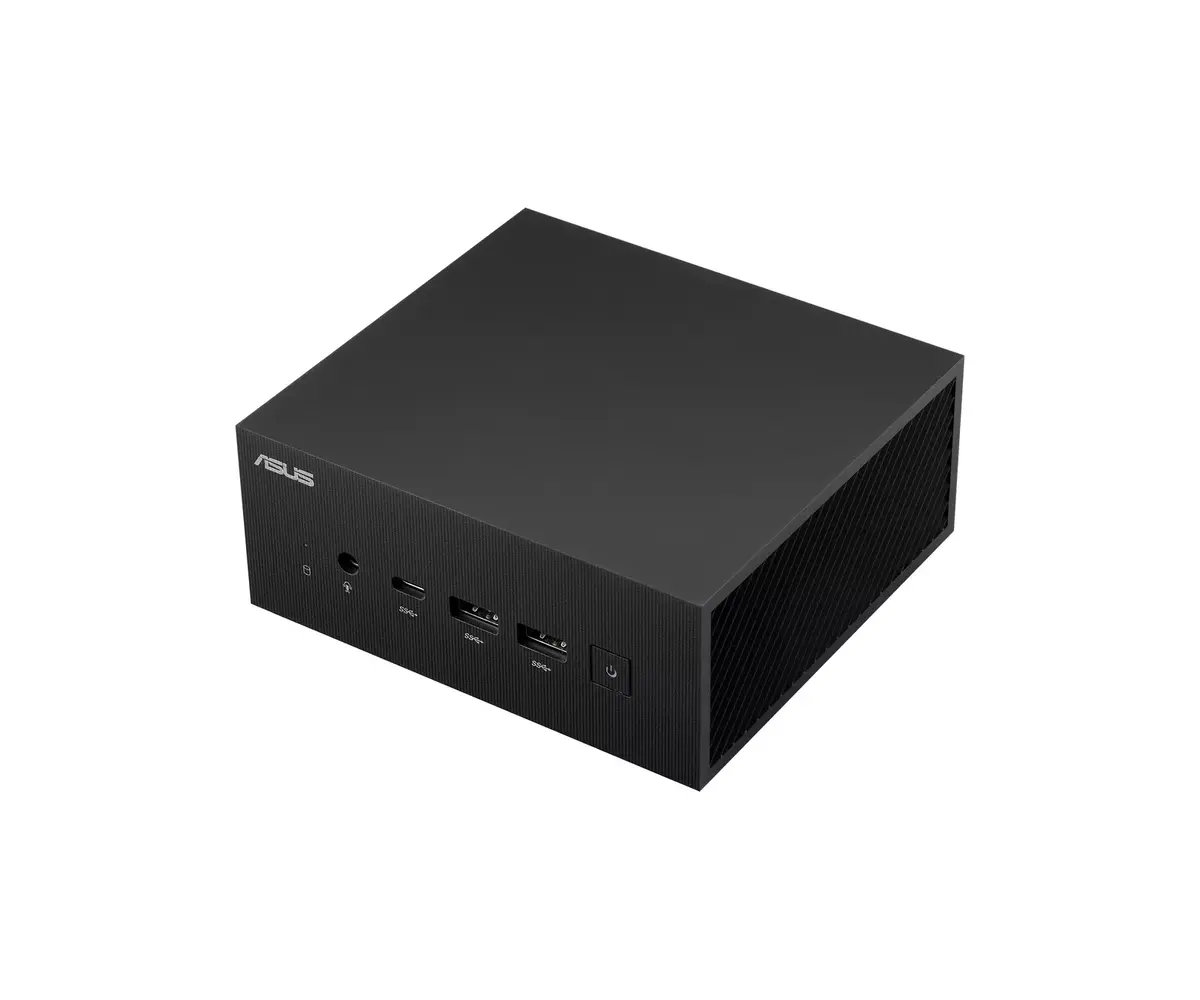

Asus ExpertCenter PN52-S7031MD Mini PC Photo 5

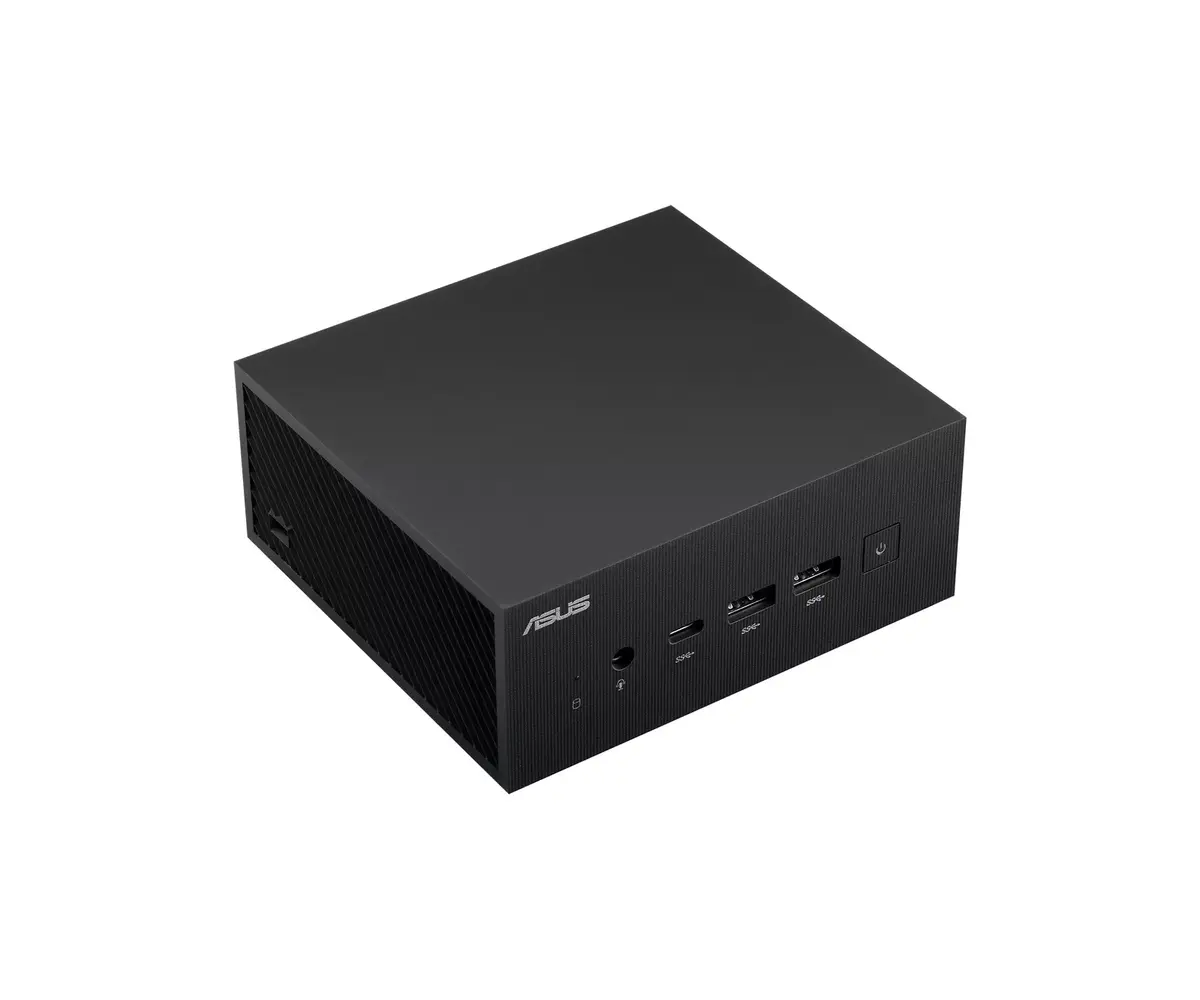

Asus ExpertCenter PN52-S7031MD Mini PC Photo 6

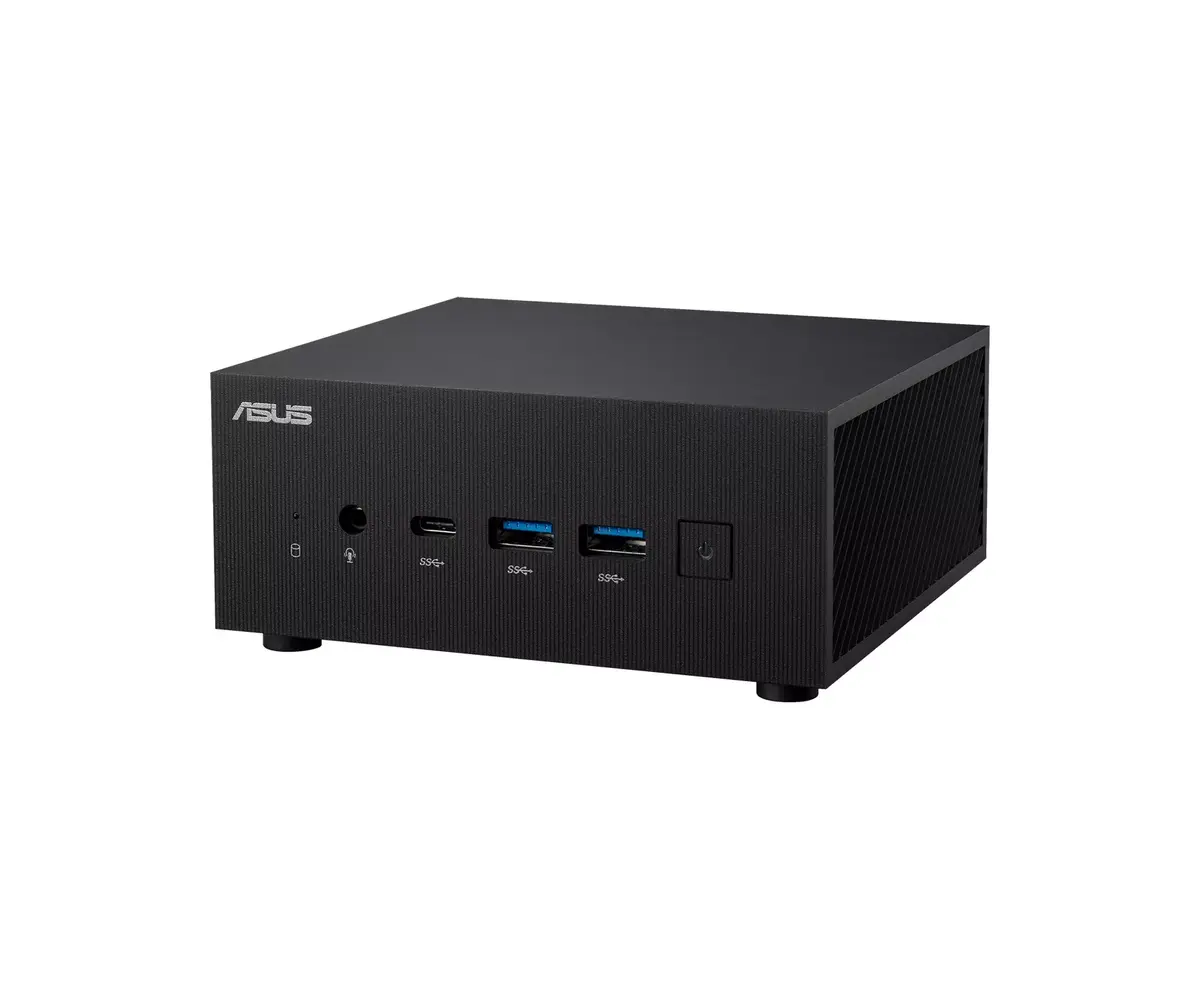

Asus ExpertCenter PN52-S7031MD Mini PC Photo 7

Short description

The Asus ExpertCenter PN52-S7031MD is a compact mini PC featuring an AMD Ryzen 7 5800H processor with a 3.2 GHz base frequency. It comes equipped with 16 GB of DDR4-SDRAM memory and a 512 GB SSD for fast storage. Integrated AMD Radeon Graphics provide reliable visual performance. This black, space-saving desktop solution is ideal for professional office tasks and home computing, offering versatile connectivity and efficient power management.

Warranty: 2 Years

SKU: 5058154

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

System & CPU Performance
ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.

Graphics Performance
ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 14.4% in 3DMark11 to 23.6% in the 3DMark Night Raid performance benchmarks.

4K Resolution & Quad Display Support
ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, two DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.

Ultra-realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.

USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

Easy Upgrades
An easy-access underside panel allows users replace and upgrade memory, storage and the wireless card. All that’s required is a screwdriver.

Configurable Port
ASUS ExpertCenter PN52 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners or receipt printers.

Superfast 2.5 Gbps Networking
2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Multi-storage Design
ASUS ExpertCenter PN52 is able to accommodate two M.2 SSDs and a 2.5-inch HDD, allowing users to specify custom storage solutions for a balance of speed and capacity that best suits their needs.

Military-grade Durability
ASUS ExpertCenter PN52 is subjected to rigorous MIL-STD-810H durability tests, enduring extreme temperatures and humidity, high altitude, plus drop and vibration tests to ensure it’s fit to perform in the harshest conditions.

Enhanced Software - MyASUS

AI Noise Cancelation
Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.

System Diagnosis
Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.

Smart Fan Control
Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.

Other Functions
WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Specifications

Processor family:: AMD Ryzen 7
Processor model:: 5800H
Processor frequency:: 3.2 GHz
Processor boost frequency:: 4.4 GHz
Internal memory:: 16 GB
Internal memory type:: DDR4-SDRAM
SSD capacity:: 512 GB
On-board graphics card model:: AMD Radeon Graphics
Discrete graphics card model:: Not available
Operating system installed:: No
Weight:: 1 kg
Product colour:: Black

All features

Processor

Processor family:: AMD Ryzen 7
Processor model:: 5800H
Processor frequency:: 3.2 GHz
Processor boost frequency:: 4.4 GHz
Processor cores:: 8
Processor cache:: 16 MB
Processor manufacturer:: AMD
Processor generation:: AMD Ryzen 5000 Series

Memory

Internal memory:: 16 GB
Internal memory type:: DDR4-SDRAM
Memory slots:: 2x SO-DIMM
Maximum internal memory:: 64 GB
Memory clock speed:: 3200 MHz

Storage

Total storage capacity:: 512 GB
SSD capacity:: 512 GB
SSD interface:: PCI Express 3.0, NVMe
Number of SSDs installed:: 1
Storage media:: SSD
SSD form factor:: M.2
NVMe:: Yes
Total SSDs capacity:: 512 GB

Graphics

On-board graphics card model:: AMD Radeon Graphics
Discrete graphics card model:: Not available
Discrete graphics card:: No
On-board graphics card:: Yes
On-board GPU manufacturer:: AMD

Ports & interfaces

Ethernet LAN (RJ-45) ports:: 1
USB 2.0 ports quantity:: 0
Headphone outputs:: 1
DC-in jack:: Yes
HDMI ports quantity:: 2
HDMI version:: 2.1
DisplayPorts quantity:: 1
Combo headphone/mic port:: Yes
DisplayPort version:: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:: 1
Thunderbolt 3 ports quantity:: 0

Software

Operating system installed:: No

Design

Product colour:: Black
Chassis type:: Mini PC
Cable lock slot:: Yes
Cable lock slot type:: Kensington

Weight & dimensions

Weight:: 1 kg
Height:: 58 mm
Width:: 120 mm
Depth:: 130 mm

Other features

Cabling technology:: 10/100/1000Base-T(X)
Power supply:: 120 W
Display included:: No

Certificates

Certification:: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

Audio

Audio system:: High Definition Audio

Performance

Optical drive type:: No
Placement supported:: Horizontal
Trusted Platform Module (TPM):: Yes
Product type:: Mini PC
Password protection:: Yes
Audio chip:: Realtek ALC3251-CG

Power

Power supply input voltage:: 19
