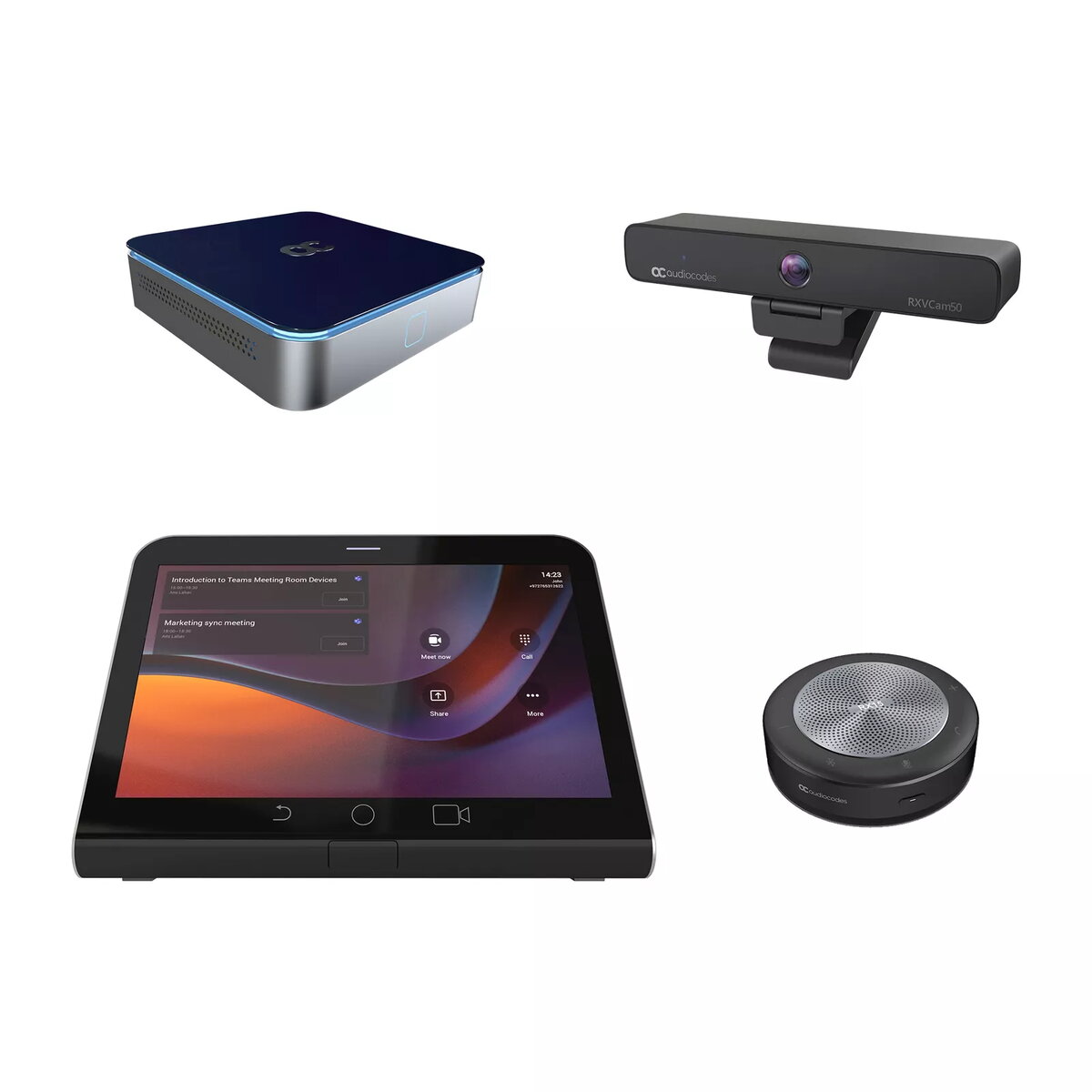

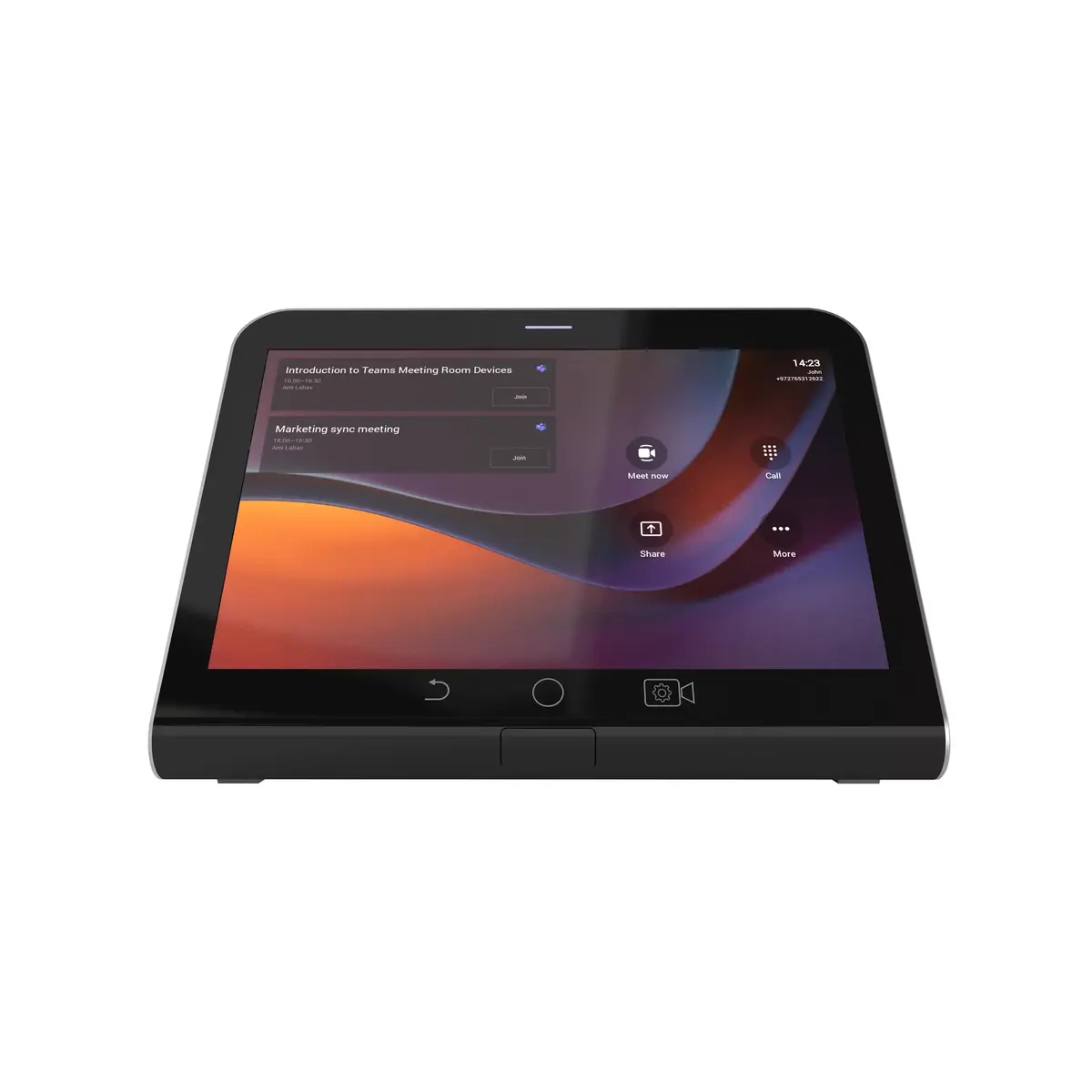

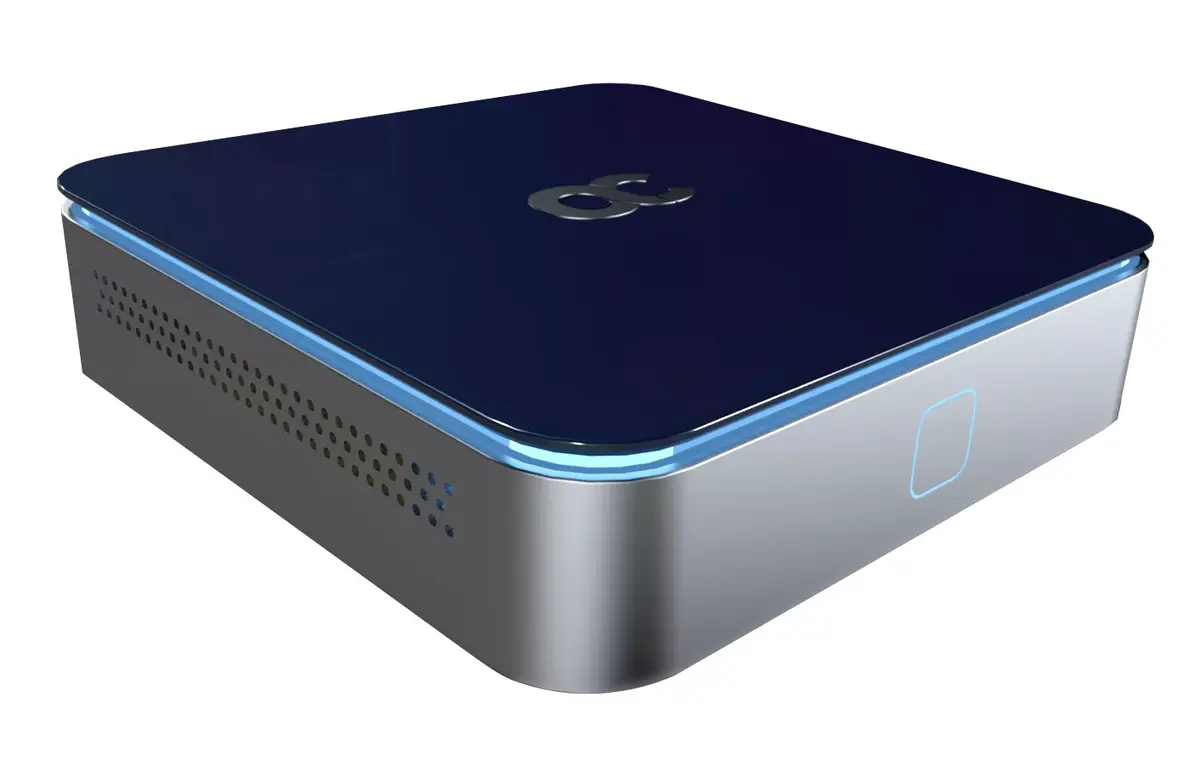

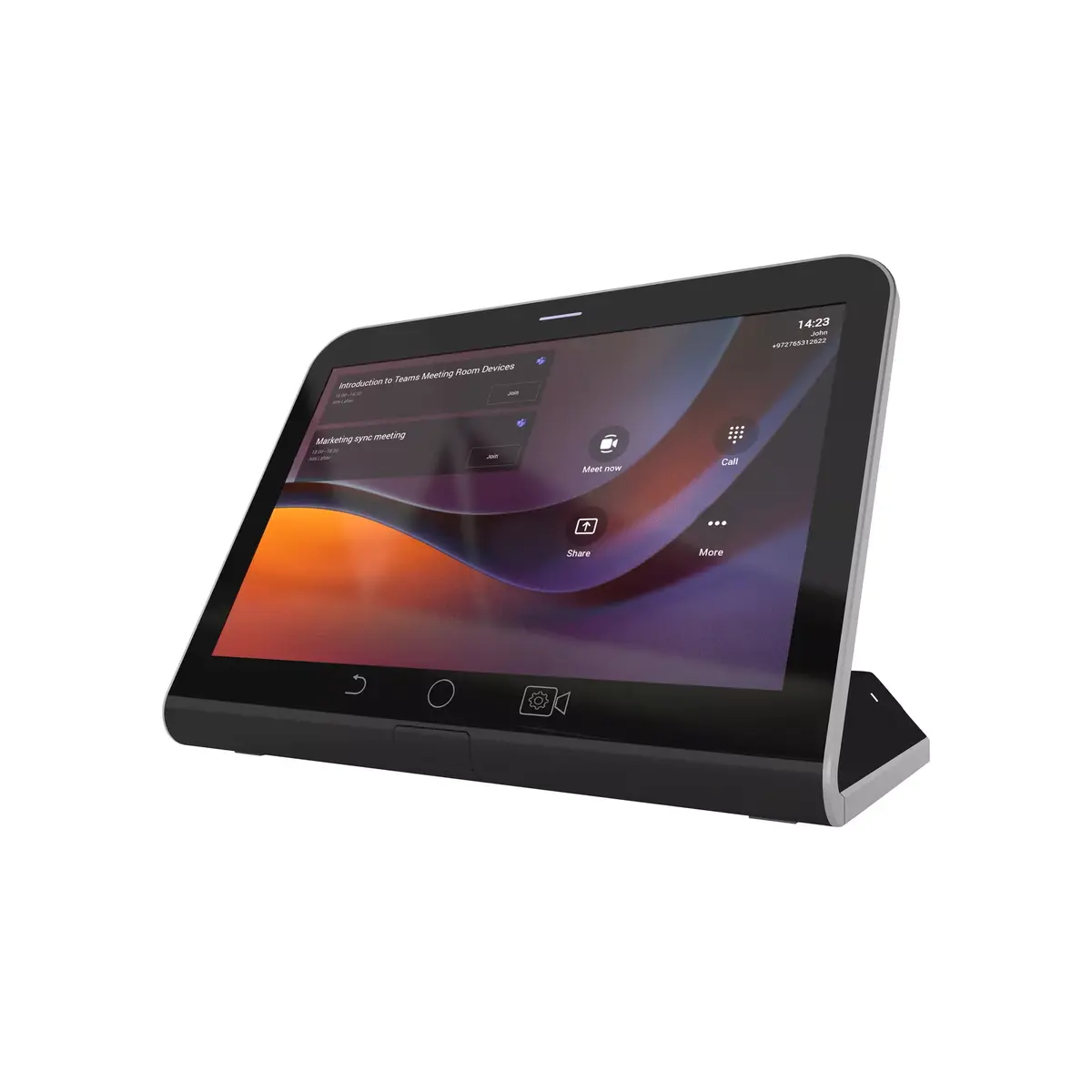

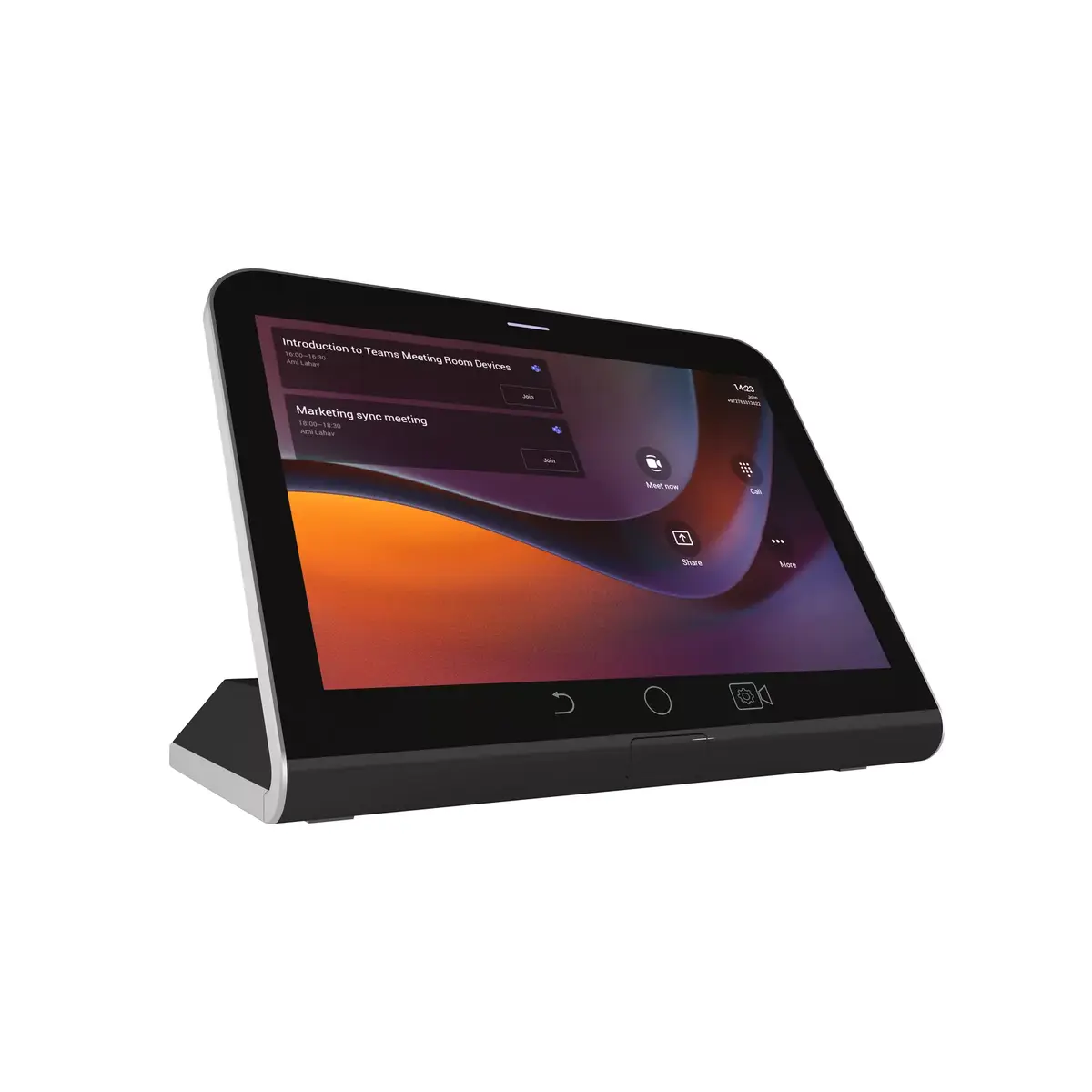

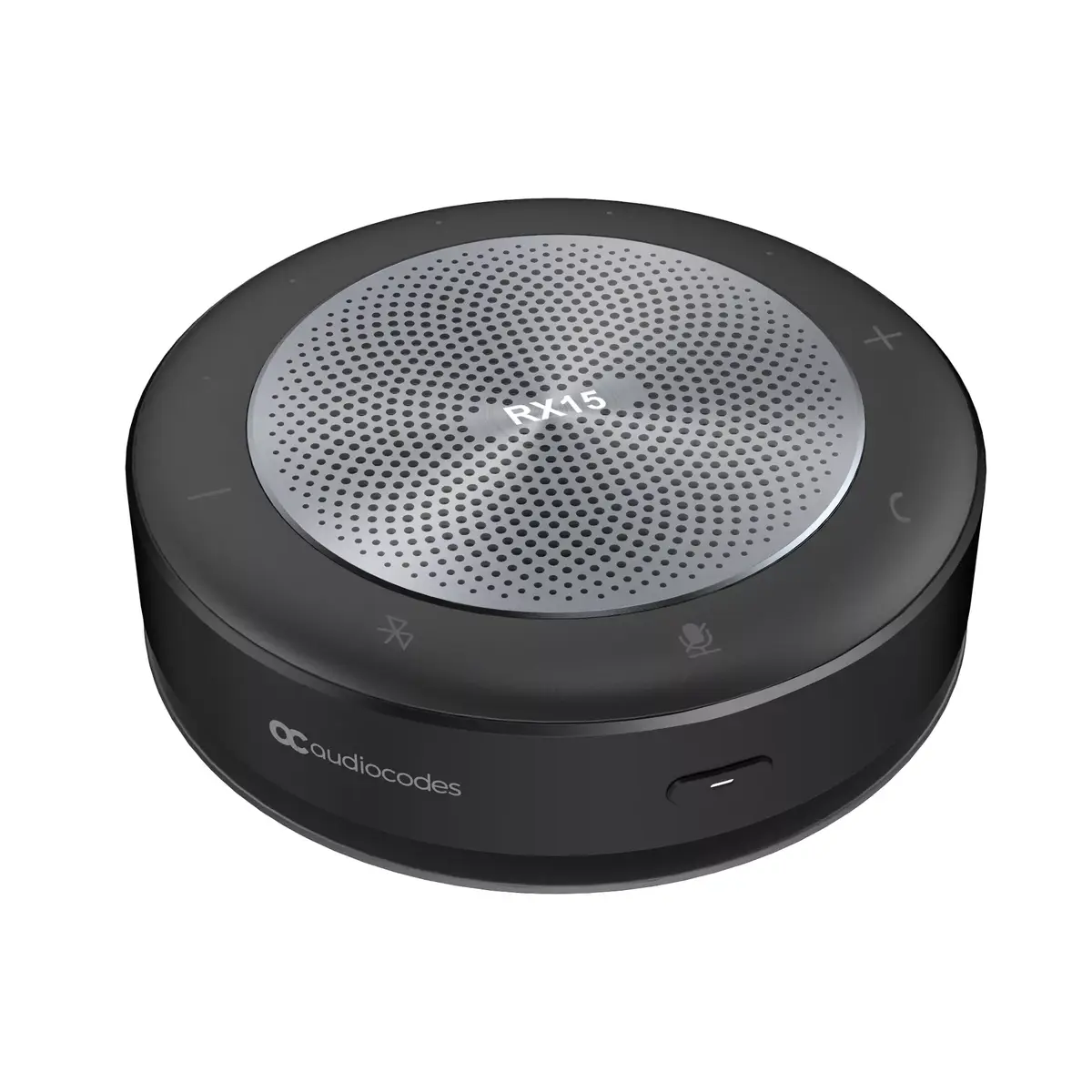

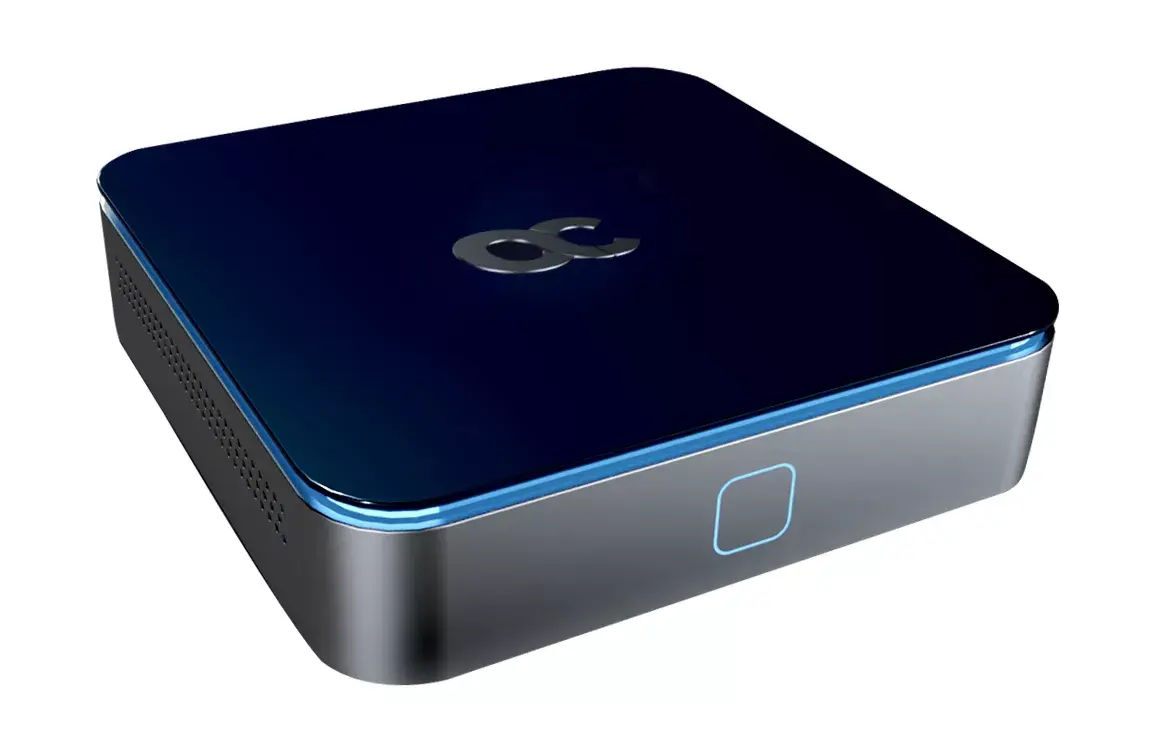

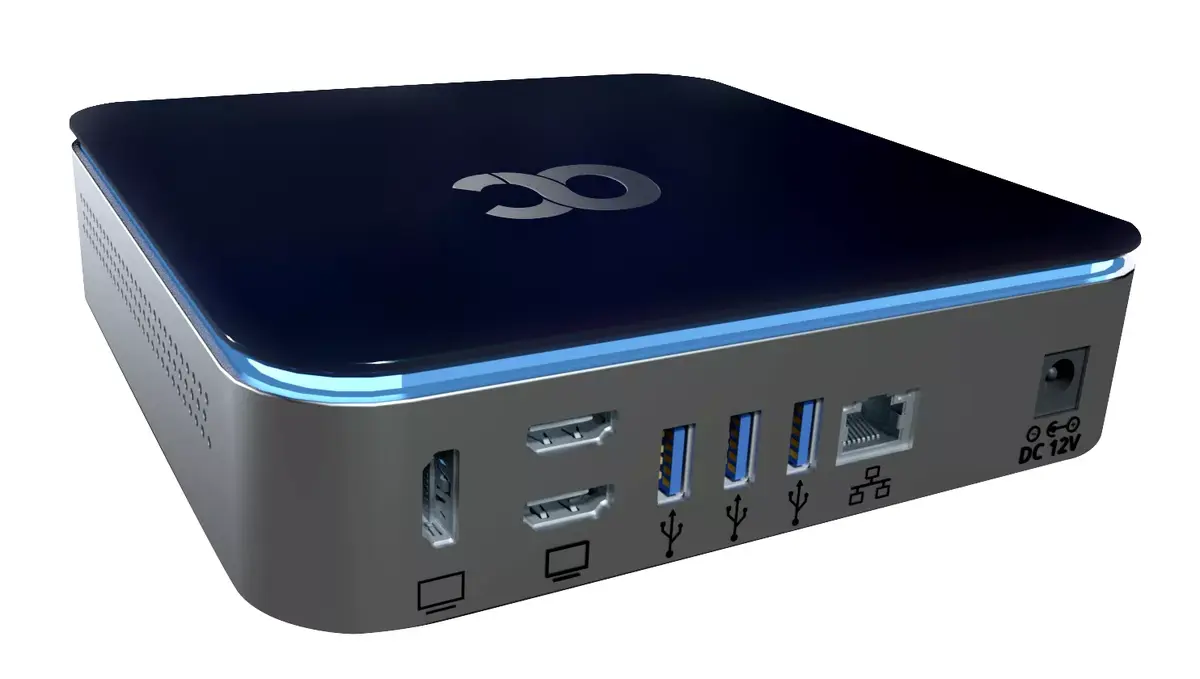

Group video conferencing system AudioCodes RXV200 10 persons 4K Ultra HD

Aspect ratio:

16:9

Processor model:

QCS8250

Digital zoom:

10 x

Megapixel (approx.):

8.28 MP

Wi-Fi standards:

Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a

Security algorithms:

256-bit AES, TLS, SRTP, 802.1x RADIUS

Zoom capability:

Yes

Supported network protocols:

TCP/IP (IPv4)

Ethernet LAN:

Yes

Focal length range:

2.26

Sensor type:

CCD

Minimum illumination:

0.1 lx

Display resolution:

1280 x 800

Networking standards:

IEEE 802.1p, IEEE 802.1Q

Processor family:

Qualcomm Snapdragon

Built-in speaker(s):

Yes

Resolution at capture speed:

3840x2160@30fps, 1920x1080@30fps, 1920x1080@25fps, 1280x720@30fps, 640x480@30fps, 640x480@25fps, 1280x720@25fps

Operating system installed:

Android

Wi-Fi:

Yes

Quality of Service (QoS) support:

Yes

Ethernet LAN data rates:

10, 1000, 100

Supported graphics resolutions:

3840 x 2160, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 1280 x 720 (HD 720)

Touchscreen:

Yes

VLAN support:

Yes

Microphone pick-up range:

2.5 m

Maximum video resolution:

3840 x 2160

PTZ control:

Yes

Output voltage Total Harmonic Distortion (THD):

4 %

Camera type:

Single camera

Number of cameras:

1

DC input voltage:

12

Horizontal field of view:

100 °

Vertical field of view:

64 °

Diagonal field of view:

102 °

Number of speakers:

1

HD type:

4K Ultra HD

Speaker dimensions (WxDxH):

120 x 120 x 35.2

Speaker weight:

395 g

Image sensor size:

1/2.5

Computer system type:

Mini PC

Camera dimensions (WxDxH):

220 x 93.8 x 56.5

Microphone colour:

Black

Interface module dimensions (W x D x H):

170 x 170 x 41.3

Interface module weight:

750 g

Interface module HDMI ports quantity:

3

3D NR (Noise Reduction):

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity:

1

Interface module HDMI input ports quantity:

1

Interface module HDMI output ports quantity:

2

Number of microphone arrays:

6

Features

Product colour:

Black

Frequency range:

150 - 16000

Automatic gain control:

Yes

Number of persons:

10 person(s)

Sound pressure level (max):

65 dB

Product type:

Group video conferencing system

Microphone

Microphone frequency:

150 - 8000

Microphone sensitivity:

38 dB

Display

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.

8 "

Built-in display:

Yes

Ports & interfaces

Bluetooth version:

5.1

Bluetooth:

Yes

Cable lock slot:

Yes

USB connector type:

USB Type-C, USB Type-A

Cable lock slot type:

Kensington

Power

Current:

3 A

Power source type:

DC

Operational conditions

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T):

-10 - 60

Operating temperature (T-T):

-10 - 50

Storage relative humidity (H-H):

20 - 90

Amplifier

Signal-to-Noise Ratio (SNR):

75 dB
