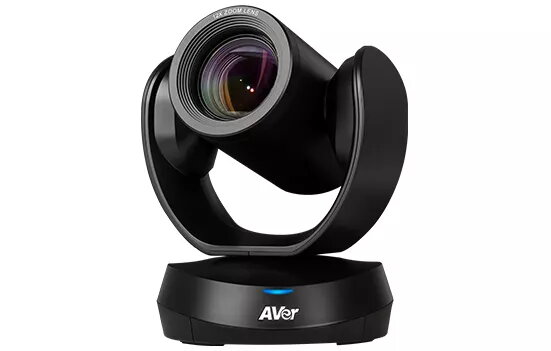

Camera AVer CAM520 Pro3 8 MP 1920x1080 60 fps

Aspect ratio:

4:3, 16:9

Digital zoom:

24 x

Megapixel (approx.):

8 MP

Minimum RAM:

8000 MB

Optical zoom:

12 x

Zoom capability:

Yes

Supported network protocols:

RTSP, RTMP

Aperture range (F-F):

1.8 - 2.8

White balance:

Auto, Manual

Focal length range:

3.9 - 46.8

Sensor type:

Sony

Tripod mounting supported:

Yes

Remote control included:

Yes

Networking standards:

IEEE 802.3at

Tilt angle range:

-30 - 90

DC-in jack:

Yes

Closest focusing distance:

1 m

Pan range:

-170 - 170

Remote control type:

IR

HDMI ports quantity:

1

Web-based management:

Yes

Supported graphics resolutions:

320 x 180, 320 x 240, 424 x 240, 480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 448, 800 x 600 (SVGA), 848 x 480, 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1600 x 900, 1920 x 1080 (HD 1080)

HDMI version:

1.4

Light exposure modes:

Auto

Mounting type:

Stand/Wall mounting

Combined zoom:

36 x

Face tracking:

Yes

Video formats supported:

H.264, M-JPEG, NV12, YUV, YUY2

Maximum video resolution:

1920 x 1080

Maximum frame rate:

60 fps

PTZ control:

Yes

Camera type:

Single camera

USB cable length:

5 m

Power cable length:

3 m

AC input frequency:

50/60

AC input voltage:

100 - 240

Field of view (FOV) angle:

80.5 °

Wide Dynamic Range (WDR):

Yes

Mounting brackets included:

Yes

DC input voltage:

12

Horizontal field of view:

72.8 °

Vertical field of view:

44.1 °

Streaming capability:

Yes

Power supply included:

Yes

Network streaming:

Yes

DIN connector:

Yes

DIN connector type:

9-pin

Minimum processor family:

Core i5

Screws included:

Yes

HD type:

Full HD

Minimum processor speed:

3.2 GHz

Remote control dimensions (W x H x D):

200 x 50 x 21

Remote control weight:

90 g

Remote control function:

Yes

Flip & mirror:

Yes

Remote control batteries included:

Yes

Number of camera presets:

10

PTZ protocols:

PELCO-P/D, UVC, VISCA

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity:

1

VISCA input ports:

1

Live video preview:

Yes

Number of microphone arrays:

2

Auto framing:

Yes

Features

Certification:

Zoom, ClickShare

Plug and Play:

Yes

LED indicators:

Status

Product colour:

Black

Noise reduction:

Yes

Windows operating systems supported:

Windows 10, Windows 11, Windows 7

Mac operating systems supported:

Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Ports & interfaces

Cable lock slot:

Yes

Ethernet LAN (RJ-45) ports:

1

Cable lock slot type:

Kensington

Technical details

Warranty period:

3 year(s)

Power

Input current:

5

Power source type:

DC

Weight & dimensions

Weight:

5.8 kg

Package weight:

12240 g

Height:

346 mm

Width:

253 mm

Depth:

253 mm

Package depth:

264 mm

Package height:

359 mm

Package width:

518 mm

Operational conditions

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T):

-20 - 60

Operating temperature (T-T):

0 - 40

Storage relative humidity (H-H):

20 - 80

Packaging content

AC adapter included:

Yes

Cables included:

DIN 8 to D-Sub 9, USB

Quick start guide:

Yes

Packaging content:

Speakerphone, QR code card, 1/4" tripod screw

Logistics data

Products per pallet:

60 pc(s)

Country of origin:

Taiwan

Products per master (outer) case:

2 pc(s)

Harmonized System (HS) code:

8517691000

System requirements

Minimum processor:

Intel Core i5-4460
