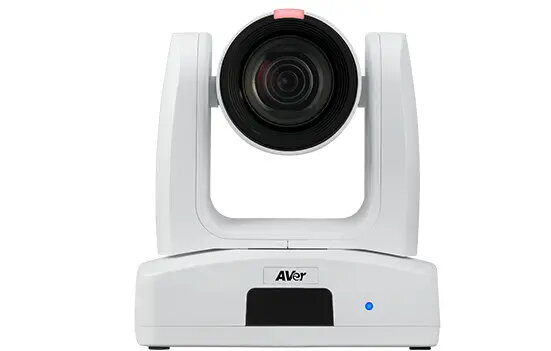

PTZ camera AVer PTZ310UV2 8 MP 4K (3840×2160) 60 fps Exmor 1/2.8" 2.8–33.6 mm 12× optical White

Digital zoom:

1 x

Megapixel (approx.):

8 MP

Optical zoom:

12 x

Zoom capability:

Yes

Supported network protocols:

IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

Aperture range (F-F):

1.6 - 2.8

White balance:

ATW, Auto, Manual, One push

Line-in:

Yes

Focal length range:

3.9 - 46.8

Sensor type:

Exmor

Minimum illumination:

0.46 lx

Optical sensor size:

25.4 / 2.8

Remote control included:

Yes

Tilt angle range:

-30 - 90

Microphone in:

Yes

Built-in speaker(s):

Yes

Closest focusing distance:

0.3 m

Pan range:

-170 - 170

Resolution at capture speed:

3840x2160@60fps, 1280x720@60fps, 1920x1080@60fps

HDMI ports quantity:

2

Web-based management:

Yes

Auto exposure:

Yes

Ethernet LAN data rates:

10, 100, 1000

Audio codecs:

AAC-LC

Light exposure modes:

Aperture priority AE, Auto, Manual, Shutter priority AE

Mounting type:

Stand

Combined zoom:

12 x

Video formats supported:

H.264, H.265, MJPG, YUY2

Maximum video resolution:

3840 x 2160

Maximum frame rate:

60 fps

PTZ control:

Yes

RS-422 ports:

1

Camera type:

Single camera

Back Light Compensation (BLC):

Yes

AC input frequency:

50 - 60

AC input voltage:

100 - 240

Number of TV lines:

1600

Wide Dynamic Range (WDR):

Yes

Mounting brackets included:

Yes

DC input voltage:

12

Fastest camera shutter speed:

1/32000

Slowest camera shutter speed:

1 s

Streaming capability:

Yes

Power supply included:

Yes

Network streaming:

Yes

Number of screws:

8

Screws included:

Yes

HD type:

4K Ultra HD

Power over Ethernet plus (PoE+) ports quantity:

1

Audio channels:

2

Flip & mirror:

Yes

Horizontal field of view (wide):

72.8 °

Horizontal field of view (tele):

6.7 °

Tilt speed (min):

0.1 °/sec

Tilt speed (max):

100 °/sec

Pan speed (min):

0.1 °/sec

Pan speed (max):

100 °/sec

Gain control type:

Auto/Manual

3D NR (Noise Reduction):

Yes

Pan preset speed:

200 °/sec

Tilt preset speed:

200 °/sec

PTZ protocols:

ONVIF, PELCO-P/D, VISCA

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity:

1

Number of cable ties:

4

USB Type-C connector:

Yes

Cable ties included:

Yes

3G-SDI output:

Yes

Vertical field of view (tele):

3.8 °

Vertical field of view (wide):

44.1 °

Field of view (wide):

80.6 °

Field of view (tele):

7.7 °

Number of cable fixing plates:

1

Multi-stream capability:

4; 4K 60fps: RTSP, HDMI & USB; 1080p 60fps: 3G-SDI

Bit rate range:

512 - 120000

Tally light:

Yes

Features

Certification:

Zoom

LED indicators:

Status

Product colour:

White

Ports & interfaces

Cable lock slot:

Yes

RS-232 ports:

1

Cable lock slot type:

Kensington

Technical details

Warranty period:

5 year(s)

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.

19 W

Input current:

2

Power source type:

DC, PoE

Weight & dimensions

Weight:

2 kg

Package weight:

4900 g

Height:

192 mm

Width:

180 mm

Depth:

145 mm

Package depth:

245 mm

Package height:

303 mm

Package width:

292 mm

Operational conditions

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T):

-20 - 60

Operating temperature (T-T):

0 - 40

Storage relative humidity (H-H):

20 - 95

Packaging content

AC adapter included:

Yes

Cables included:

AC, DIN 8 to D-Sub 9, RS-232

Quick start guide:

Yes

Logistics data

Products per pallet:

72 pc(s)

Country of origin:

Taiwan

Products per master (outer) case:

1 pc(s)

Harmonized System (HS) code:

8525890000

Amplifier

Signal-to-Noise Ratio (SNR):

50 dB
