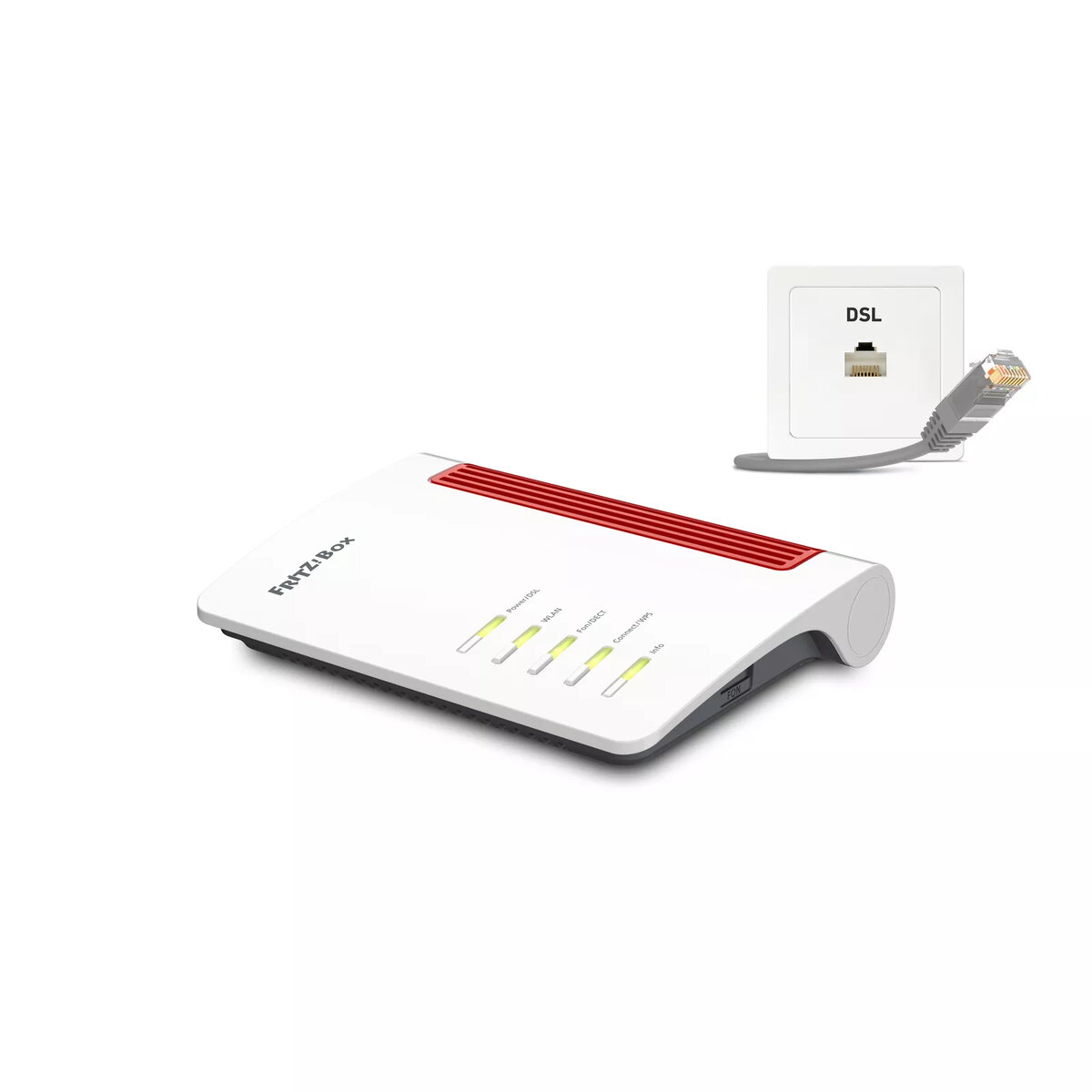

Tabletop router FRITZ!Box 7530 AX Dual-band Wi-Fi 6

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Indication light:

Yes

3G: Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.

Yes

RJ-11 ports quantity:

1

Power source type: What the power source is.

DC

Product type: The sub-category of the product.

Tabletop router

Firewall:

Yes

4G: Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.

No

Wi-Fi band: The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Ethernet LAN interface type: The characteristics of the Ethernet LAN interface.

Gigabit Ethernet

DSL WAN: Whether or not the product features a DSL WAN (Wide Area Network) connection option.

Yes

Ethernet WAN:

Yes

3G/4G USB modem compatibility:

Yes

ADSL:

Yes

VDSL:

Yes

WLAN data transfer rate (max):

2400 Mbit/s

WLAN data transfer rate (first band):

1800 Mbit/s

WLAN data transfer rate (second band):

600 Mbit/s

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6 (802.11ax)

5G:

No

USB sharing:

Yes

MU-MIMO technology:

No

Intelligent Mesh technology:

Yes

Antenna design:

Internal

Logistics data

Harmonized System (HS) code:

85176990

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Cables included:

LAN (RJ-45), DSL

AC adapter included:

Yes

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

150 mm

Depth: The distance from the front to the back of something.

37 mm

Width: The measurement or extent of something from side to side.

208 mm

Technical details

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

Mobile network

SIM card slot: Whether the device features a SIM card slot.

No

Design

Product colour: The colour e.g. red, blue, green, black, white.

White

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

6 W

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4

Management features

Firmware upgradeable:

Yes

Wake-on-LAN ready:

Yes

Protocols

DHCP server: A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Yes

Universal Plug and Play (UPnP):

Yes

Security

VPN support:

IPSec

Network address translation (NAT):

Yes

Guest access:

Yes

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA2, WPA3

Features

Dynamic DNS (DDNS):

Yes

MIMO:

Yes

Automatic channel selection:

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000
