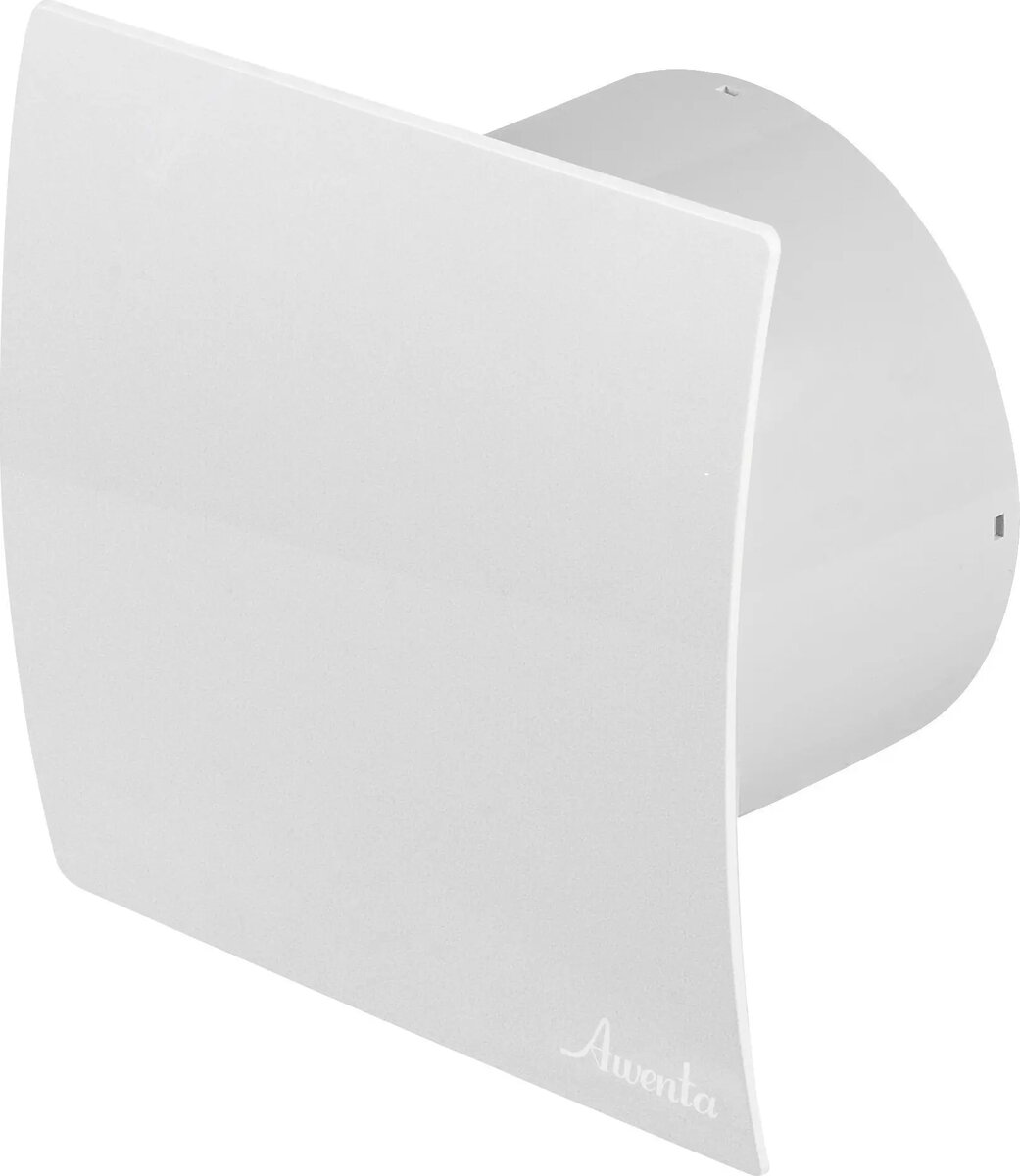

Bathroom extractor fan AWENTA WEB100T Escudo Ø100 mm 94 m³/h 14 W 230 V with timer, white

AWENTA WEB100T Escudo Ø100 mm is a compact bathroom extractor fan designed for ventilation of bathrooms and small wet rooms. The fan offers a rated airflow of 94 m³/h with a power consumption of 14 W at 230 V and is supplied in a white housing suitable for wall or ceiling mounting. An integrated timer switch provides delayed shutoff to continue extracting humid air after the room is vacated, helping to reduce condensation and limit mold formation.

Advantages

The fan combines a small footprint with relatively high airflow for its duct diameter, delivering continuous extraction while consuming low power. Its integrated timer allows adjustable post-run operation to remove residual moisture without requiring separate controls. The white finish and compact design make installation into most standard bathroom layouts straightforward, and the unit supports both wall and ceiling installations to suit different ventilation outlet arrangements.

Suitable for

• Bathrooms and shower rooms
• Small wet rooms and utility rooms
• Extraction from internal rooms with 100 mm ducting
• Applications requiring delayed shutoff to remove residual humidity

Key specifications

• Duct diameter: 100 mm
• Rated airflow: 94 m³/h
• Power consumption: 14 W
• Supply voltage: 230 V
• Integrated timer for delayed shutoff
• Mounting options: wall or ceiling
• Colour: white

How to use

Install the extractor fan into a 100 mm duct opening in a suitable wall or ceiling location following local electrical and building regulations. Connect the unit to a 230 V supply and wire the timer control per the installation instructions so that the fan runs when the light or a switch is turned on and continues operation for the selected delay period after the switch is turned off. Ensure the outlet ducting is properly routed to the exterior or to a suitable termination point to avoid recirculation of moist air.

Usage recommendations

Position the fan close to the main moisture source (for example near the shower or bath) and set the timer delay long enough to clear residual humidity after use. Regularly inspect and clean the grille and impeller to maintain airflow, and verify that external ducting and termination points remain unobstructed.
