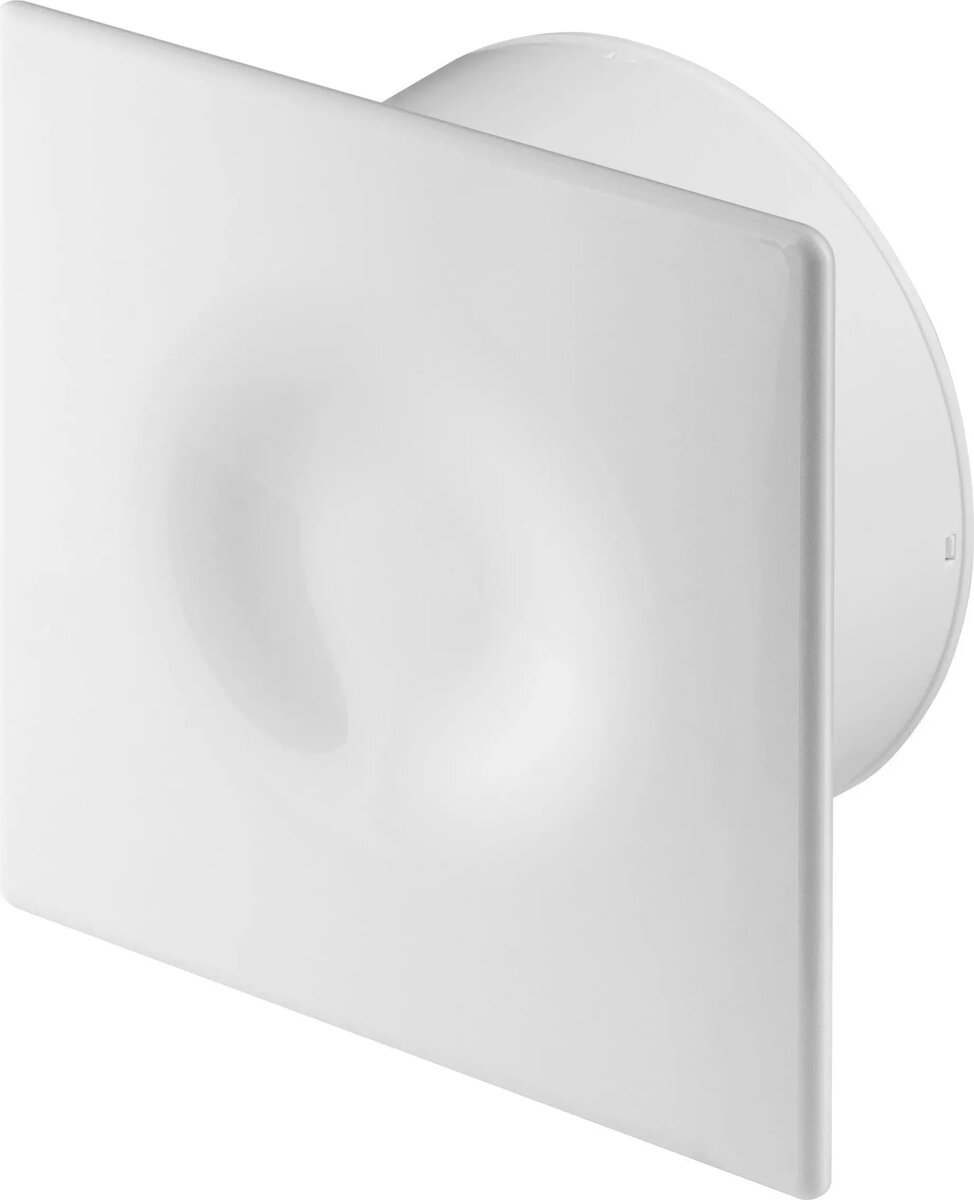

Bathroom Ventilator AWENTA WL100R, axial fan Ø100 mm, 42/70 m³/h, 4/6 W, 230 V, motion sensor, white

AWENTA WL100R is a compact axial bathroom ventilator with a 100 mm diameter designed for exhaust ventilation in small rooms. The unit provides two airflow levels — 42 m³/h and 70 m³/h — while consuming 4 W and 6 W respectively on a 230 V supply. A built-in motion sensor enables automatic activation when movement is detected, allowing hands-free operation and timed extraction routines suitable for bathrooms, toilets and small utility spaces.

Advantages

The ventilator combines low power consumption with two selectable performance settings for adaptable ventilation intensity. Its axial fan design and compact Ø100 mm housing allow simple installation in existing ducts or wall openings. The integrated motion sensor provides automatic on/off control, reducing the need for additional switches and supporting energy-efficient operation. The white finish offers a neutral appearance that integrates into standard bathroom interiors.

Suitable for

• Bathrooms and showers requiring automatic exhaust ventilation
• Toilets and guest WCs with presence-triggered extraction
• Small utility rooms, laundry rooms and storage areas

Key specifications

• Fan type: axial
• Fan diameter: 100 mm
• Airflow rates: 42 m³/h and 70 m³/h
• Power consumption: 4 W (low) and 6 W (high)
• Supply voltage: 230 V
• Integrated motion sensor for automatic activation
• Color: white

How to use

Install the ventilator in a suitable wall or duct opening compatible with a 100 mm diameter fan, following local electrical and building codes. Connect the unit to a 230 V supply and ensure proper wiring for the motion sensor and fan power according to the manufacturer's wiring diagram. Once powered, the motion sensor activates the fan when movement is detected; the fan runs at the selected performance level and switches off automatically after the absence of motion or according to any built-in timer function.

Usage recommendations

Position the unit to exhaust air from the wettest or most odour-prone area and avoid installing directly adjacent to strong heat sources. For reliable operation, use ducting with minimal bends and maintain a clear inlet/outlet. Periodically inspect and clean the fan grille and impeller to prevent dust buildup that could reduce airflow and sensor responsiveness.
