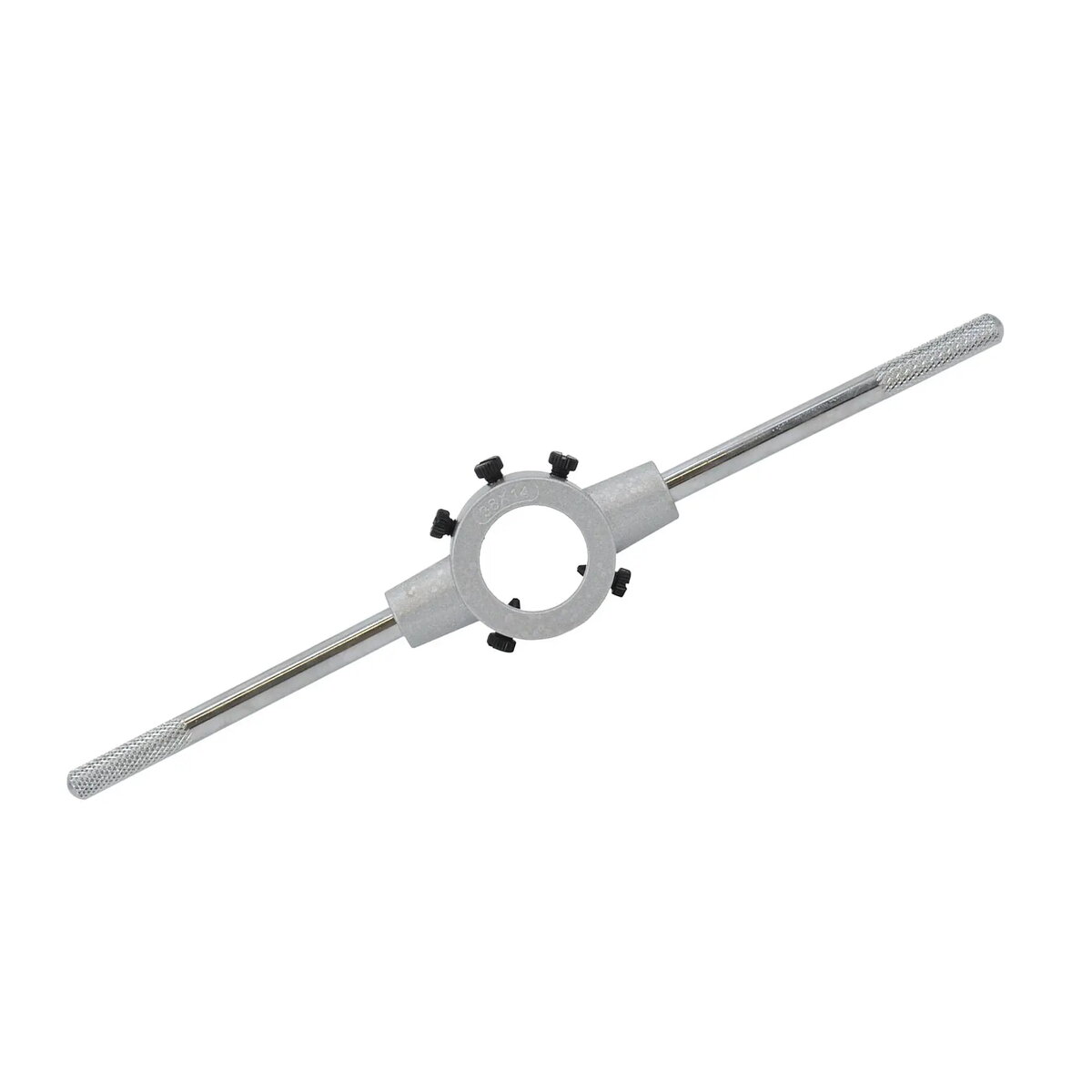

AWTOOLS AW20246 threading tool

The AWTOOLS AW20246 threading tool is a hand-held die stock designed for rigid clamping of round thread dies in general metalworking and maintenance tasks. Constructed from carbon alloy steel and aluminum, the tool combines strength and reduced weight. The removable galvanized steel handles are knurled at the ends for improved grip. The die holder is compatible with closed and slotted dies and follows DIN 225 dimensions, with an adjustable die clamp secured by five screws.

Advantages

The tool’s alloy steel and aluminum construction provides a balance of durability and manageable weight, making it suitable for repeated manual threading operations. Removable, galvanized steel handles with knurling ensure secure hand contact and better torque control. The five-screw adjustable die clamp offers precise centring and secure retention of dies, while compatibility with both closed and slotted dies increases versatility for different threading standards and repair jobs.

Suitable for

• Manual cutting or restoring external threads on rods and bolts
• Workshop maintenance and mechanical repairs requiring hand threading
• Field service and on-site threading where powered tools are unavailable
• Use with closed and slotted round dies to meet various thread profiles

Key specifications

• Overall depth: 200 mm
• Height: 7 mm
• Weight: 82 g
• Materials: carbon alloy steel and aluminum body
• Handles: removable galvanized steel, knurled ends
• Die clamp: adjustable via five screws for rigid die holding
• Die compatibility: closed and slotted round dies
• Standard: DIN 225

How to use

Select the appropriate closed or slotted round die for the required thread size and place it into the die holder. Secure the die by evenly tightening the five adjustment screws until the die is rigidly clamped and centered. Attach or position the removable handles to obtain the desired leverage. Align the die with the workpiece, apply cutting lubricant as recommended for the material, and turn the tool steadily to cut or restore the external thread. Periodically reverse direction to clear chips and check thread progress, then release the screws to remove the die when finished.

Usage recommendations

Use appropriate cutting lubricants for the material being threaded, ensure even tightening of the five clamp screws to avoid die misalignment, and keep the knurled handles clean and free of oil for better grip. Inspect dies and the clamping surfaces for wear before use and store the removable handles and dies in a dry place to prevent corrosion.
