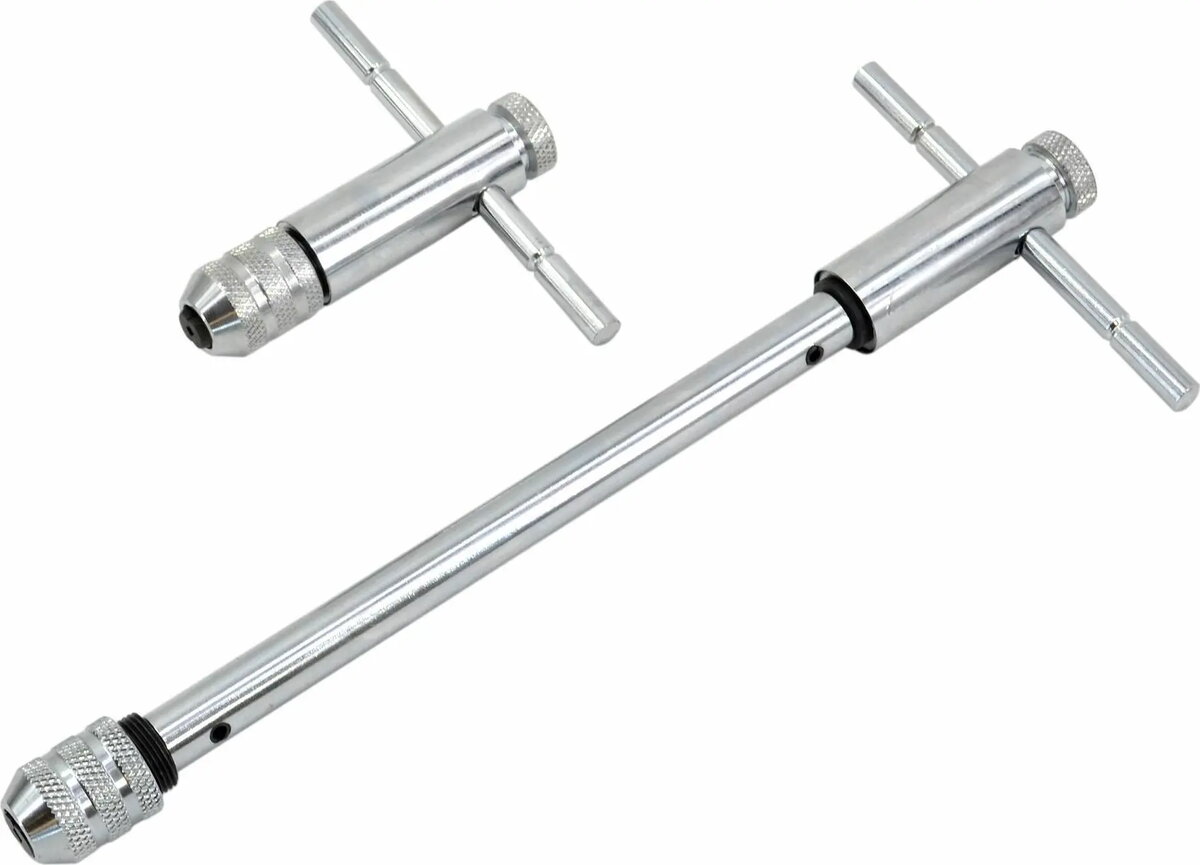

Threading Tap Wrench AWTools AW20306 for M5–M12 taps, 100 mm clamping T-handle with ratchet

AWTools AW20306 is a clamping T-handle tap wrench designed for reliable manual tapping of threaded holes using taps sized from M5 to M12. The tool has a 100 mm body and a built-in ratchet mechanism that allows both continuous and reversible turning, providing controlled rotation when cutting threads in metal or other machinable materials. The clamping collet secures the tap firmly to reduce slippage and maintain alignment during use, making the wrench suitable for workshop, repair and assembly environments.

Advantages

The 100 mm T-handle offers good leverage while remaining compact enough for use in confined spaces. The ratchet function enables efficient forward and reverse movement without repositioning the handle, which simplifies tapping in through-holes or blind holes. The clamping collet design provides secure retention of taps and quick changeover between different tap sizes within the M5–M12 range. The hand-operated construction gives the user tactile feedback and direct control over cutting speed and pressure.

Suitable for

• Hand tapping of threaded holes in metal, aluminum, brass and similar materials
• Maintenance and repair tasks requiring controlled thread cutting
• Assembly work in workshops, garages and production lines
• Situations where a compact manual tap wrench with ratchet action is preferred

Key specifications

• Supported tap size range: M5–M12
• Overall clamping body length: 100 mm
• Type of handle: T-handle for two-handed leverage
• Drive mechanism: reversible ratchet for continuous or back-and-forth turning
• Tap retention: clamping collet for secure holding and quick changes

How to use

Fit the appropriate tap into the clamping collet and tighten according to the tool's clamping mechanism to ensure the tap is held securely and aligned. Position the tap perpendicular to the workpiece and apply steady downward pressure while turning the T-handle to cut the thread. Use the ratchet setting for forward-only movement when cutting or switch to reversible action to clear chips and back out the tap periodically. Maintain a slow, even turning speed and use appropriate cutting fluid for the material being tapped to extend tap life and improve thread quality.

Usage recommendations

For best results, select the correct tap type and lubrication for the workpiece material, keep the tap perpendicular to the hole during cutting, and periodically reverse the ratchet slightly to break chips and prevent binding. Inspect taps for wear or damage before use and replace them if cutting performance declines.
