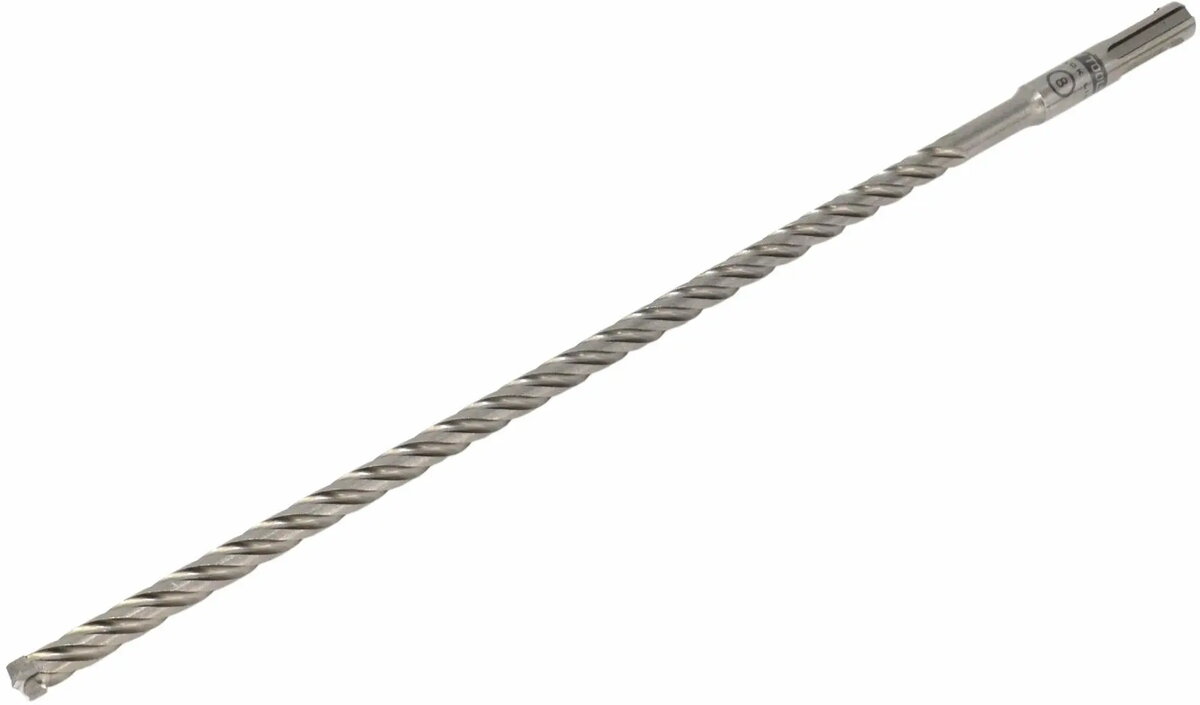

Drill bit AWTools SDS Plus 14 x 800 mm QUADRO XTREME BLACK LINE

AWTools Drill bit SDS Plus 14 x 800 mm QUADRO XTREME BLACK LINE is a long-reach rotary drilling tool designed for use with SDS Plus rotary hammers. With a 14 mm diameter and an overall length of 800 mm, this bit is intended for drilling deep anchors, through-holes and other construction tasks in concrete, masonry and natural stone. The QUADRO tip profile improves debris evacuation and stability at the cutting edge, while the SDS Plus shank ensures secure coupling to compatible rotary hammers.

Advantages

The QUADRO XTREME BLACK LINE bit combines a long working length with a narrow diameter to enable deep drilling without frequent extension or rod changes. The specialized tip geometry enhances dust and chip removal for more efficient drilling and reduced jamming. The SDS Plus shank provides reliable tool retention and quick bit changes. The durable surface finish increases resistance to wear during repeated use in abrasive materials.

Suitable for

• Drilling deep anchor holes in concrete and reinforced concrete
• Through-holes for wiring or plumbing in masonry walls
• Long-reach holes in stone and blockwork
• Construction and renovation tasks requiring stable, extended drilling

Key specifications

• Shank type: SDS Plus compatible
• Cutting tip profile: QUADRO tip for improved material removal
• Diameter: 14 mm
• Total length: 800 mm
• Intended materials: concrete, masonry, natural stone
• Application: rotary hammer drilling for deep and through holes

How to use

Select an SDS Plus rotary hammer with adequate impact energy and set it to the rotary hammer drilling mode. Insert the AWTools QUADRO XTREME bit into the chuck until it locks, then position the tip at the drilling location. Apply steady axial pressure while allowing the tool to perform the cutting and impact action; avoid excessive lateral force that can bend the long bit. Periodically withdraw the bit to clear dust and chips from the hole and to prevent blockage. For through-holes or deep anchors, confirm required depth and use depth stops or marking on the bit as needed.

Usage recommendations

Wear appropriate personal protective equipment, including eye and ear protection and a dust mask. Use a vacuum dust extraction system or intermittent drilling with withdrawal to reduce dust. Match drill speed and hammer force to the material hardness; for reinforced concrete, start with lower advance pressure and increase as needed. Inspect the shank and tip before each use and replace the bit if the cutting edges show significant wear or if the shank is deformed.
