video server Axis 01680-001

Name: video server Axis 01680-001 01680-001
Brand: AXIS
SKU: 2096500
Price: 578.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Axis 01680-001 video server supports a maximum resolution of 1920 x 1080 pixels at 30 fps. It features advanced video compression formats including AVC, H.264, H.265, HEVC, and MPEG4. With 1024 MB of internal memory and 512 MB of flash memory, it is compatible with MicroSD, MicroSDHC, and MicroSDXC cards. The device is equipped with LED status indicators and complies with various EMC certifications. It supports multiple network protocols and security algorithms, ensuring reliable connectivity and data protection.

Available at price 578.99 €: 96 pcs.

Total available for order: 194 pcs.

Warranty: 2 Years

SKU: 2096500

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

25.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

25.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

30.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.84 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

30.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 639.99 €: 96 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

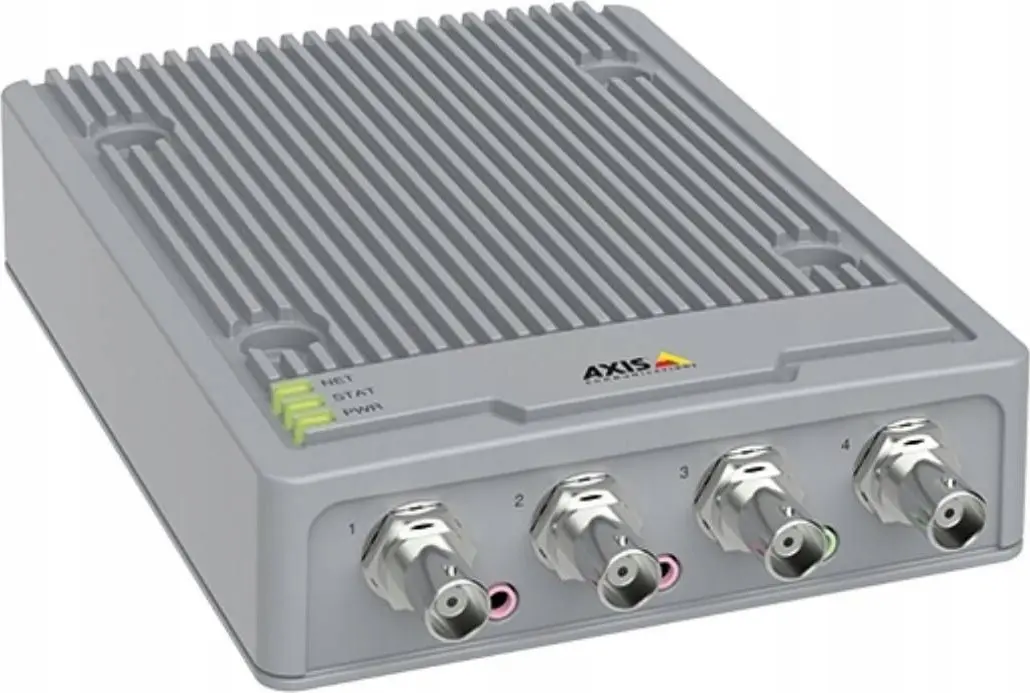

AXIS P7304 is a 4-channel video encoder that integrates analog camera systems into IP surveillance. It supports both standard and HD analog cameras, including analog PTZ models, with resolutions up to 4K. The device provides two-way audio, I/O ports and a memory card slot for edge storage. It also includes intelligent analytics such as motion detection, audio detection and tampering alarm, and uses Zipstream with H.264/H.265 to reduce bandwidth and storage needs.

Advantages

AXIS P7304 enables existing analog cameras to connect to IP systems without camera replacement, preserving investment in legacy equipment. Support for up to 4K analog input and analog PTZ cameras allows higher-resolution capture and remote control. Built-in security features like signed firmware and secure boot protect the encoder’s firmware integrity. Zipstream with H.264/H.265 lowers network bandwidth and storage consumption. On-device features such as two-way audio, I/O ports, memory card slot and basic analytics simplify deployment and edge recording.

Key specifications

Channels: 4 analog input channels
Supported resolutions: up to 4K for analog cameras
Supported camera types: standard analog, HD analog, analog PTZ
Video compression: H.264 and H.265 with Zipstream
Audio: two-way audio support
Storage: memory card slot for edge storage
Inputs/Outputs: I/O ports for integration
Security: signed firmware and secure boot
Analytics: motion detection, audio detection, tampering alarm

How to use

Connect up to four analog cameras to the encoder’s input ports and link the encoder to the IP network via Ethernet. Configure camera settings and encoding parameters through the device web interface or compatible VMS, selecting H.264 or H.265 with Zipstream to optimize bandwidth and storage. Insert a memory card for local recording if required and configure I/O ports and audio settings for two-way communication. Enable built-in analytics like motion detection and tampering alarm through the management interface to receive events and recordings.

Recommendations

For reliable operation, use high-quality coaxial or twisted-pair cabling and ensure the encoder firmware is kept up to date to benefit from signed firmware and secure boot. Choose H.265 with Zipstream when possible to reduce storage and bandwidth; use the memory card slot for temporary local recording or as a backup to central storage.

Specifications

Ethernet LAN (RJ-45) ports:: 1
Channels quantity:: 4 channels
Weight:: 0.65 kg
Product colour:: Grey

All features

Line-out:: Yes
Wall mountable:: Yes
Quality of Service (QoS) support:: Yes
Manual:: Yes
Active tampering alarm:: Yes
Audio detection:: Yes
IP address filtering:: Yes
NTSC resolutions:: 720x480
PAL resolutions:: 720x576
Image settings:: Sharpness, Rotation, Privacy mask, Mirroring, Contrast, Compression, Color, Brightness
I/O terminal ports:: 1

Ports & interfaces

Compatible memory cards:: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Line-in:: Yes
Networking standards:: IEEE 802.3af, IEEE 802.3at
Microphone in:: Yes
Power over Ethernet (PoE):: Yes
Card reader integrated:: Yes
BNC input ports:: 4
RS-485 ports:: 2
Copper ethernet cabling technology:: 1000BASE-T, 10BASE-T, 100BASE-T

Memory

Internal memory:: 1024 MB
Flash memory:: 512 MB

Network

Supported network protocols:: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Ethernet LAN (RJ-45) ports:: 1

Wireless LAN features

Security algorithms:: HTTPS

Performance

Certification:: EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267
LED indicators:: Status
Product colour:: Grey
Video compression formats:: MPEG4, HEVC, H.265, H.264, AVC
Channels quantity:: 4 channels
Video motion detection:: Yes
Maximum video resolution:: 1920 x 1080
Maximum frame rate:: 30 fps
PTZ control:: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 8.2 W

Weight & dimensions

Weight:: 0.65 kg
Height:: 37 mm
Width:: 187 mm

Operational conditions

Operating relative humidity (H-H):: 10 - 85
Storage temperature (T-T):: -40 - 65
Operating temperature (T-T):: 0 - 50
