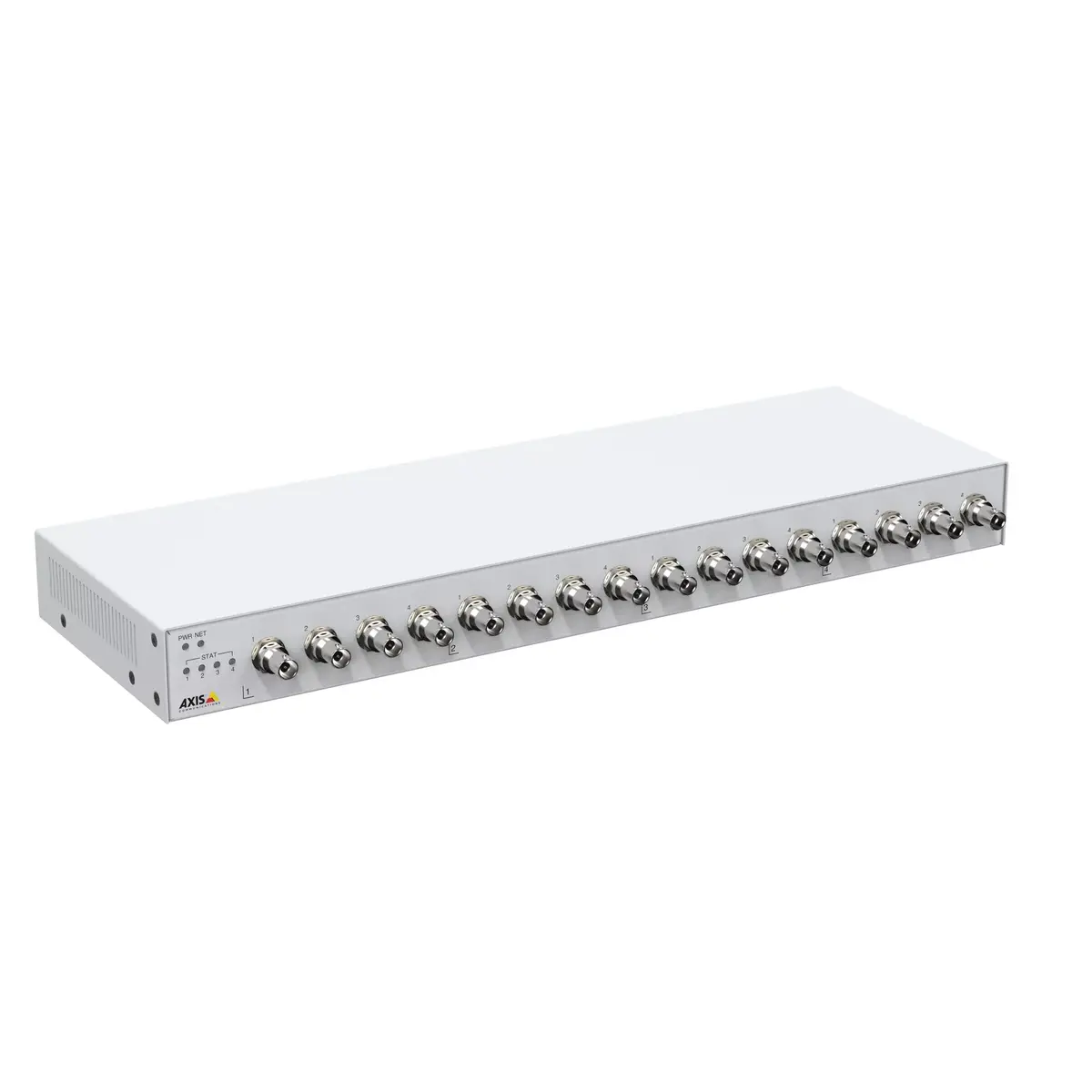

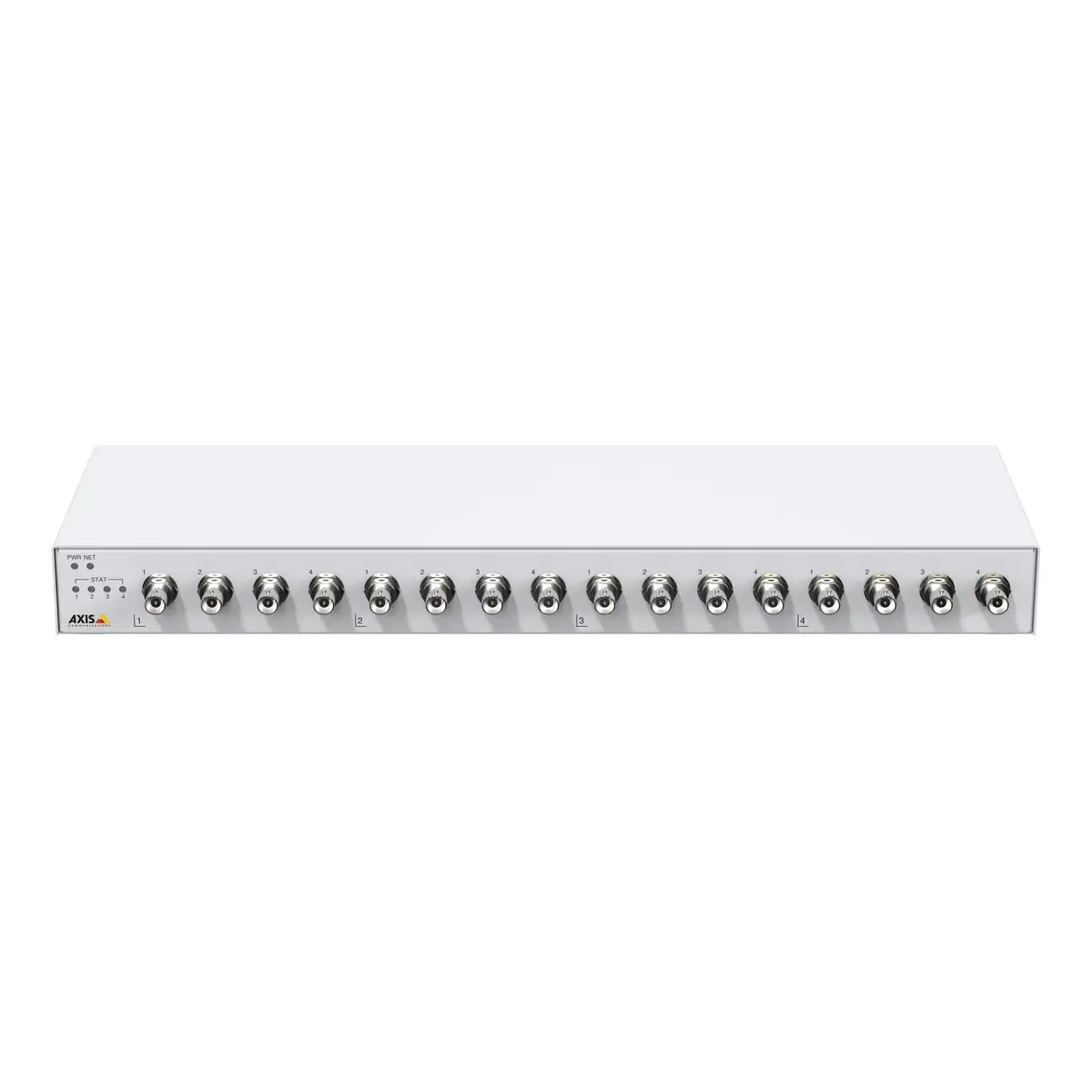

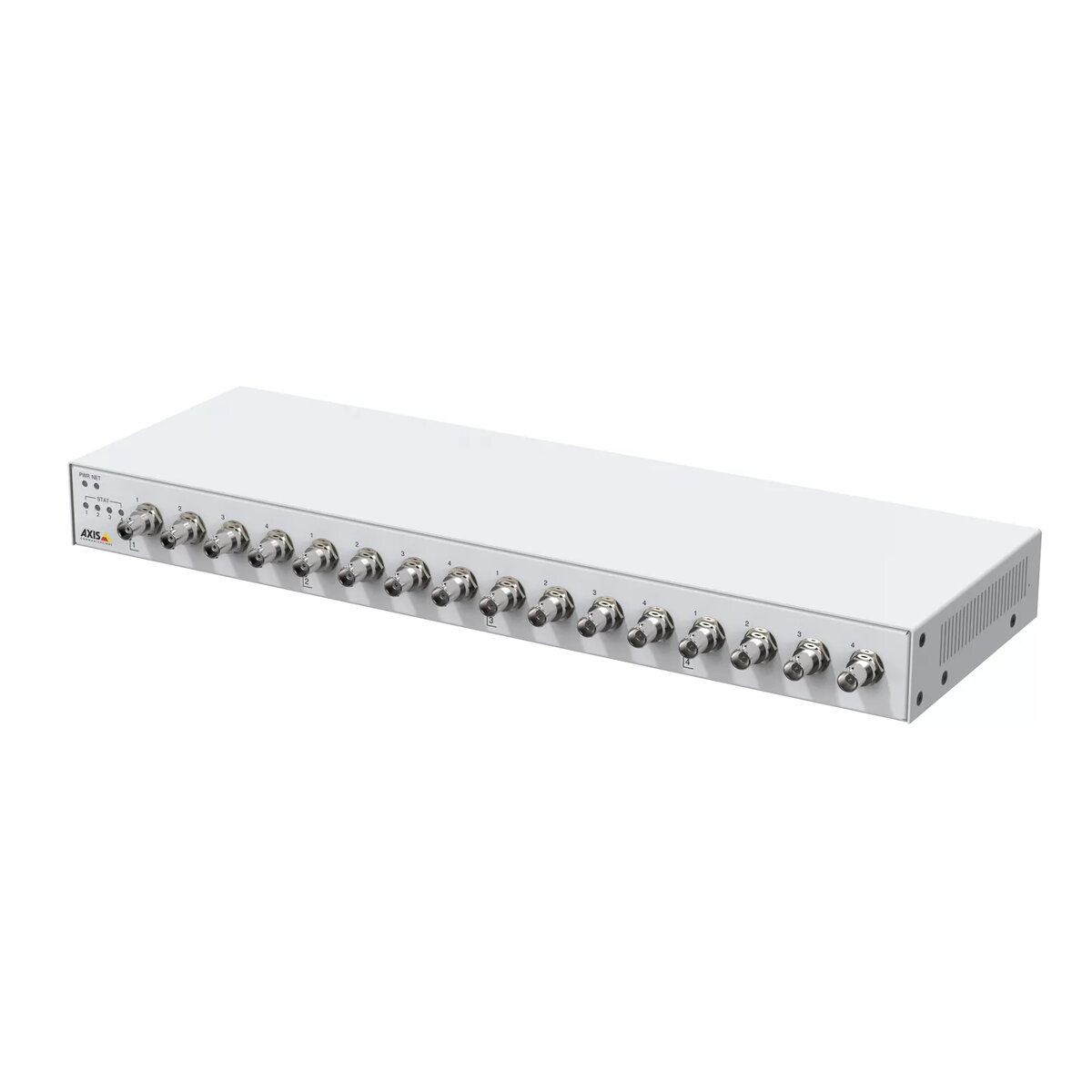

AXIS M7116 16-Channel Video Encoder 720 x 576 Pixels 30 fps H.264 H.265 White

Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.

Yes

Safety: List of regulatory safety standards for all countries in which this product has been certified.

IEC/EN/UL 62368-1

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

Angle of rotation:

270 °

Quality of Service (QoS) support:

Yes

Frame rate:

30 fps

Active tampering alarm:

Yes

IP address filtering:

Yes

NTSC resolutions:

176x120 - 720x480

PAL resolutions:

176x144 - 720 x 576

Image settings:

Rotation, Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Sharpness

RS-422 ports:

4

Packaging content

Quick installation guide:

Yes

Operational conditions

Operating relative humidity (H-H):

10 - 85

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 65

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 50

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2.05 kg

Height: The measurement of the product from head to foot or from base to top.

44 mm

Depth: The distance from the front to the back of something.

145 mm

Width: The measurement or extent of something from side to side.

440 mm

Memory

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

1024 MB

Flash memory:

512 MB

Network

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Ports & interfaces

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1x

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

RS-485 ports:

4

BNC input ports: Ports (sockets) to connect BNC inputs. The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable.

16

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

26 W

Wireless LAN features

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

EAP-TLS

Performance

Compatible memory cards: Types of memory cards which can be used with this product.

MicroSDXC, MicroSDHC, MicroSD (TransFlash)

Product colour: The colour e.g. red, blue, green, black, white.

White

Channels quantity: The number of channels the device has. There can be an individual input or output for each channel.

16 channels

Maximum frame rate: This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).

30 fps

PTZ control:

Yes

Video motion detection:

Yes

Video compression formats:

H.265, H.264

Maximum video resolution: This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible.

720 x 576
