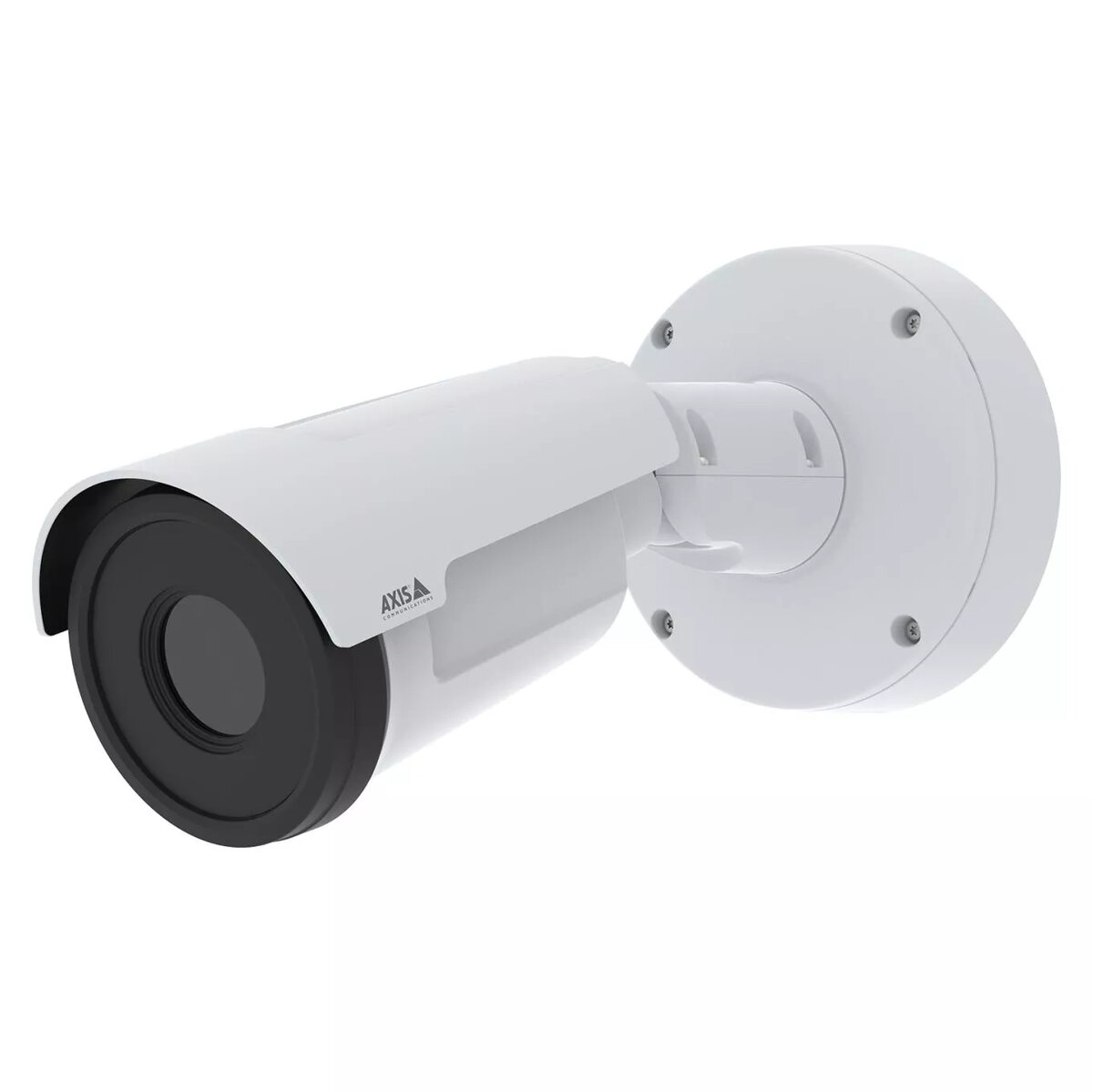

IP security camera Axis 02174-001 Bullet Outdoor 384x288

IP security camera Axis 02174-001 Bullet Outdoor Photo 1
IP security camera Axis 02174-001 Bullet Outdoor Photo 2
IP security camera Axis 02174-001 Bullet Outdoor Photo 3
IP security camera Axis 02174-001 Bullet Outdoor Photo 1
IP security camera Axis 02174-001 Bullet Outdoor Photo 2
IP security camera Axis 02174-001 Bullet Outdoor Photo 3
IP security camera Axis 02174-001 Bullet Outdoor Photo 1
IP security camera Axis 02174-001 Bullet Outdoor Photo 2
IP security camera Axis 02174-001 Bullet Outdoor Photo 3
IP security camera Axis 02174-001 Bullet Outdoor Photo 1
IP security camera Axis 02174-001 Bullet Outdoor Photo 2
IP security camera Axis 02174-001 Bullet Outdoor Photo 3
IP security camera Axis 02174-001 Bullet Outdoor 384x288
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The Axis 02174-001 is a bullet IP security camera designed for outdoor use. It features a resolution of 384 x 288 pixels, a horizontal viewing angle of 55°, and a lens diameter of 7 mm. With a wired connectivity option and wall mounting capability, this camera is ideal for reliable surveillance. The microbolometer sensor ensures high-quality thermal imaging, making it effective in various lighting conditions.
Warranty: 2 Years
SKU: 10644454
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The AXIS Q1961-TE (product code 02174-001) is an outdoor bullet IP security camera with a 384 x 288 thermal resolution and a microbolometer sensor. It provides remote temperature monitoring from -40 °C to 350 °C (-40 °F to 660 °F) and a 55° horizontal field of view with a 7 mm lens. Designed for wired wall-mounted installations, the camera supports up to 10 configurable polygonal detection areas and includes built-in cybersecurity and edge-to-edge technology for connecting network speakers and audio alarms.

Advantages

The camera enables continuous thermal monitoring to identify overheating risks and reduce downtime by issuing early alerts. It supports advanced analytics for early fire detection with filtering to minimise false alarms. With a microbolometer sensor it delivers reliable imaging in varied lighting conditions, and integrated cybersecurity features help protect the device and network. Edge-to-edge capability allows audio alarm integration for immediate on-site notification.

Suitable for

  • Perimeter and outdoor site surveillance
  • Equipment and machinery temperature monitoring
  • Early fire detection in industrial and utility environments
  • Remote monitoring of electrical cabinets and substations

Key specifications

  • Model: AXIS Q1961-TE (02174-001)
  • Thermal resolution: 384 x 288 pixels
  • Temperature range: -40 °C to 350 °C (-40 °F to 660 °F)
  • Frame rate: 30 fps
  • Horizontal field of view: 55°; lens: 7 mm
  • Sensor: microbolometer
  • Connectivity: wired Ethernet (no Wi‑Fi)
  • Mounting: wall
  • Placement: outdoor; colour: white
  • Weight: 1.4 kg

How to use

Install the camera on a stable wall mount and connect it to your network via Ethernet. Configure up to 10 polygonal detection areas through the camera interface or management software, setting temperature thresholds or change-rate alarms as required. Enable early fire detection analytics and adjust filtering parameters to balance sensitivity and false-alarm suppression. If desired, connect compatible network speakers using the edge-to-edge audio capability for audible alerts.

Usage recommendations

Position the camera to cover critical equipment or zones with clear line of sight, avoid direct obstructions, and schedule periodic checks of firmware and cybersecurity settings to maintain reliable operation.

Specifications

Frame rate:
30 fps
Weight:
1.4 kg
Ethernet LAN:
Yes
Wi-Fi:
No
Video motion detection:
Yes
Placement supported:
Outdoor
Connectivity technology:
Wired
Mounting type:
Wall
Type:
IP security camera
Product colour:
White
All features

Performance

Type:
IP security camera
Processor model:
ARTPEC-8
Certification:
CSA, UL/cUL, UKCA, CE, KC
Connectivity technology:
Wired
Languages support:
CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, THA, TUR, VIE
Placement supported:
Outdoor
Number of languages:
19
Built-in processor:
Yes
Thermal module:
Yes
Thermal sensitivity (NETD):
40 mK

Camera

Camera pixel size:
17 µm
Lens viewing angle, horizontal:
55

Lens system

Maximum aperture number:
1.18
Lens diameter:
7 mm

Video

Maximum resolution:
384 x 288
Video compression formats:
H.264, H.265, M-JPEG
Frame rate:
30 fps
Video recording:
Yes
Video streaming:
Yes
Privacy masking:
Yes
Gain control type:
Auto

Storage

Internal memory:
2048 MB
Flash memory:
8192 MB
Compatible memory cards:
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated:
Yes
Built-in HDD:
No

Ports & interfaces

Ethernet LAN (RJ-45) ports:
1
Headphone outputs:
1
DC-in jack:
Yes
Terminal block port:
Yes

Security

Mirror:
Yes
Temperature measurement range:
-40 - 350
Video motion detection:
Yes
Active tampering alarm:
Yes
IP address filtering:
Yes
Password protection:
Yes
Temperature sensor:
Yes
Temperature measurement accuracy:
5 °C
Pixel counter:
Yes
Digest authentication:
Yes
Fire detection:
Yes
Network access storage (NAS):
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
4.1 W
DC output voltage:
10, 12, 15, 16, 24, 28
Power source type:
DC, PoE
Power consumption (max):
12.95 W
Power consumption (Power over Ethernet (PoE)):
4.3 W

Weight & dimensions

Weight:
1.4 kg
Length:
272 mm
Diameter:
132 mm

Features

Number of cameras:
1

Night vision

Night vision:
No

Network

Supported network protocols:
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Ethernet LAN:
Yes
Networking standards:
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Bluetooth:
No
Wi-Fi:
No
Quality of Service (QoS) support:
Yes
Ethernet interface type:
Gigabit Ethernet

Packaging content

Manual:
Yes
Packaging content:
Drill template, TORX L-keys, terminal block connectors, connector guard, cable gaskets, owner authentication key

Design

Form factor:
Bullet
Product colour:
White
Housing material:
Aluminium, Polycarbonate (PC)
Mounting type:
Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP66, IP67
IK code:
IK10

Image sensor

Sensor type:
Microbolometer
Sensor type (thermal module):
Noise equivalent temperature difference (NETD)

Audio

Audio system:
1-way
Audio output channels:
1
Audio input channels:
1

Operational conditions

Operating relative humidity (H-H):
10 - 100
Storage temperature (T-T):
-40 - 65
Operating temperature (T-T):
-40 - 60
Storage relative humidity (H-H):
5 - 95
