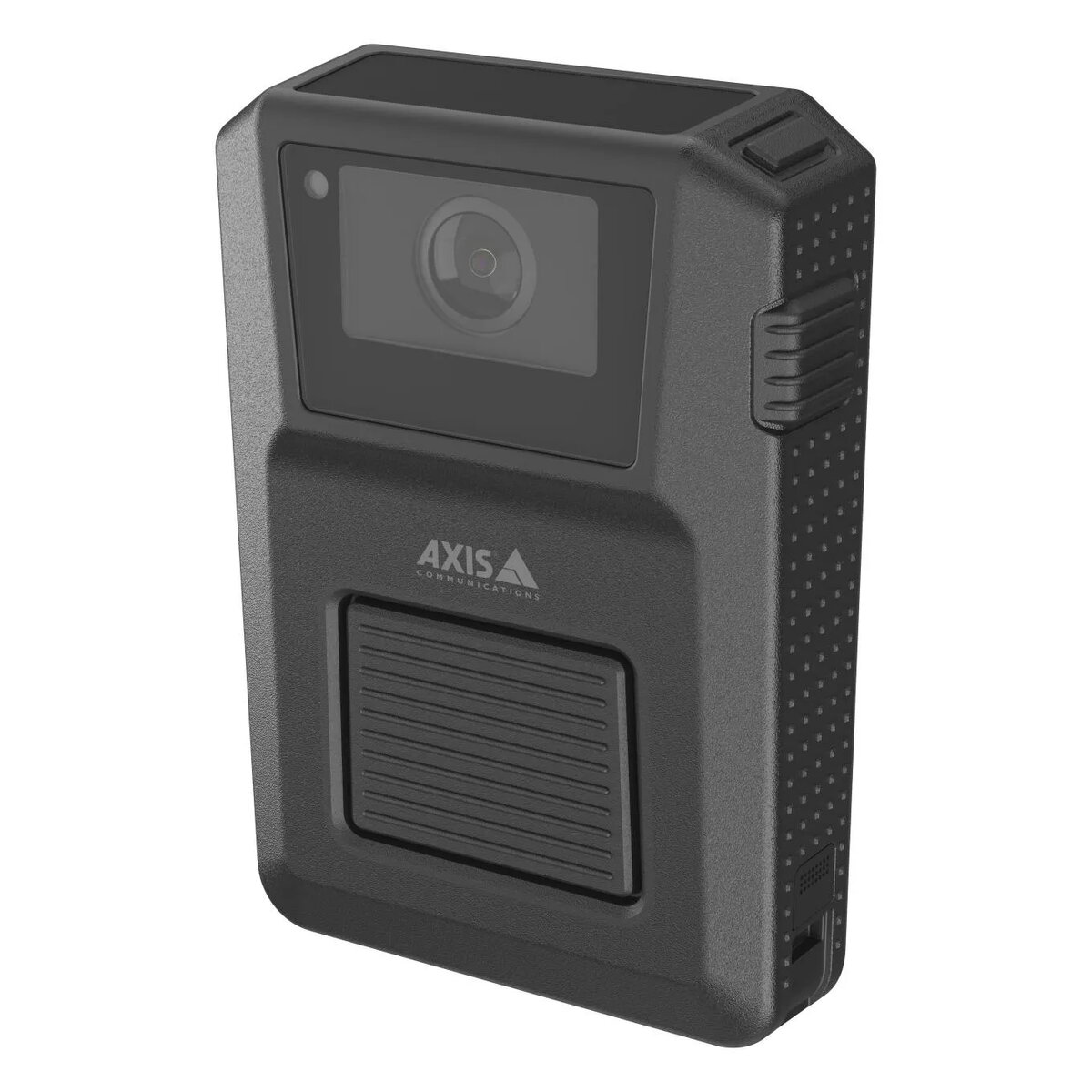

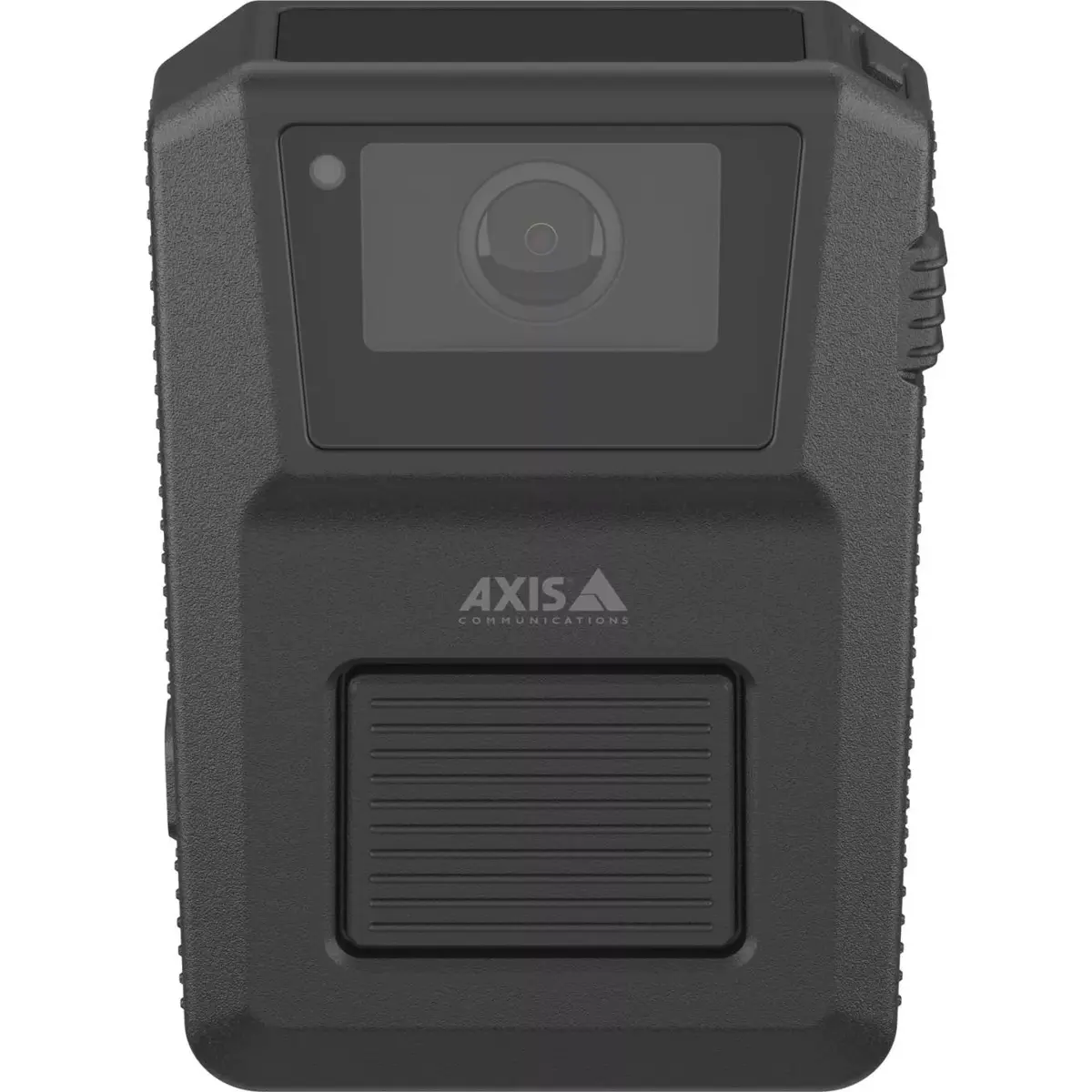

Body camera Axis W120 Wireless CMOS 1920 x 1080 pixels

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

160 x 80

Maximum frame rate: This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).

60 fps

Image stabilizer type:

Electronic Image Stabilization (EIS)

Built-in display: A display which is part of the product, so you do not need to attach another display.

Yes

Vertical field of view:

76 °

Accelerometer:

Yes

Gyroscope:

Yes

Housing colour: The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment.

Black

Internal memory: A computer's memory which is directly accessible to the CPU.

64 GB

GLONASS:

Yes

USB port type:

USB Type-C

Live streaming:

Yes

Technical details

Product type: The sub-category of the product.

Torso body camera

Sustainability certificates:

RoHS, REACH

Other features

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.1

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.2 kg

Height: The measurement of the product from head to foot or from base to top.

100.2 mm

Depth: The distance from the front to the back of something.

34 mm

Width: The measurement or extent of something from side to side.

67.7 mm

Operational conditions

Storage relative humidity (H-H):

5 - 95

Operating relative humidity (H-H):

10 - 100

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 45

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-20 - 50

Battery

Battery included:

Yes

Battery capacity: A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.

3600 mAh

Power

Battery life (max): Maximum battery life. Mobile Mark™ (2002) is the standard often used to benchmark battery life time.

15 h

Power source type: What the power source is.

Battery

Ports & interfaces

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Network

Mobile network generation:

4G

SIM card type:

NanoSIM

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Audio

Sample rate:

48 kHz

Audio codecs:

AAC-LC

Video

Image stabilizer: This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions.

Yes

Supported video modes: The video modes that can be displayed by the device.

720p, 1080p

Video compression formats:

MPEG4, H.264, AVC

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

1920 x 1080

Lens system

Fixed focal length:

2.3 mm

Maximum aperture number:

2.1

Image sensor

Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.

CMOS

Camera

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

137 °

Camera shutter speed: Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.

1/20000 - 1/25

Minimum illumination: Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.

0.1 lx

Design

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

0.96 "

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP67

Housing material: What the casing of the product is made of.

Plastic

Performance

GPS (satellite): Global Positioning System (GPS) is a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. The system provides critical capabilities to military, civil and commercial users around the world. It is maintained by the United States government and is freely accessible to anyone with a GPS receiver.

Yes

Wide Dynamic Range (WDR):

Yes

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wireless
