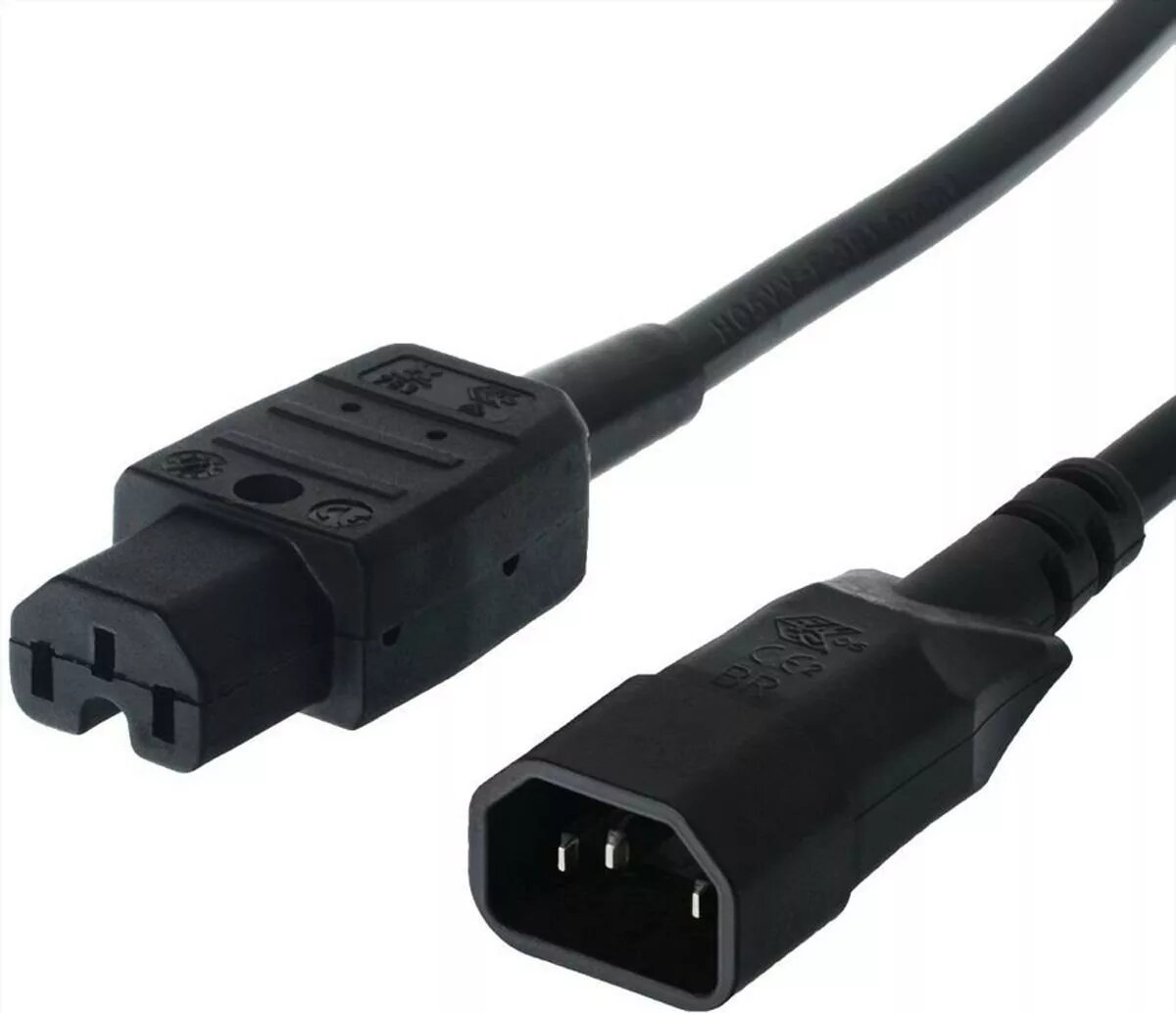

Power cable Bachmann 356.1260 C14 to C15, 1 m, 10 A, 3×1.5 mm², black

Bachmann 356.1260 is a 1‑metre power cable with an IEC C14 (male) plug to IEC C15 (female) connector, designed for single‑phase mains connections. The cable is rated for 10 A and uses three conductors of 1.5 mm² in a black insulated jacket. It provides a compact connection solution for devices that require a C15 inlet, combining a heat‑resistant C15 coupling with a standard C14 supply plug suitable for common power distribution units and desktop power supplies.

Advantages

The cable offers a simple, industry‑standard interface for connecting equipment with a C15 inlet to power sources using a C14 outlet. Its 1.5 mm² conductors support stable 10 A operation while the C15 connector is shaped to accommodate higher temperature loads around the connector area. The 1 m length is practical for close‑proximity installations, reducing excess cable and clutter. The black outer jacket provides a neutral appearance that integrates with server racks, AV equipment, and office setups.

Suitable for

• Connecting servers, network switches or power supplies with a C15 inlet to a C14 power source
• Short‑run connections inside server cabinets, AV racks, or desktop setups
• Applications where connector heat resistance near the inlet is required

Key specifications

• Length: 1 m
• Current rating: 10 A
• Conductor configuration: 3 cores
• Conductor cross‑section: 1.5 mm² per core
• Connector A: IEC C14 (male)
• Connector B: IEC C15 (female)
• Color: Black
• Application: Single‑phase mains power

How to use

Ensure both the power source and the connected device are powered off before connecting the cable. Insert the C14 plug into the power outlet or power distribution unit and connect the C15 connector to the device inlet until it seats firmly. Verify the connector orientation and that the connection is secure. After making the connection, power on the source and then the device according to the equipment manufacturer's instructions. For disconnection, power down the device and power source before removing the cable.

Usage recommendations

Use the cable for short fixed runs where a 1 m length is sufficient. Avoid routing the cable near sharp edges, high‑temperature surfaces, or areas with heavy mechanical stress. Verify the device inlet requires a C15 connector and that a 10 A rating meets the equipment's power draw. Replace the cable if the outer jacket or connectors show signs of damage.
