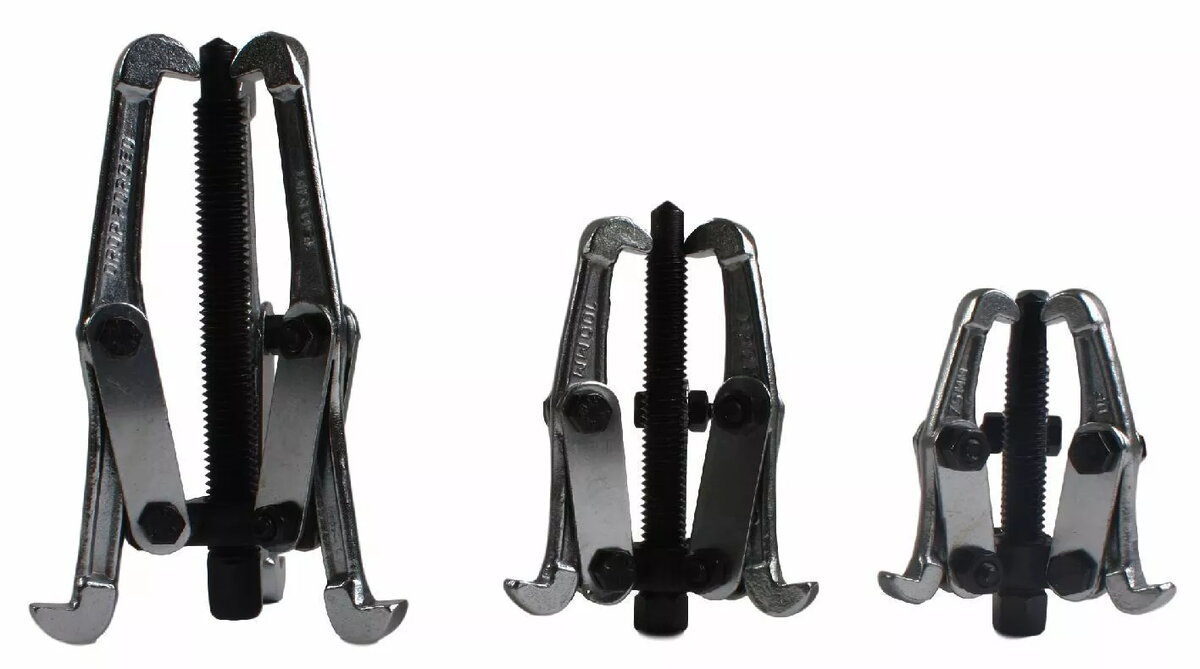

Beast 3‑Leg Puller Set 75/100/150 mm, model 8027881 — 3‑arm mechanical gear and bearing puller sizes 75, 100, 150 mm

Beast 3‑Leg Puller Set model 8027881 includes three interchangeable three‑arm pullers with reach lengths of 75 mm, 100 mm and 150 mm, designed for removing bearings, gears, pulleys, discs and rings. The mechanical three‑arm design provides even force distribution and stable gripping for controlled extraction in workshop and maintenance tasks.

Advantages

The set allows independent adjustment of each leg, enabling precise centring and balanced pulling. The reversible leg configuration supports removal of internal and external rings mounted at different depths. Three reach sizes cover a range of diameters and heights, making the set versatile for various press‑fit parts without the need to invent additional tools.

Suitable for

• Removing bearings from shafts and housings
• Extracting gears and sprockets
• Pulling pulleys and discs
• Removing internal and external rings
• Workshop maintenance and machinery servicing

Key specifications

• Model: Beast 8027881
• Set composition: three 3‑arm pullers with reaches 75 mm, 100 mm, 150 mm
• 75 mm puller max contact diameter: 70 mm; max height 20 mm; pin/shaft length 7 mm
• 100 mm puller max contact diameter: 80 mm; max height 30 mm; pin/shaft length 8 mm
• 150 mm puller max contact diameter: 90 mm; max height 50 mm; pin/shaft length 10 mm
• Intended use: bearings, gears, pulleys, discs, rings
• Brand: Beast; MPN: 8027881; EAN: 5907698027881

How to use

Select the puller with the appropriate reach for the part to be removed. Fit the legs so they grip the outer edge of the part or, if reversing the legs, engage the inner edge for internal rings. Adjust each leg independently to center the puller and ensure even contact. Turn the central forcing screw to apply steady pressure until the part is extracted. Use correct support under the component and keep the tool aligned with the axis of the shaft to avoid damage.

Usage recommendations

Before use, inspect the puller for wear or damage and ensure the legs and forcing screw move freely. Secure the workpiece and wear appropriate eye protection. Do not exceed the tool's contact limits for diameter and height as indicated for each reach. If higher force is required, consider mechanical or hydraulic extraction equipment suited to the application.
