Wi-Fi standards:
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
-
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
-
Security algorithms:
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
-
128-bit AES, WPA2, WPA2-PSK, WPA3
-
Cabling technology:
Type of cable technology performance.
-
10/100Base-T(X)
-
Form factor:
The shape or design of the product.
-
Desktop
-
Mac compatibility:
Product can be used with Apple Mac software and/or hardware.
-
Yes
-
Ethernet LAN:
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
-
Yes
-
Antenna type:
Type of antenna, also known an aerial, e.g. external, internal.
-
External
-
Antenna gain level (max):
Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
-
5 dBi
-
DC-in jack:
The socket/plug where the DC electricity supply connects to the device.
-
Yes
-
Wi-Fi data rate (max):
-
1750
-
Ethernet LAN data rates:
The different speed levels of the Ethernet LAN connection.
-
10, 100
-
Supported graphics resolutions:
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
-
1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1400 x 1050 (SXGA+), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA)
-
Supported video modes:
The video modes that can be displayed by the device.
-
720p, 1080p
-
HDMI version:
-
2.0
-

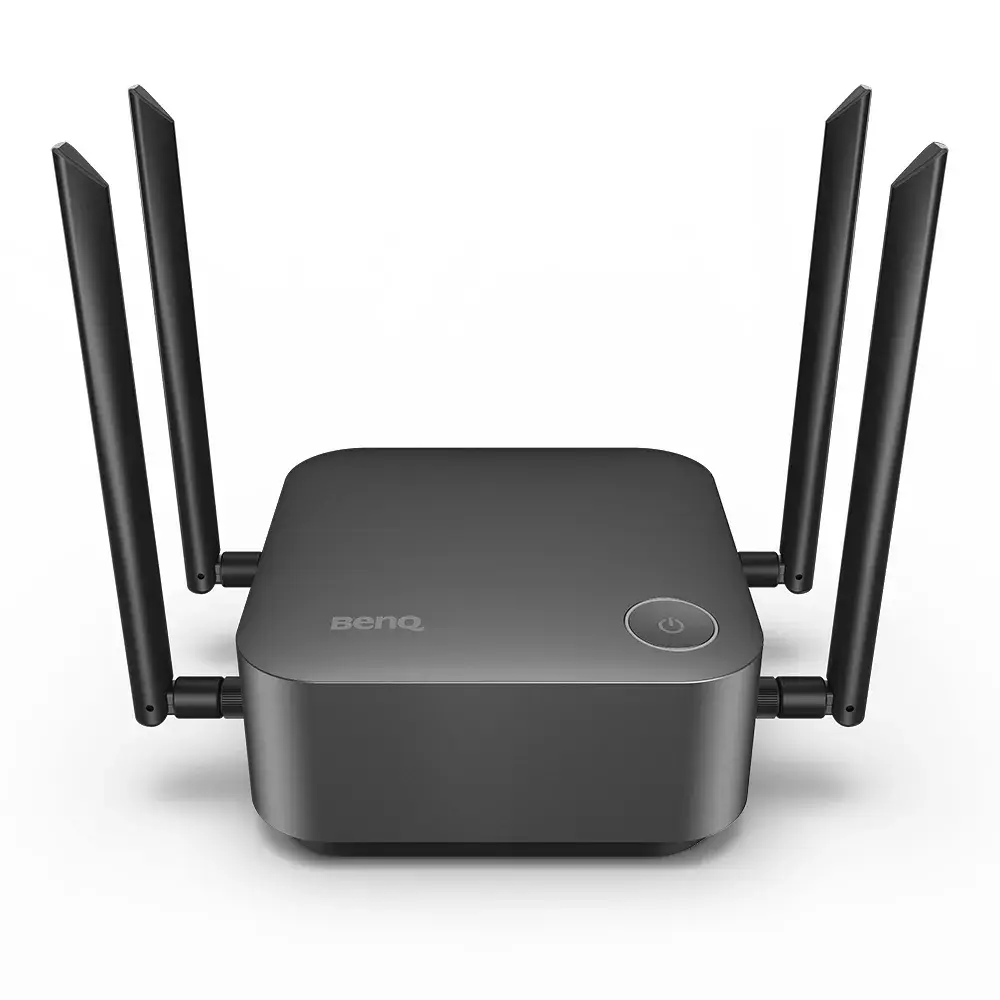

Antennas quantity:
-
4
-
Maximum frame rate:
This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).
-
60 fps
-

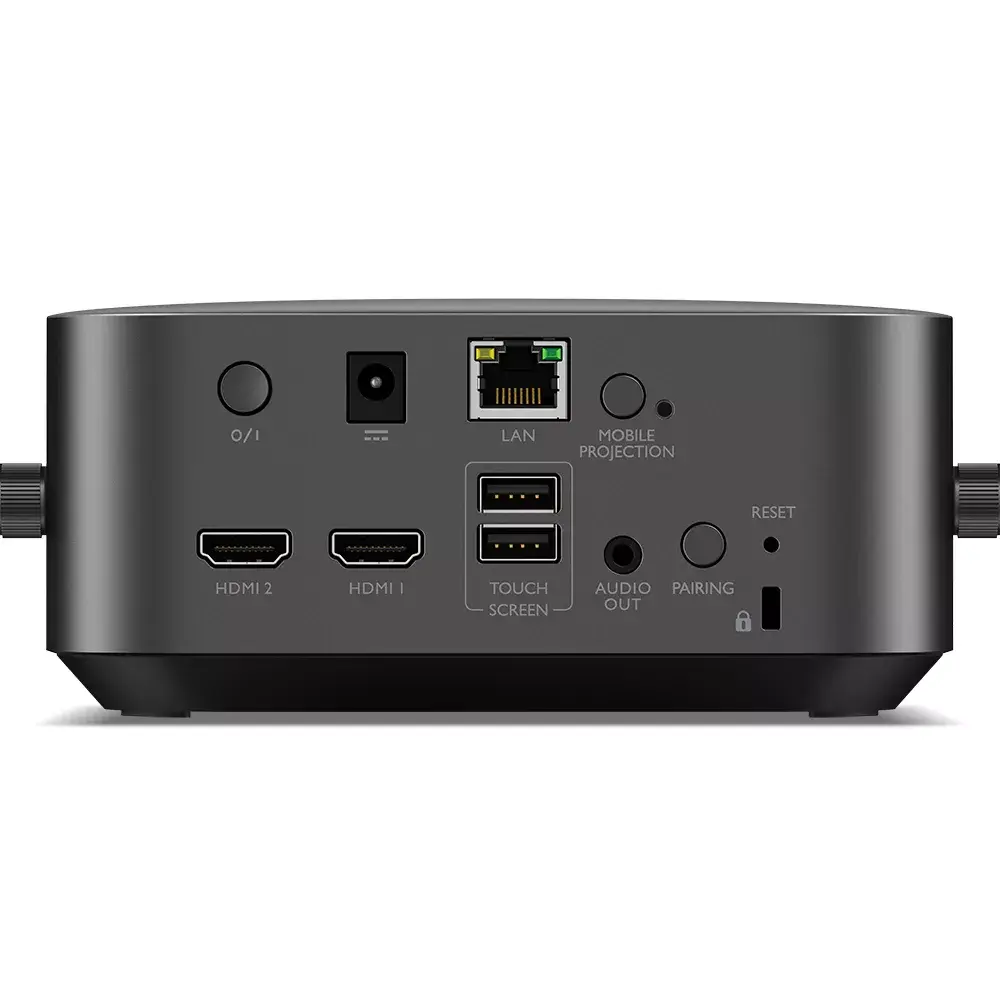

Number of HDMI outputs:
Port (socket) for HDMI output.
-
2
-
Power consumption (max):
The maximum amount of power used by the device.
-
12 W
-
Dual-band:
A dual band device can work with two different bands. Dual-band WiFi (wireless) contains two different types of wireless radios that can support connections on both 2.4 GHz and 5 GHz links.
-
Yes
-
Top Wi-Fi standard:
Connection of this device is done via Wi-Fi in a high standard.
-
Wi-Fi 6 (802.11ax)
-
Security updates end date:
-
31/12/2025
