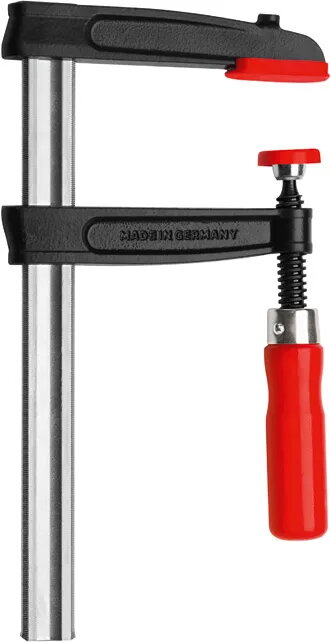

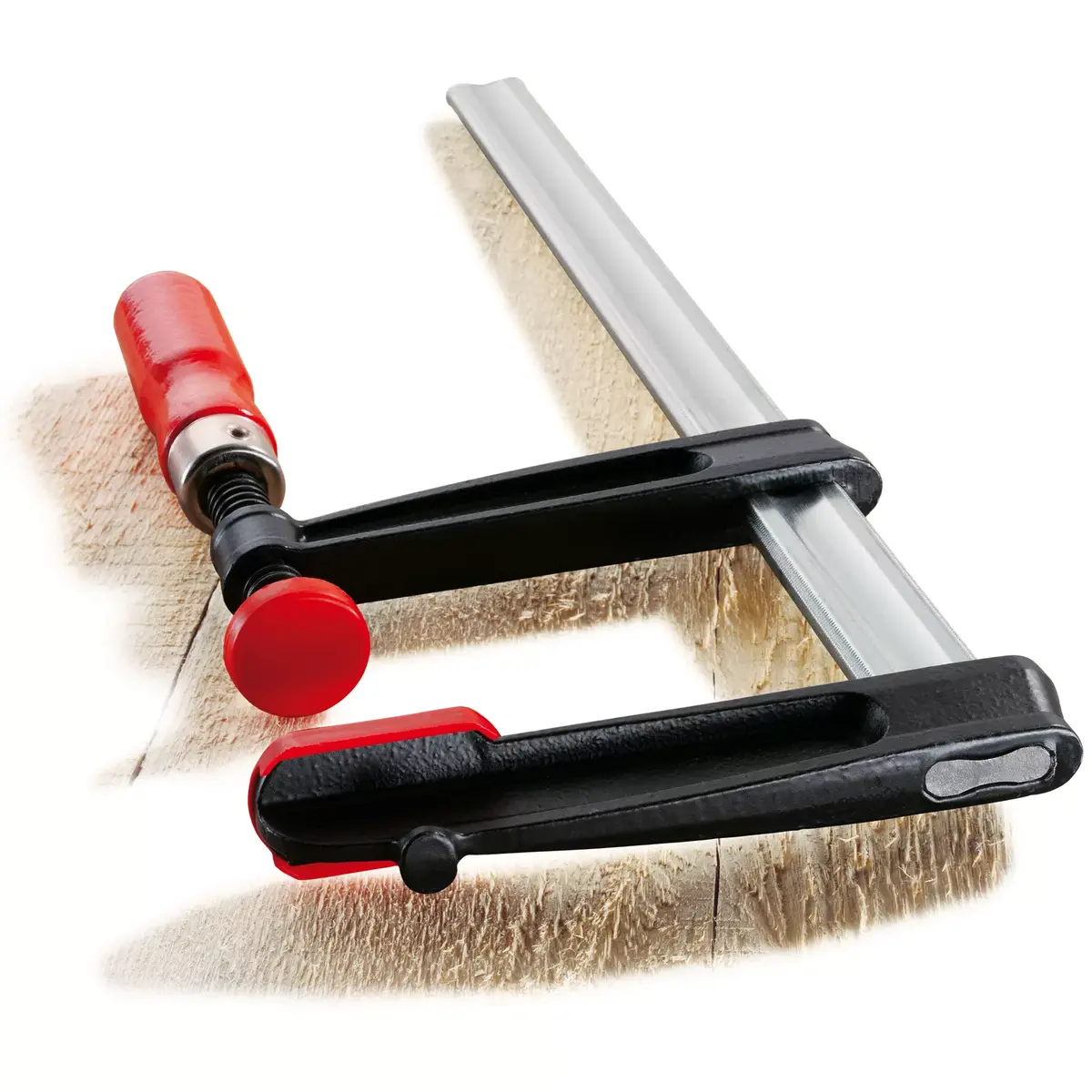

Bessey TPN10BE F-clamp 100 mm

The Bessey TPN10BE F-clamp is a professional-grade tool engineered for reliable and secure workpiece fixation. With a 100 mm clamping capacity and a 50 mm throat depth, this clamp provides the stability required for precise manual tasks. Its robust construction ensures longevity and consistent performance, making it a dependable choice for both professional workshops and home improvement projects.

Advantages

This F-clamp stands out due to its high-quality build and efficient clamping mechanism. The design allows for quick and easy adjustments, ensuring that workpieces remain firmly in place during assembly, gluing, or machining. The durable materials used in its construction provide excellent resistance to wear, while the ergonomic handle allows for comfortable and controlled application of clamping force, minimizing hand fatigue during extended use.

Suitable for

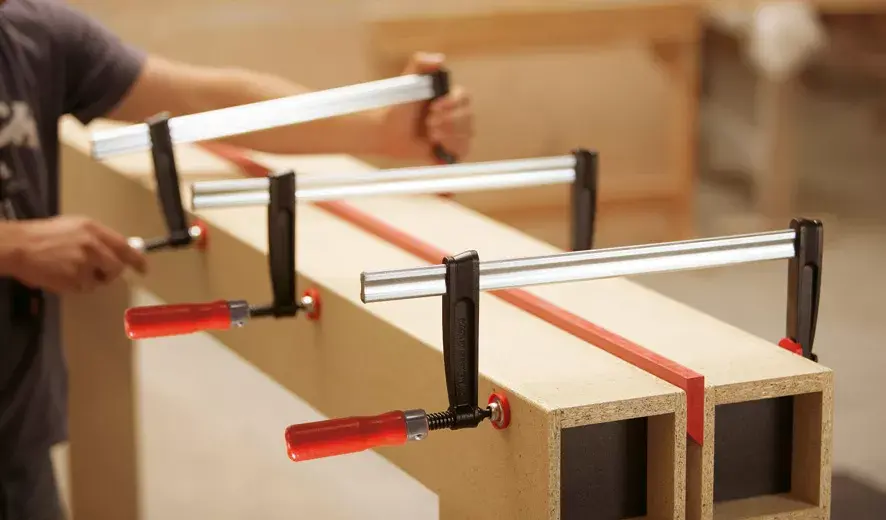

• Woodworking projects such as furniture assembly and joinery
• Metalworking tasks requiring stable fixation
• General assembly and repair work
• Gluing processes where consistent pressure is necessary

When it may not be suitable

This clamp is not intended for heavy-duty industrial applications that require clamping forces exceeding its rated capacity. It is also not suitable for tasks involving extremely large workpieces that exceed the 100 mm capacity or for high-heat environments that could compromise the integrity of the clamp components.

Key specifications

• Clamping capacity: 100 mm
• Throat depth: 50 mm
• Maximum clamping force: 560 kg
• Material: High-quality steel

How to use

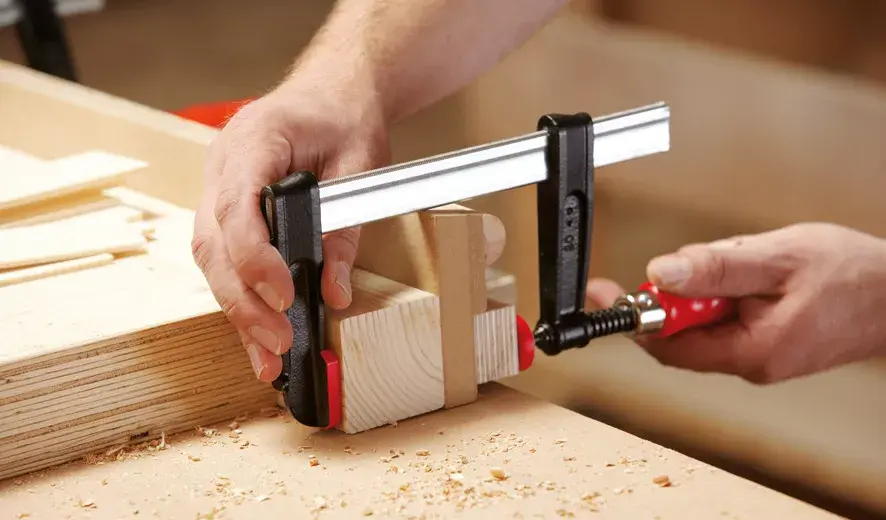

To use the Bessey TPN10BE, open the jaws by sliding the movable arm along the rail. Position the clamp over the workpiece, ensuring the pressure plates are flush against the surfaces to be joined. Tighten the spindle by turning the handle until the desired clamping pressure is achieved. Always ensure the clamp is positioned squarely to prevent slipping during the task.

What to consider before purchase

• Verify that the 100 mm clamping capacity is sufficient for your specific project dimensions
• Ensure the 50 mm throat depth meets your clearance requirements
• Assess the required clamping force to ensure it aligns with the 560 kg rating

Usage recommendations

Regularly clean the rail and spindle to ensure smooth operation. Apply a small amount of light machine oil to the spindle threads periodically to maintain ease of movement and prevent corrosion.
